COGIS - WELL SCOUT CARD

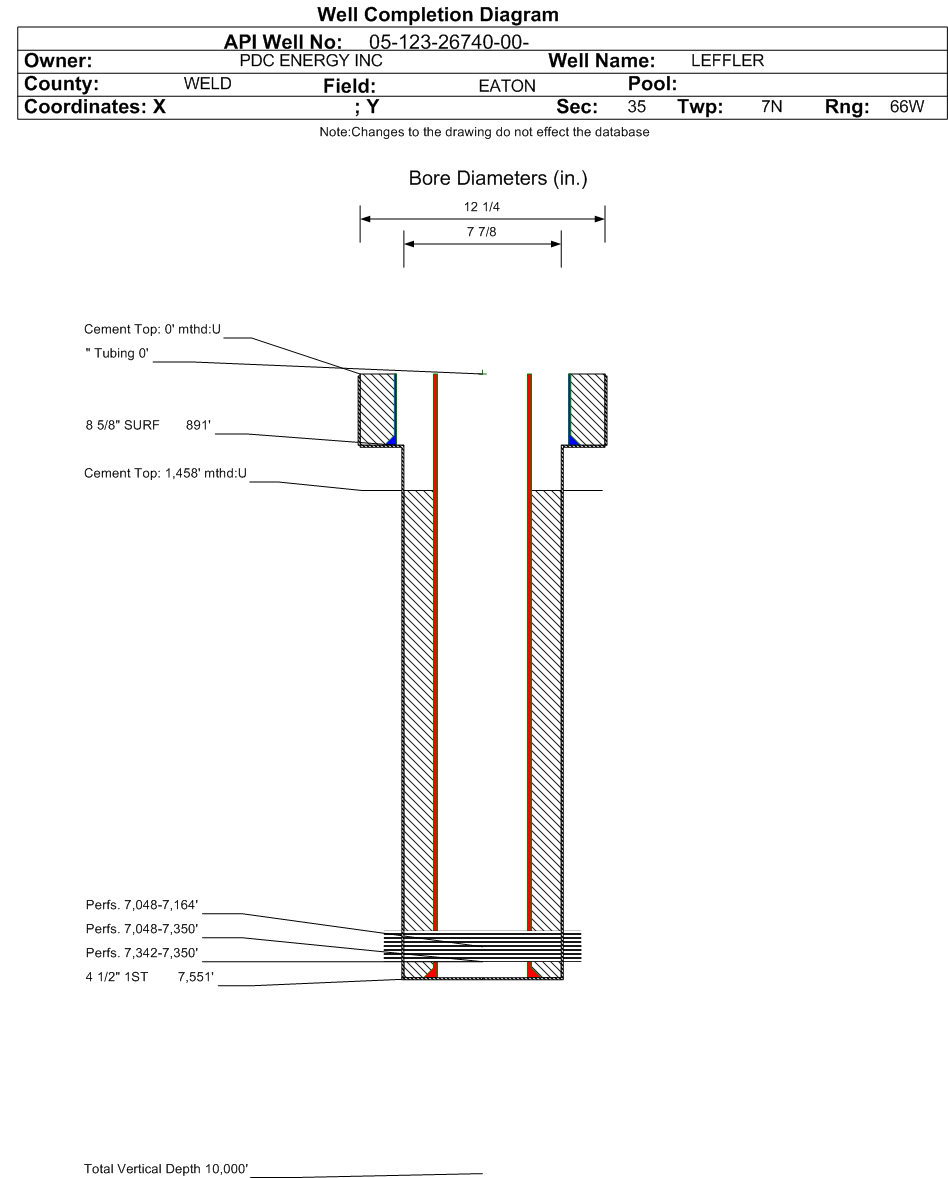

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-26740		Well Classification: OW Status: PA - 12/19/2022
Well Name/No:LEFFLER #13-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/19/2022
FacilityID:296326LocationID:310642
County:WELD #123Location:NWSW 35 7N66W 6
Field:EATON - #19350Elevation:4875 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2170FSL  838 FWLLat/Long: 40.530250 / -104.752110Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.530250 / -104.752140Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 12/19/2022             Measured TD: 7573 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 12/19/2022
Wellbore Permit
Permit #:20081845 Expiration Date:6/4/2009
Proposed Depth/Form:7960 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: W2SW4
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 80, Drill Unit: W2SW4
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: PLANNED
Cement:Sacks: 450, Top: 0 ft., Bottom: 6260 ft.
Wellbore Completed
Completion Date:12/23/2008
Spud Date:12/17/2008Spud Date Is:ACTUAL
Measured TD:7573 ft.Measured PB depth:7524 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL, CNL/CDL, DUAL INDUCTION
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 891 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 630, Top: 0 ft., Bottom: 891 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7551 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 705, Top: 1458 ft., Bottom: 7551 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7042 ft.NN
FORT HAYS7317 ft.NN
CODELL7338 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/30/2010                Interval Top: 7342 ft.    Interval Bottom: 7350 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/13/2009
Treatment Summary:FRAC'D CODELL WITH 642 BBLS OF VISTAR 20# PAD, 1932 BBLS OF VISTAR 20# FLUID SYSTEM, 218100 LBS OF 20/40 WHITE SAND AND 8020 LBS OF SB EXCEL 20/40 RESIN COATED PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7342 ft.# Of Holes:24
Interval Bottom:7350 ft.Hole Size:0.34 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 12/19/2022                Interval Top: 7048 ft.    Interval Bottom: 7350 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/23/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 35
BTU_GAS 1317
CALC_BBLS_H2O 8
CALC_BBLS_OIL 35
CALC_GOR 1229
CALC_MCF_GAS 43
CASING_PRESS 750
GRAVITY_OIL 44
MCF_GAS 43
TUBING_PRESS 650
Perforation Data:
Interval Top:7048 ft.# Of Holes:46
Interval Bottom:7350 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/30/2010                Interval Top: 7048 ft.    Interval Bottom: 7164 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/13/2009
Treatment Summary:PERF NIOBRARA "A" 7048'-7050' (4 HOLES), NIOBRARA "B" 7164'-7118' (18HOLES). FRAC'D NIOBRARA W/1000 GALS OF 15% HCL, 1521 BBLS SLICKWATER PAD, 206 BBLS OF VISTAR 18# PAD, 2442 BBLS OF VISTAR 18# FLUID SYSTEM, 238940 LBS OF 30/50 WHITE SAND CONT NEXT PAGE
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7048 ft.# Of Holes:22
Interval Bottom:7164 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/19/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
12/13/2022
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
