Wellbore #00 Wellbore Classification: GW Status: AB - 9/17/2024 Measured TD: 8285 ft. Vertical TD: 8197 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 9/17/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20073904 | Expiration Date: | 10/24/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1345 FSL 50 FEL | | Bottom Hole Location: | Sec:26 Twp: 2N 68W | Footage: 1345 FSL 50 FEL | | Proposed Depth/Form: | 8264 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407, 407-6, Unit Acreage: 160, Drill Unit: E2SE | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: , Unit Acreage: 160, Drill Unit: E2SE | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: E2SE | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: E2SE | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5240 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: 4390 ft., Bottom: 5240 ft. |
| | |

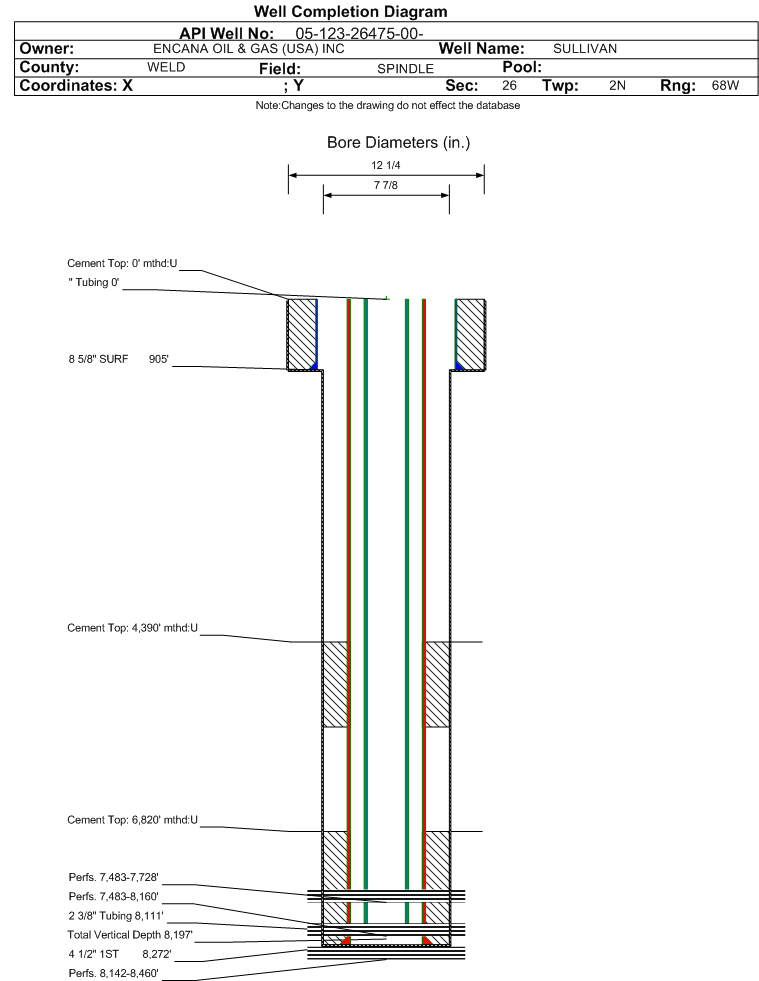

| Wellbore Completed | | Completion Date: | 10/12/2008 | | Spud Date: | 10/6/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 8285 ft. | Measured PB depth: | 8126 ft. | | True Vertical TD: | 8197 ft. | True Vertical PB depth: | 8038 ft. | | Top PZ Location: | Sec:26 Twp: 2N 68W | Footage: 1347 FSL 52 FEL | | Bottom Hole Location: | Sec:26 Twp: 2N 68W | Footage: 1347 FSL 52 FEL | | Log Types: | CBL, DUAL IND/COMP.DENSITY/COMP.NEUTRON | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 905 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 905 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8272 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 6820 ft., Bottom: 8272 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5481 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 390, Top: 4390 ft., Bottom: 5481 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4574 ft. | | N | N | | SHANNON | 5036 ft. | | N | N | | NIOBRARA | 7414 ft. | | N | N | | CODELL | 7708 ft. | | N | N | | J SAND | 8132 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 9/17/2024 Interval Top: 8142 ft. Interval Bottom: 8160 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/22/2008 | | Treatment Summary: | JSND COMPLETION. FRAC'D THE J SAND WITH 144942 GAL 20 VISTAR HYBRID CROSS LINKED GEL CONTINING 251080 SAND. 10/22/08. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | Perforation Data: | | Interval Top: | 8142 ft. | # Of Holes: | 36 | | Interval Bottom: | 8160 ft. | Hole Size: | 0.42 in. |
|
Formation CODL Formation Classification: GW Status: CM - 3/7/2024 Interval Top: 7708 ft. Interval Bottom: 7728 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7708 ft. | # Of Holes: | 80 | | Interval Bottom: | 7728 ft. | Hole Size: | 0.42 in. |
|
Formation JNBCD Formation Classification: GW Status: CM - 12/12/2008 Interval Top: 7483 ft. Interval Bottom: 8160 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/12/2008 | | Treatment Summary: | JSND-NB-CD COMMINGLE; DRILLED OUT CFP'S TO COMMINGLE THE JSND-NB-CD 12/7/08 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8111 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/12/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 104 | | BBLS_OIL | 51 | | BTU_GAS | 1253 | | CALC_BBLS_H2O | 104 | | CALC_BBLS_OIL | 51 | | CALC_GOR | 3098 | | CALC_MCF_GAS | 158 | | CASING_PRESS | 1197 | | GRAVITY_OIL | 50 | | MCF_GAS | 158 | | TUBING_PRESS | 394 |
| | Perforation Data: | | Interval Top: | 7483 ft. | # Of Holes: | 156 | | Interval Bottom: | 8160 ft. | Hole Size: | 0.42 in. |
|
Formation NB-CD Formation Classification: GW Status: AB - 9/17/2024 Interval Top: 7483 ft. Interval Bottom: 7728 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/22/2008 | | Treatment Summary: | NBBR-CDL RECOMPLETION. SET CFP @ 7820. 10/22/08. FRAC'D THE CODELL WITH 108528 GAL 24 VISTAR HYBRID CROSS LINKED GEL CONTAINING 250180 SAND. 10/22/08. SET CFP@ 7620. 10/22/08. FRAC'D THE NIOBRARA WITH 124908 GAL 18 VISTAR HYBRID CROSS LINKED GEL WITH 2500 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 100 | | BBLS_OIL | 107 | | BTU_GAS | 1212 | | CALC_BBLS_H2O | 100 | | CALC_BBLS_OIL | 107 | | CALC_GOR | 4533 | | CALC_MCF_GAS | 485 | | CASING_PRESS | 527 | | GRAVITY_OIL | 50 | | MCF_GAS | 485 |
| | Perforation Data: | | Interval Top: | 7483 ft. | # Of Holes: | 120 | | Interval Bottom: | 7728 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: GW Status: CM - 3/7/2024 Interval Top: 7483 ft. Interval Bottom: 7503 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7483 ft. | # Of Holes: | 40 | | Interval Bottom: | 7503 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 09/17/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
