COGIS - WELL SCOUT CARD

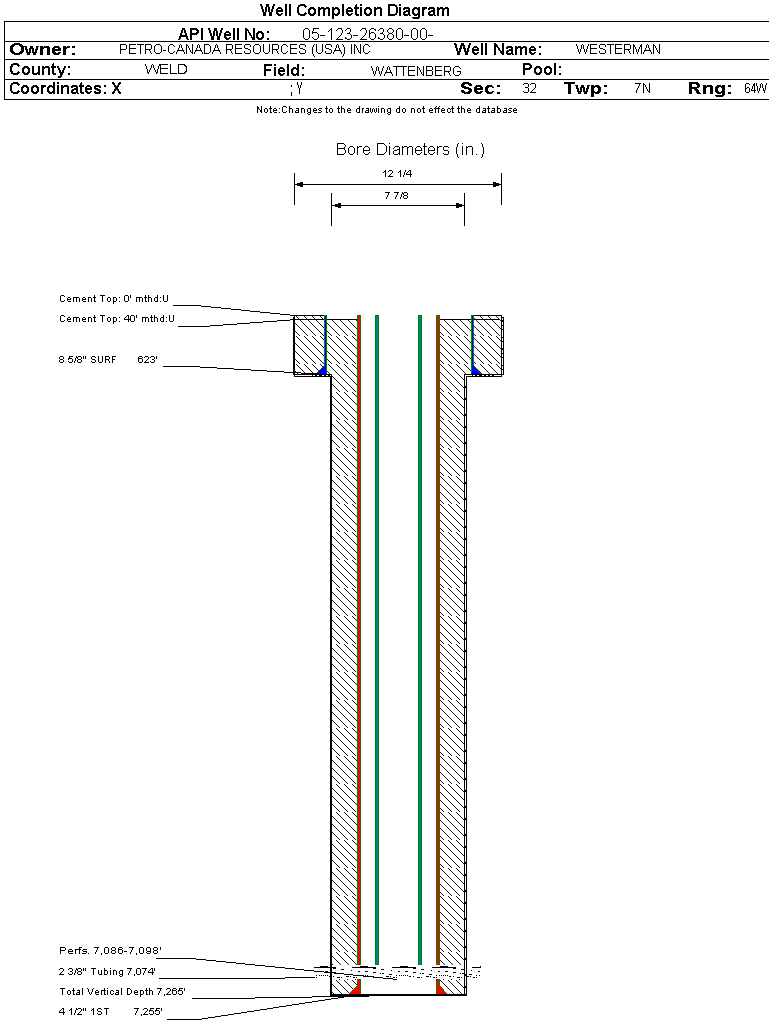

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-26380		Well Classification: OW Status: PA - 6/12/2023
Well Name/No:WESTERMAN #32-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/12/2023
FacilityID:292763LocationID:310417
County:WELD #123Location:NENE 32 7N64W 6
Field:WATTENBERG - #90750Elevation:4811 ft.
Basin:DENVER (DJ) BASIN
Planned Location:455FNL  829 FELLat/Long: 40.535330 / -104.567890Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.535340 / -104.567890Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 6/12/2023             Measured TD: 7265 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 6/12/2023
Wellbore Permit
Permit #:20074306 Expiration Date:10/2/2008
Proposed Depth/Form:7300 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E/2NE
Wellbore Completed
Completion Date:6/3/2008
Spud Date:5/29/2008Spud Date Is:ACTUAL
Measured TD:7265 ft.Measured PB depth:7235 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CEMENT BOND/GR, COMP DENS & NEUTRON/GR, DUAL IND/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 623 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 282, Top: 0 ft., Bottom: 623 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7255 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1131, Top: 40 ft., Bottom: 7255 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3768 ft.4159 ft.NN
SUSSEX4489 ft.4647 ft.NN
SHANNON5098 ft.5178 ft.NN
NIOBRARA6762 ft.7038 ft.NN
CODELL7083 ft.7099 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  AB - 6/12/2023                 Interval Top: 7086 ft.    Interval Bottom: 7098 ft.

 Completed Information for Formation CODELL
1st Production Date:7/21/2008Choke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/4/2008
Treatment Summary:FRAC'D CODELL W/325,678# 30/50 SAND AND 12,000# 12/20 SB EXCEL SAND USING 96,909 GAL 26# SUPERZ.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 2
BTU_GAS 1239
CALC_GOR 3000
CASING_PRESS 1250
GRAVITY_OIL 45
MCF_GAS 6
TUBING_PRESS 280
Perforation Data:
Interval Top:7086 ft.# Of Holes:48
Interval Bottom:7098 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/12/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
