COGIS

Facility Detail

COGIS - WELL SCOUT CARD

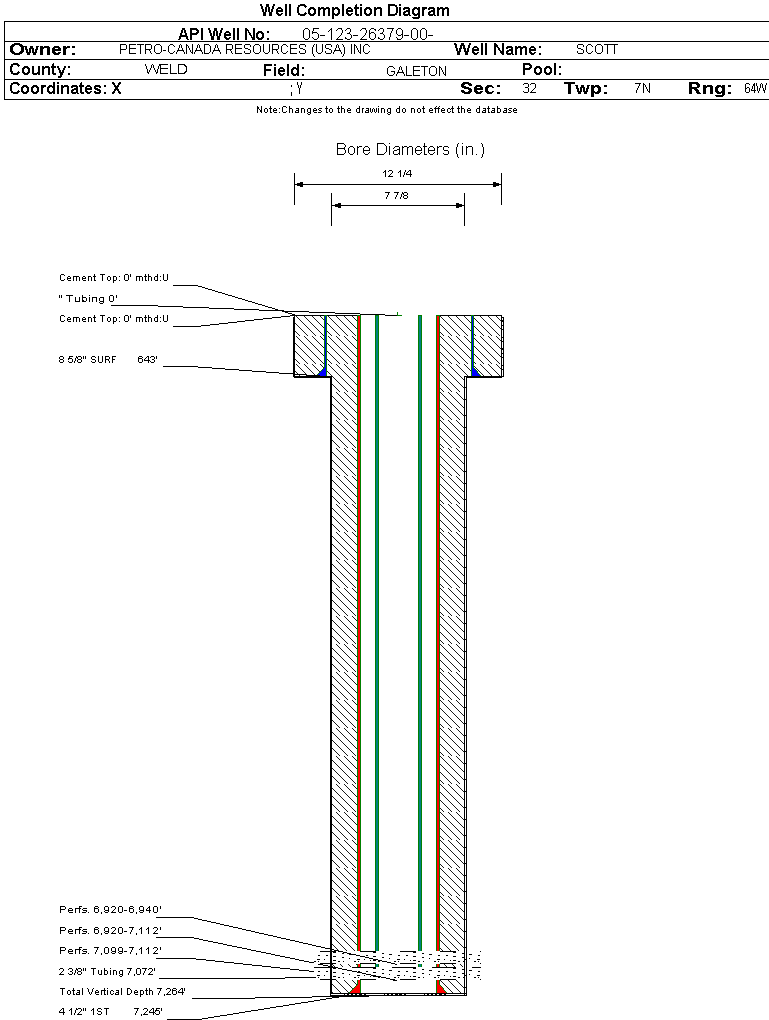

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-26379		Well Classification: OW Status: PA - 6/25/2025
Well Name/No:SCOTT #32-14
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/25/2025
FacilityID:292762LocationID:310416
County:WELD #123Location:SENE 32 7N64W 6
Field:GALETON - #27930Elevation:4819 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1745FNL  452 FELLat/Long: 40.531780 / -104.566480Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.531760 / -104.566460Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 6/25/2025             Measured TD: 7264 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 6/25/2025
Wellbore Permit
Permit #:20074307 Expiration Date:10/2/2008
Proposed Depth/Form:7300 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E/2NE
Wellbore Completed
Completion Date:5/23/2008
Spud Date:5/17/2008Spud Date Is:ACTUAL
Measured TD:7264 ft.Measured PB depth:7206 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SONIC BOND/GR, COMP DENS&NEUTRN/GR, DUAL IND./GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 643 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 245, Top: 0 ft., Bottom: 643 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7246 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1172, Top: 590 ft., Bottom: 7246 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3769 ft.4151 ft.NN
SUSSEX4506 ft.4707 ft.NN
SHANNON5121 ft.5211 ft.NN
NIOBRARA6775 ft.7051 ft.NN
CODELL7098 ft.7114 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 12/31/2024                Interval Top: 7099 ft.    Interval Bottom: 7112 ft.

 Completed Information for Formation CODELL
1st Production Date:7/1/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/13/2008
Treatment Summary:FRAC'D CODL W/248,580# 30/50 SAND USING 81,673 GALS 26# SILVERSTIM.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7099 ft.# Of Holes:52
Interval Bottom:7112 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 6/25/2025                 Interval Top: 6920 ft.    Interval Bottom: 7112 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/1/2008Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/18/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 16
BBLS_OIL 94
BTU_GAS 1239
CALC_GOR 3085
CASING_PRESS 1525
GRAVITY_OIL 45
MCF_GAS 290
TUBING_PRESS 800
Perforation Data:
Interval Top:6920 ft.# Of Holes:132
Interval Bottom:7112 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 12/31/2024                Interval Top: 6920 ft.    Interval Bottom: 6940 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/1/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/18/2008
Treatment Summary:FRAC'D NBRR W/ 244,271# 30/50 & 12,000# SB EXCEL SAND USING 92,737 GALS 26# SILVERSTIM
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6920 ft.# Of Holes:80
Interval Bottom:6940 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/25/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)568
Total Gas Produced (MCF)1146
GOR2017
GOR DeterminationBOE
Average BOE per Day2.085
Average MCFE per Day12.106

 Federal Financial Assurance  i

 Tribal Well  i No
