Wellbore #00 Wellbore Classification: OW Status: PA - 7/19/2022 Measured TD: 7740 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 7/19/2022 | | Wellbore Permit | | | Permit #: | 20073907 | Expiration Date: | 9/16/2008 | | Proposed Depth/Form: | 7625 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: 499-15 , Unit Acreage: 320, Drill Unit: N2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: N2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: W2NE | | Formation And Spacing: | Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 80, Drill Unit: W2NE | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4700 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 125, Top: 3950 ft., Bottom: 4700 ft. |
| | |

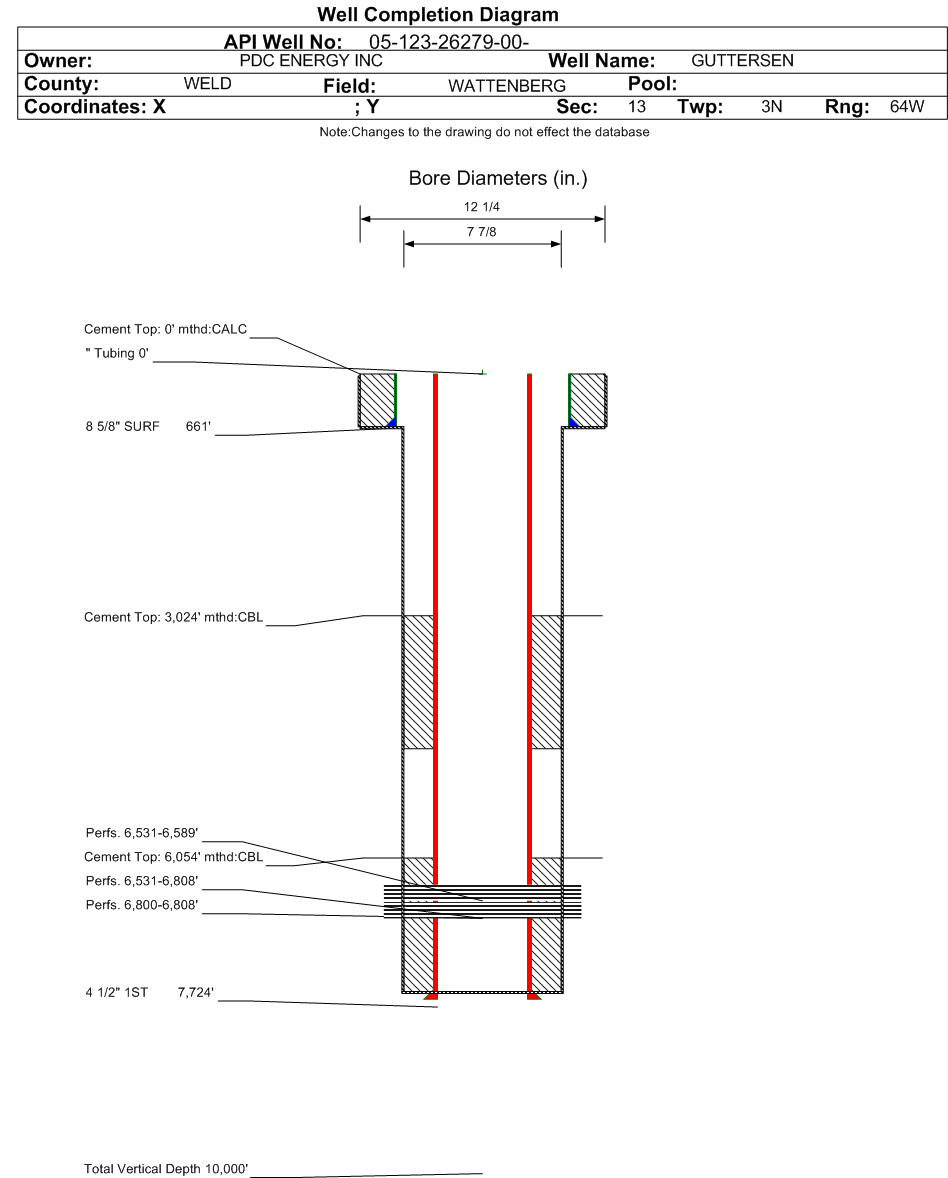

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 11/25/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7740 ft. | Measured PB depth: | 7670 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL, CNL/CDL, DUAL INDUCTION | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 661 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 470, Top: 0 ft., Bottom: 661 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7724 ft., Weight: 10.5 , Citings Type: ACTUAL | | Cement: | Sacks: 650, Top: 3024 ft., Bottom: 7724 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 3024 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 645, Top: 100 ft., Bottom: 3024 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 6527 ft. | | N | N | | FORT HAYS | 6775 ft. | | N | N | | CODELL | 6798 ft. | | N | N | | J SAND | 7258 ft. | | N | N | | DAKOTA | 7476 ft. | | N | N | | LAKOTA | 7550 ft. | | N | N |
Formation CODL Formation Classification: OW Status: CM - 5/21/2013 Interval Top: 6800 ft. Interval Bottom: 6808 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 6800 ft. | # Of Holes: | 24 | | Interval Bottom: | 6808 ft. | Hole Size: | |
|
Formation NB-CD Formation Classification: OW Status: AB - 7/19/2022 Interval Top: 6531 ft. Interval Bottom: 6808 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/28/2008 | | Treatment Summary: | NOBRARA 6586'-6592' (18 HOLES) AND CODELL 6801'-6807' (18 HOLES) FRAC'D NIOBRARA/CODELL WITH 24 BBLS OF 15% HCL, 1062 BBLS OF SLICKWATER PAD, 959 BBLS OF VISTAR 20# PAD, --SEE OPERATORS COMMENTS |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BBLS_OIL | 1 | | BTU_GAS | 1330 | | CALC_BBLS_H2O | 1 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 13 | | CALC_MCF_GAS | 13 | | CASING_PRESS | 471 | | GRAVITY_OIL | 47 | | MCF_GAS | 13 | | TUBING_PRESS | 417 |
| | Perforation Data: | | Interval Top: | 6531 ft. | # Of Holes: | 52 | | Interval Bottom: | 6808 ft. | Hole Size: | 0.34 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 5/21/2013 Interval Top: 6531 ft. Interval Bottom: 6592 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/20/2012 | Treatment End Date: | 7/20/2012 | | Treatment Summary: | Nio Bench "A" 6531-6533 Nio Bench "B" 6581-6589 | | Total fluid used in treatment (bbls): | 4065 | Max pressure during treatment (psi): | 4883 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 20.00 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 24 | Min frac gradient (psi/ft): | 0.94 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 4041 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 251050 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6531 ft. | # Of Holes: | 64 | | Interval Bottom: | 6592 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/19/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
