Wellbore #00 Wellbore Classification: OW Status: PA - 7/19/2022 Measured TD: 7714 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 7/19/2022 | | Wellbore Permit | | | Permit #: | 20073908 | Expiration Date: | 9/16/2008 | | Proposed Depth/Form: | 7625 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: 499-15 , Unit Acreage: 320, Drill Unit: N2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: N2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: W2NE | | Formation And Spacing: | Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 80, Drill Unit: W2NE | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4700 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 125, Top: 3950 ft., Bottom: 4700 ft. |
| | |

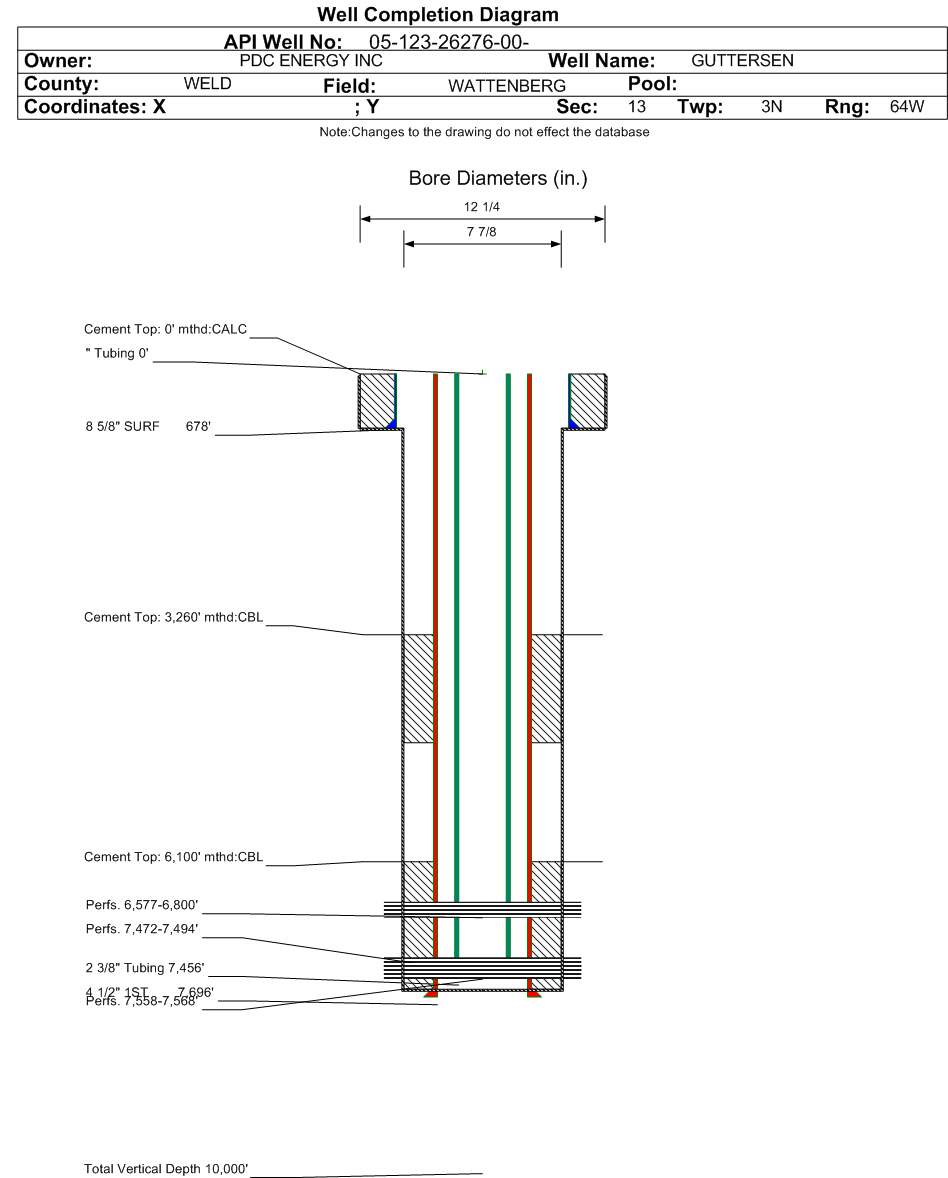

| Wellbore Completed | | Completion Date: | 12/8/2007 | | Spud Date: | 12/2/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7714 ft. | Measured PB depth: | 7662 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL, CNL/CDL, DUAL INDUCTION | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 678 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 480, Top: 0 ft., Bottom: 678 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7696 ft., Weight: 12.6 , Citings Type: ACTUAL | | Cement: | Sacks: 340, Top: 6100 ft., Bottom: 7696 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4613 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 345, Top: 3250 ft., Bottom: 4613 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 6524 ft. | | N | N | | FORT HAYS | 6768 ft. | | N | N | | CODELL | 6791 ft. | | N | N | | J SAND | 7254 ft. | | N | N | | DAKOTA | 7469 ft. | | N | N | | LAKOTA | 7545 ft. | | N | N |
Formation LKTA Formation Classification: GW Status: AB - 4/3/2008 Interval Top: 7558 ft. Interval Bottom: 7568 ft.| Completed Information for Formation LAKOTA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | LAKOTA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/8/2007 | | Treatment Summary: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation LKTA. |
| | Perforation Data: | | Interval Top: | 7558 ft. | # Of Holes: | 30 | | Interval Bottom: | 7568 ft. | Hole Size: | 0.39 in. |
|
Formation DKTA Formation Classification: GW Status: AB - 8/22/2008 Interval Top: 7472 ft. Interval Bottom: 7494 ft.| Completed Information for Formation DAKOTA | | 1st Production Date: | 4/24/2008 | Choke Size: | 0.640 in. | | Formation Name: | DAKOTA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/9/2008 | | Treatment Summary: | DAKOTA PERFS 7472'-7476' (8 HOLES), 7486'-7494' (16 HOLES) FRAC'D DAKOTA USING 271 BBLS VISTAR 20# PAD, 625 BBLS OF VISTAR 20# FLUID SYSTEM, 49460 LBS OF 20/40 WHITE SAND, 8000 LBS OF SB EXCEL 20/40 RESIN COATED PROPPANT AND 3040 LBS OF 100 MESH PROPPAN |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7456 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/1/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1005 | | CALC_MCF_GAS | 13 | | CASING_PRESS | 1100 | | MCF_GAS | 13 | | TUBING_PRESS | 800 |
| | Perforation Data: | | Interval Top: | 7472 ft. | # Of Holes: | 24 | | Interval Bottom: | 7494 ft. | Hole Size: | 0.39 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 7/19/2022 Interval Top: 6577 ft. Interval Bottom: 6800 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 8/30/2008 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/27/2008 | | Treatment Summary: | NIOBRARA 6577'-6583' (18 HOLES) AND CODELL 6794'-6800' (18 HOLES) FRAC'D NIOBRARA/CODELL WITH 24 BBLS OF 15% HCL, 1057 BBLS OF SLICKWATER PAD, 954 BBLS OF VISTAR 20# PAD, --SEE OPERATORS COMMENTS |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 6 | | BBLS_OIL | 50 | | BTU_GAS | 1341 | | CALC_BBLS_H2O | 6 | | CALC_BBLS_OIL | 50 | | CALC_GOR | 2480 | | CALC_MCF_GAS | 124 | | CASING_PRESS | 1050 | | GRAVITY_OIL | 48 | | MCF_GAS | 124 | | TUBING_PRESS | 750 |
| | Perforation Data: | | Interval Top: | 6577 ft. | # Of Holes: | 36 | | Interval Bottom: | 6800 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/19/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
