Wellbore #00 Wellbore Classification: OW Status: PA - 7/11/2022 Measured TD: 7434 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 7/11/2022 | | Wellbore Permit | | | Permit #: | 20073829 | Expiration Date: | 9/11/2008 | | Proposed Depth/Form: | 7620 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: 449-15 , Unit Acreage: 320, Drill Unit: S2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: S2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: W2SE | | Formation And Spacing: | Code: SX-SN , Formation: SUSSEX-SHANNON , Order: 493-2 , Unit Acreage: 80, Drill Unit: W2SE |
| | |

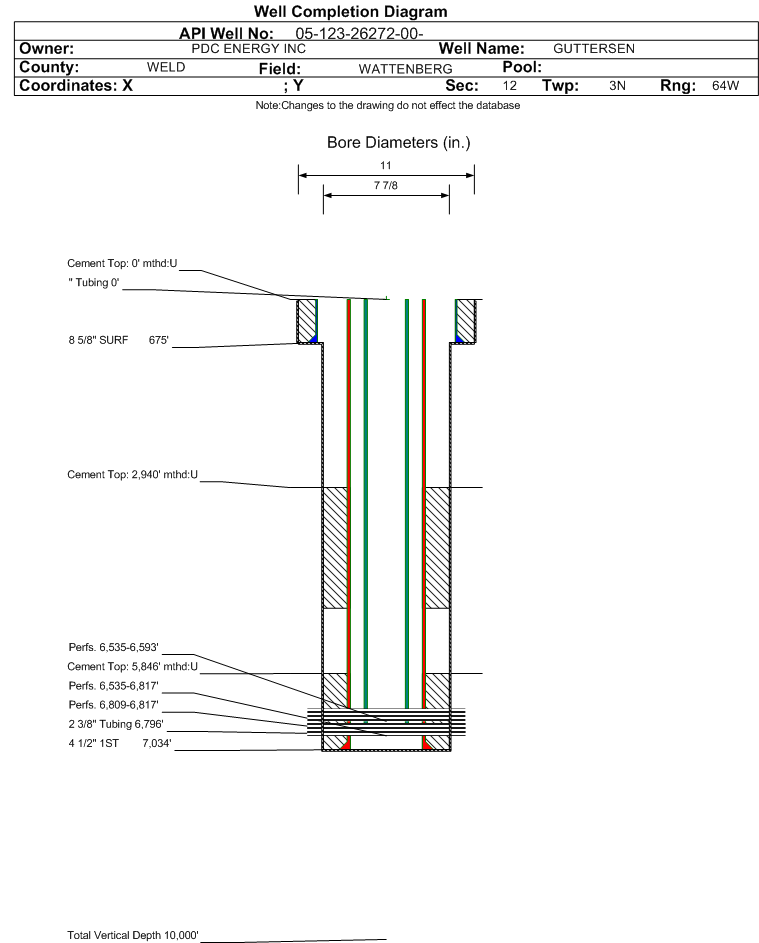

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 10/1/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7434 ft. | Measured PB depth: | 7003 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL, CNL/CDL, DUAL INDUCTION | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 685 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 380, Top: 0 ft., Bottom: 685 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7034 ft., Weight: 10.5 , Citings Type: ACTUAL | | Cement: | Sacks: 225, Top: 5846 ft., Bottom: 7034 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4826 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 425, Top: 2940 ft., Bottom: 4826 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 2900 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 630, Top: 120 ft., Bottom: 2900 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 6527 ft. | | N | N | | FORT HAYS | 6782 ft. | | N | N | | CODELL | 6806 ft. | | N | N | | J SAND | 7273 ft. | | N | N |
Formation CODL Formation Classification: OW Status: CM - 10/26/2012 Interval Top: 6809 ft. Interval Bottom: 6819 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 7/30/2012 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 12/12/2007 | | Treatment Summary: | FRAC CODL USING 643 BBL SILVERSTIM 24# PAD, 1958 BBL SILVERSTIM 24# FLUID SYSTEM, 217820 LBS 30/50 WHITE SAND AND 8000 LBS OF SB EXCEL 12/20 RESIN COATED PROPPANT. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6796 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 6809 ft. | # Of Holes: | 24 | | Interval Bottom: | 6819 ft. | Hole Size: | 0.40625 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 7/11/2022 Interval Top: 6535 ft. Interval Bottom: 6819 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 8/9/2012 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/6/2007 | | Treatment Summary: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/22/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 5 | | BBLS_OIL | 10 | | BTU_GAS | 1377 | | CALC_BBLS_H2O | 5 | | CALC_BBLS_OIL | 10 | | CALC_GOR | 400 | | CALC_MCF_GAS | 40 | | CASING_PRESS | 1340 | | GRAVITY_OIL | 45 | | MCF_GAS | 40 | | TUBING_PRESS | 968 |
| | Perforation Data: | | Interval Top: | 6535 ft. | # Of Holes: | 52 | | Interval Bottom: | 6819 ft. | Hole Size: | 0.34 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 10/26/2012 Interval Top: 6535 ft. Interval Bottom: 6593 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/9/2012 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 12/17/2007 | | Treatment Summary: | NBRR "A" 6582-6596'(42 HOLES), NBRR "B" 6684-6686'(4 HOLES) FRAC NBRR USING 1000 GAL 15% HCL, 1667 BBL SLICKWATER PAD, 143 BBL SILVERSTIM 20# PAD,2245 BBL SILVERSTIM 20# FLUID SYSTEM,238140 LBS 30/50 WHITE SND;12000 LB SB EXCEL 12/20 RESIN COATED PROP |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6796 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6535 ft. | # Of Holes: | 28 | | Interval Bottom: | 6593 ft. | Hole Size: | 0.421875 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/11/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
