Wellbore #00 Wellbore Classification: OW Status: PA - 7/11/2022 Measured TD: 7432 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 7/11/2022 | | Wellbore Permit | | | Permit #: | 20073827 | Expiration Date: | 9/11/2008 | | Proposed Depth/Form: | 7650 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: 449-15 , Unit Acreage: 320, Drill Unit: S2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: S2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: SE4 | | Formation And Spacing: | Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 160, Drill Unit: SE4 |
| | |

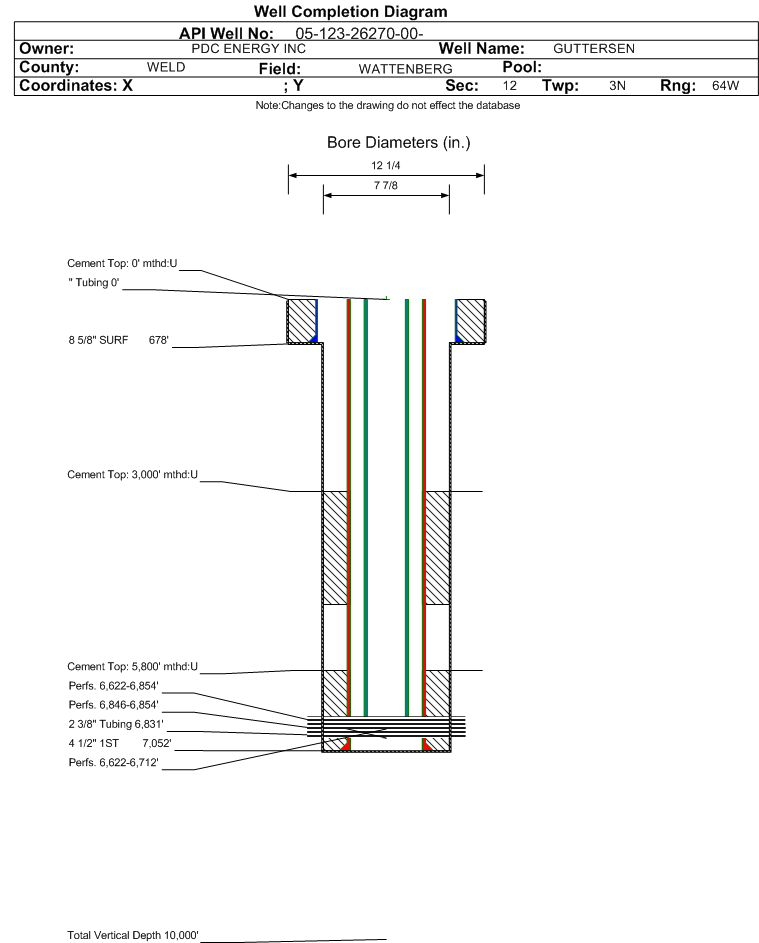

| Wellbore Completed | | Completion Date: | 10/27/2007 | | Spud Date: | 10/27/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7432 ft. | Measured PB depth: | 7025 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL, CNL/CDL, DUAL INDUCTION | | Log Types: | CBL, Triple Combo | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 687 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 480, Top: 0 ft., Bottom: 687 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7052 ft., Weight: 10.5 , Citings Type: ACTUAL | | Cement: | Sacks: 210, Top: 5800 ft., Bottom: 7052 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4767 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 370, Top: 3000 ft., Bottom: 4767 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 3000 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 648, Top: 120 ft., Bottom: 3000 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 6599 ft. | | N | N | | FORT HAYS | 6819 ft. | | N | N | | CODELL | 6842 ft. | | N | N | | J SAND | 7263 ft. | | N | N |
Formation CODL Formation Classification: OW Status: CM - 1/9/2015 Interval Top: 6846 ft. Interval Bottom: 6854 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 8/21/2012 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/30/2012 | Treatment End Date: | 7/30/2012 | | Treatment Summary: | 1 Stage Frac, 225,820 lbs of 20/40 sand, 113,148 bbls total | | Total fluid used in treatment (bbls): | 2815 | Max pressure during treatment (psi): | 7278 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 121 | Min frac gradient (psi/ft): | 0.95 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 245 | | Fresh water used in treatment (bbls): | 2694 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 225820 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 6846 ft. | # Of Holes: | 24 | | Interval Bottom: | 6854 ft. | Hole Size: | 0.40625 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 7/11/2022 Interval Top: 6622 ft. Interval Bottom: 6854 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 12/7/2007 | | Treatment Summary: | NBRR"A" 6624-6634'(10 HOLES) NBRR "B"6709-6711'(12 HOLES) & CODL 6846-6852'(12 HOLES) FRAC NB-CD W/1060 BBL SLICKWATER PAD, 847 BBL CROSSLINKED PAD, 3790 BBL VISTAR 20# FLD SYSTEM,354040 LBS 20/40 WHITE SND & 16000 LBS SUPER LC 20/40 RESIN COATED PROPPANT |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6831 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/26/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 5 | | BBLS_OIL | 8 | | BTU_GAS | 1377 | | CALC_BBLS_H2O | 5 | | CALC_BBLS_OIL | 8 | | CALC_GOR | 400 | | CALC_MCF_GAS | 30 | | CASING_PRESS | 1357 | | GRAVITY_OIL | 47 | | MCF_GAS | 30 | | TUBING_PRESS | 711 |
| | Perforation Data: | | Interval Top: | 6622 ft. | # Of Holes: | 52 | | Interval Bottom: | 6854 ft. | Hole Size: | 0.34 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 1/9/2015 Interval Top: 6622 ft. Interval Bottom: 6712 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/21/2012 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/8/2012 | Treatment End Date: | 8/8/2012 | | Treatment Summary: | perf NBRR "A" 6622-6630 (16 holes) re-perf NBRR "B" 6708-6712 (12 holes) | | Total fluid used in treatment (bbls): | 3904 | Max pressure during treatment (psi): | 4982 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 24 | Min frac gradient (psi/ft): | 1.01 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 245 | | Fresh water used in treatment (bbls): | 3880 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 252320 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6622 ft. | # Of Holes: | 28 | | Interval Bottom: | 6712 ft. | Hole Size: | 0.421875 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/11/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
