COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-25878		Well Classification: OW Status: PA - 9/5/2024
Well Name/No:PHILLIPS PC #N24-19
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/5/2024
FacilityID:295986LocationID:310086
Municipality/County:GREELEY / WELD #123Location:NWNW 24 5N67W 6
Field:WATTENBERG - #90750Elevation:4959 ft.
Basin:DENVER (DJ) BASIN
Planned Location:964FNL  1099 FWLLat/Long: 40.389520 / -104.846990Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.389520 / -104.847000Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 9/5/2024             Measured TD: 7611 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 9/5/2024
Wellbore Permit
Permit #:20092561 Expiration Date:8/31/2011
Proposed Depth/Form:7600 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: NW/4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 680 ft., Weight: 26 , Citings Type: PLANNED
Cement:Sacks: 488, Top: 0 ft., Bottom: 680 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7600 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 1109, Top: 680 ft., Bottom: 7600 ft.
Wellbore Completed
Completion Date:10/23/2010
Spud Date:10/18/2010Spud Date Is:ACTUAL
Measured TD:7611 ft.Measured PB depth:7554 ft.
True Vertical TD:True Vertical PB depth:
Log Types:GRL/CCL/VDL, DIL/GL/GRL, CDL/CNL/ML.

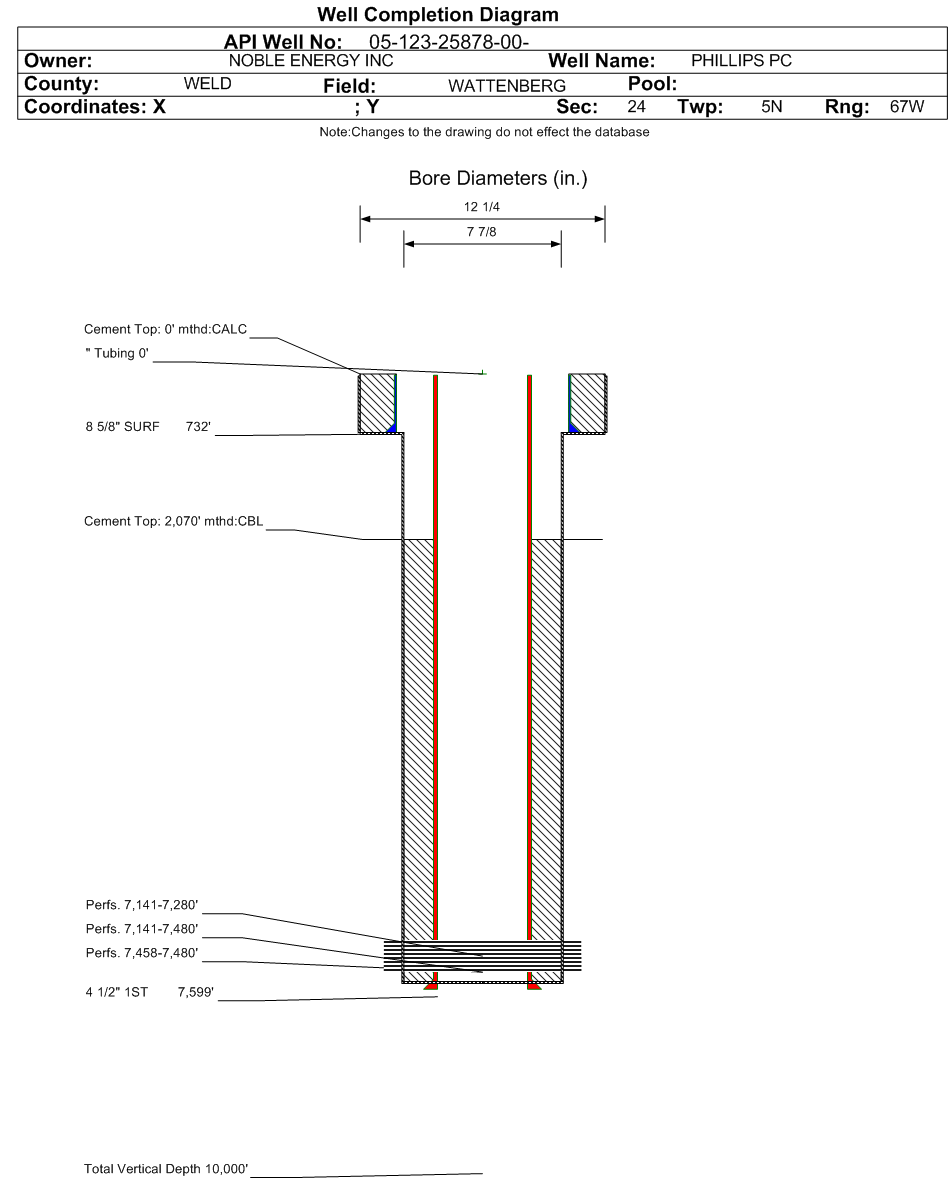

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 17 ft., Depth: 732 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 329, Top: 0 ft., Bottom: 732 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 17 ft., Depth: 7599 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 770, Top: 2002 ft., Bottom: 7599 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4513 ft.
SHANNON4895 ft.
NIOBRARA7118 ft.
FORT HAYS7436 ft.
CODELL7458 ft.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 5/28/2020                 Interval Top: 7458 ft.    Interval Bottom: 7480 ft.

 Completed Information for Formation CODELL
1st Production Date:12/1/2010Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/30/2010
Treatment Summary:Frac'd the Codell w/ 132388 gals of Silverstim and Slick Water 15% HCI with 268,780#'s of Ottawa sand. The Codell is producing through a Composite Flow through Plug. Commingle the Niobrara and Codell.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7458 ft.# Of Holes:88
Interval Bottom:7480 ft.Hole Size:0.41 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 9/5/2024                  Interval Top: 7141 ft.    Interval Bottom: 7480 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/1/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/30/2010
Treatment Summary:Frac'd the Niobrara-Codell w/ 304583 gals of Silverstim and Slick Water 15% HCI with 519,100#'s of Ottawa sand. The Codell is producing through a Composite Flow Through Plug. Commingle the Niobrara and Codell.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 14
BBLS_OIL 28
BTU_GAS 1325
CALC_BBLS_H2O 14
CALC_BBLS_OIL 28
CALC_GOR 8892
CALC_MCF_GAS 249
CASING_PRESS 400
GRAVITY_OIL 56
MCF_GAS 249
Perforation Data:
Interval Top:7141 ft.# Of Holes:136
Interval Bottom:7480 ft.Hole Size:0 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 5/28/2020                 Interval Top: 7141 ft.    Interval Bottom: 7280 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:12/1/2010Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/30/2010
Treatment Summary:Frac'd the Niobrara w/ 172195 gals of Silverstim and Slick Water with 250,320#'s of Ottawa sand. Commingle the Niobrara and Codell.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BTU_GAS 1325
GRAVITY_OIL 56
Perforation Data:
Interval Top:7141 ft.# Of Holes:48
Interval Bottom:7280 ft.Hole Size:0.73 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/05/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
