COGIS - WELL SCOUT CARD

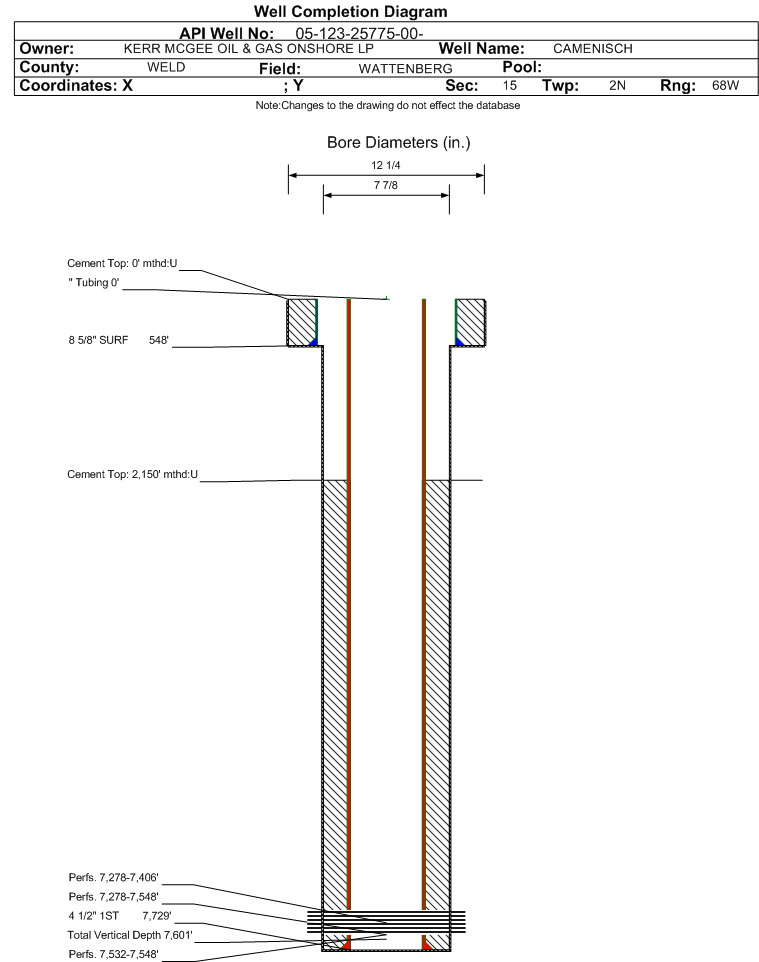

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-25775		Well Classification: GW Status: PA - 6/1/2022
Well Name/No:CAMENISCH #36-10
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/1/2022
FacilityID:295664LocationID:336355
County:WELD #123Location:NWNE 15 2N68W 6
Field:WATTENBERG - #90750Elevation:4870 ft.
Basin:DENVER (DJ) BASIN
Planned Location:472FNL  1842 FELLat/Long: 40.144810 / -104.986330Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.144797 / -104.986342Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 6/1/2022             Measured TD: 7730 ft.    Vertical TD: 7601 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 6/1/2022
Wellbore PermitDIRECTIONAL
Permit #:20081087 Expiration Date:4/16/2009
Proposed Top PZ Location:Sec:10 Twp: 2N 68W Footage: 70 FSL  2591 FWL
Bottom Hole Location:Sec:10 Twp: 2N 68W Footage: 70 FSL  2591 FWL
Proposed Depth/Form:7695 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:5/31/2008
Spud Date:5/26/2008Spud Date Is:ACTUAL
Measured TD:7730 ft.Measured PB depth:7689 ft.
True Vertical TD:7601 ft.True Vertical PB depth:7560 ft.
Top PZ Location:Sec:10 Twp: 2N 68WFootage: 70 FSL  2591 FWL
Bottom Hole Location:Sec:10 Twp: 2N 68WFootage: 70 FSL  2591 FWL
Log Types:CBL, CDL/CNL/ML, DIL/GL/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 548 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 390, Top: 0 ft., Bottom: 548 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7729 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 740, Top: 2150 ft., Bottom: 7729 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3803 ft.3862 ft.NN
SUSSEX4274 ft.4559 ft.NN
SHANNON4821 ft.4862 ft.NN
NIOBRARA7259 ft.NN
FORT HAYS7510 ft.NN
CODELL7532 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 10/24/2008                Interval Top: 7532 ft.    Interval Bottom: 7548 ft.

 Completed Information for Formation CODELL
1st Production Date:9/25/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/26/2008
Treatment Summary:201,450 GALS FLUID & 150,704# 30/50 SAND & 4,000# 20/40 R/C SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7532 ft.# Of Holes:64
Interval Bottom:7548 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 6/1/2022                  Interval Top: 7278 ft.    Interval Bottom: 7548 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:9/25/2008Choke Size:0.156 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/31/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/24/2008Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1286
CALC_BBLS_H2O 0
CALC_BBLS_OIL 23
CALC_GOR 392
CALC_MCF_GAS 9
CASING_PRESS 184
GRAVITY_OIL 51
Perforation Data:
Interval Top:7278 ft.# Of Holes:174
Interval Bottom:7548 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 10/24/2008                Interval Top: 7278 ft.    Interval Bottom: 7406 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:9/25/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/27/2008
Treatment Summary:348,666 GALS FLUID & 254,626# 30/50 SAND & 8,000# 20/40 R/C SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7278 ft.# Of Holes:110
Interval Bottom:7406 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/01/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
