COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-25727		Well Classification: GW Status: PA - 7/25/2017
Well Name/No:WATERFRONT #8-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/25/2017
FacilityID:295490LocationID:311501
County:WELD #123Location:SWNE 34 3N68W 6
Field:WATTENBERG - #90750Elevation:4939 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1473FNL  1454 FELLat/Long: 40.185620 / -104.984890Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.185628 / -104.984828Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 9/25/2013
End Date: 9/25/2013
Reported: 11/19/2013
Days to report: 55
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 7/25/2017             Measured TD: 7570 ft.    Vertical TD: 7452 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 7/25/2017
Wellbore PermitDIRECTIONAL
Permit #:20076777 Expiration Date:4/10/2009
Proposed Top PZ Location:Sec:34 Twp: 3N 68W Footage: 2093 FNL  597 FEL
Bottom Hole Location:Sec:34 Twp: 3N 68W Footage: 2093 FNL  597 FEL
Proposed Depth/Form:7952 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: T3N68W
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: T3N-R6
Wellbore Completed
Completion Date:5/22/2008
Spud Date:5/14/2008Spud Date Is:ACTUAL
Measured TD:7570 ft.Measured PB depth:7528 ft.
True Vertical TD:7452 ft.True Vertical PB depth:7410 ft.
Top PZ Location:Sec:34 Twp: 3N 68WFootage: 2093 FNL  597 FEL
Bottom Hole Location:Sec:34 Twp: 3N 68WFootage: 2093 FNL  597 FEL
Log Types:CBL, DIL/GL/GR,CDL/CNL/ML

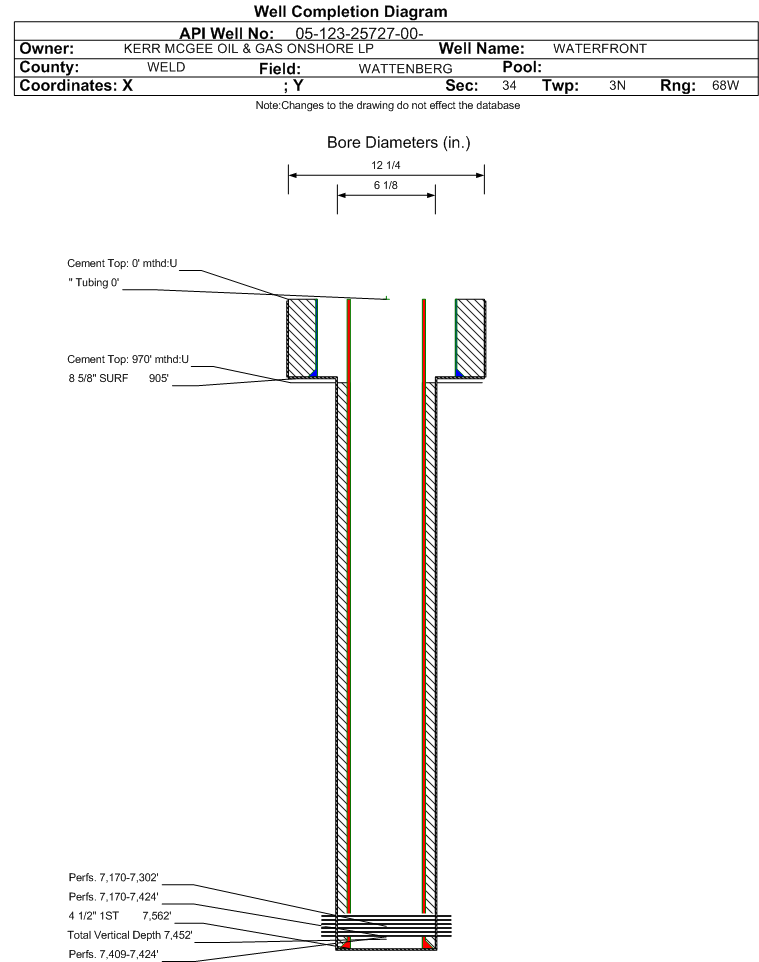

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 905 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 570, Top: 0 ft., Bottom: 905 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 7562 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 970 ft., Bottom: 7562 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3720 ft.3930 ft.NN
SUSSEX4186 ft.4370 ft.NN
SHANNON4732 ft.4770 ft.NN
NIOBRARA7148 ft.NN
FORT HAYS7387 ft.NN
CODELL7408 ft.7424 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 1/5/2009                  Interval Top: 7409 ft.    Interval Bottom: 7424 ft.

 Completed Information for Formation CODELL
1st Production Date:11/14/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/30/2008
Treatment Summary:168,095 GALS FLUID & 115,200 LBS 30/50 SAND & 4020 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7409 ft.# Of Holes:60
Interval Bottom:7424 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 7/25/2017                 Interval Top: 7170 ft.    Interval Bottom: 7424 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/14/2008Choke Size:0.156 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/22/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/5/2009Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1320
CALC_BBLS_OIL 38
CALC_GOR 1610
CALC_MCF_GAS 61
CASING_PRESS 2200
GRAVITY_OIL 52
Perforation Data:
Interval Top:7170 ft.# Of Holes:177
Interval Bottom:7424 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 1/5/2009                  Interval Top: 7170 ft.    Interval Bottom: 7302 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:11/14/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/30/2008
Treatment Summary:1500 GALS ACID & 332,344 GALS FLUID & 253,120 LBS 30/50 SAND & 8000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7170 ft.# Of Holes:117
Interval Bottom:7302 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/25/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
