COGIS - WELL SCOUT CARD

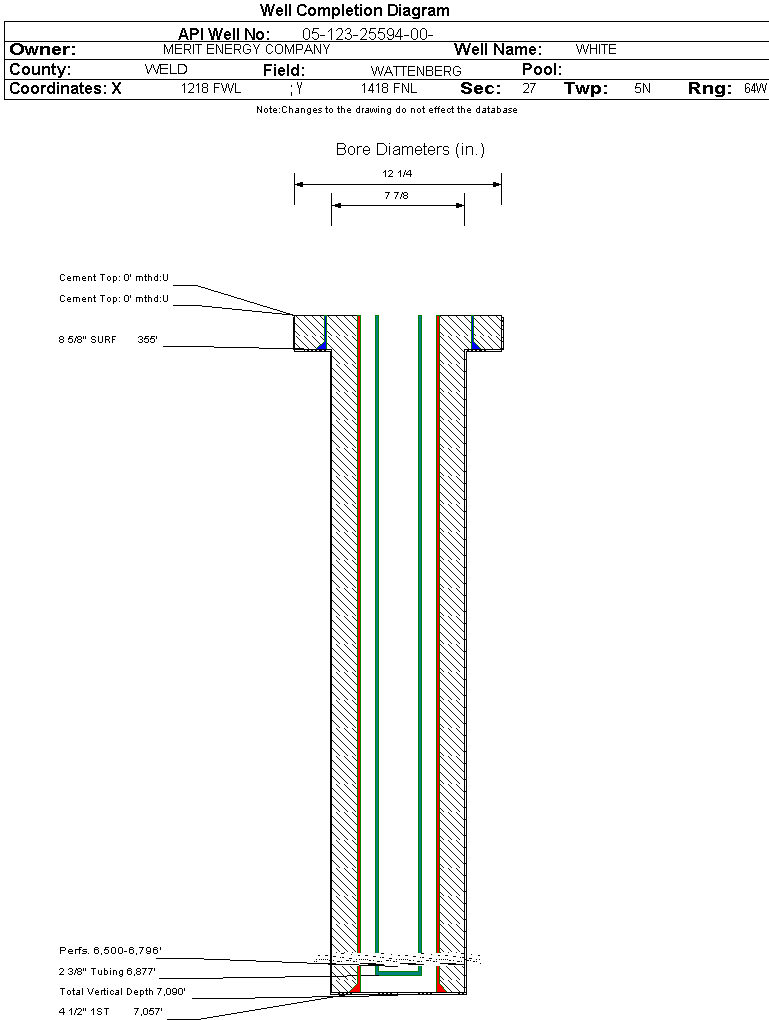

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-25594		Well Classification: GW Status: PA - 2/15/2023
Well Name/No:WHITE #5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/15/2023
FacilityID:274881LocationID:309923
County:WELD #123Location:SWNW 27 5N64W 6
Field:WATTENBERG - #90750Elevation:4606 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1418FNL  1218 FWLLat/Long: 40.373536 / -104.540924Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.373333 / -104.541111Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 2/15/2023             Measured TD: 7090 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 2/15/2023
Wellbore PermitDRIFTED
Permit #:20042685 Expiration Date:11/25/2005
Proposed Depth/Form:7100 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:1/9/2005
Spud Date:12/21/2004Spud Date Is:ACTUAL
Measured TD:7090 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:CR/CBL/CNL/DIL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 355 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 330, Top: 0 ft., Bottom: 355 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7057 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 525, Top: 0 ft., Bottom: 7057 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4200 ft.NN
SHANNON4876 ft.NN
NIOBRARA6490 ft.NN
FORT HAYS6759 ft.NN
CODELL6783 ft.NN

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 2/15/2023                 Interval Top: 6500 ft.    Interval Bottom: 6796 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/9/2005
Treatment Summary:FRAC CODEL (6784-6796') W/ 119,765 GALS FRAC FLUID + 219,100# 20/40 SAND & 12,000# ACFRAC 12/20# SAND. FRAC NB (6500-6690') W/ 172,386 GALS FRAC FLUID + 238,040# 20/40 SAND & 12,000# ACFRAC 12/20# SAND
Tubing Size:2.375 in.Tubing Setting Depth:6877 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/5/2005Test Method:
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 24
CALC_GOR 7833
CASING_PRESS 720
MCF_GAS 188
TUBING_PRESS 200
Perforation Data:
Interval Top:6500 ft.# Of Holes:288
Interval Bottom:6796 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/15/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
12/13/2022
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
