COGIS - WELL SCOUT CARD

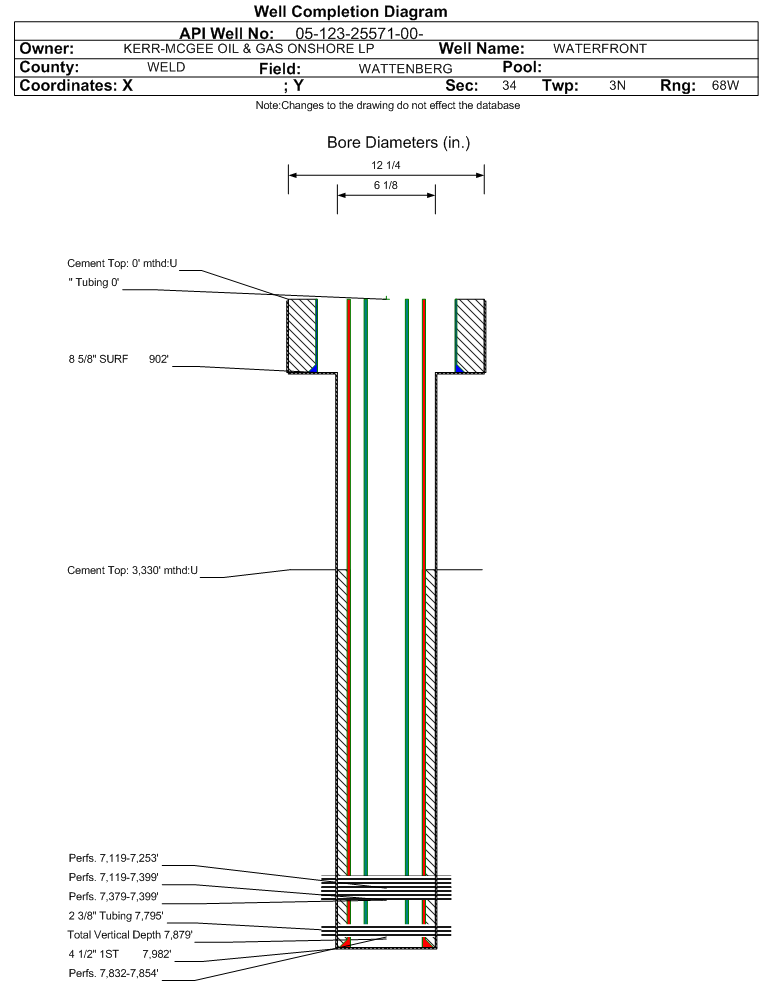

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-25571		Well Classification: GW Status: PA - 12/22/2023
Well Name/No:WATERFRONT #9-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/22/2023
FacilityID:294875LocationID:336508
Municipality/County:MEAD / WELD #123Location:SESE 34 3N68W 6
Field:WATTENBERG - #90750Elevation:4835 ft.
Planned Location:814FSL  733 FELLat/Long: 40.177222 / -104.982108Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.177213 / -104.982119Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 12/22/2023             Measured TD: 7989 ft.    Vertical TD: 7879 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 12/22/2023
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:10/12/2012
Proposed Top PZ Location:Sec:34 Twp: 3N 68W Footage: 1893 FSL  700 FEL
Bottom Hole Location:Sec:34 Twp: 3N 68W Footage: 1893 FSL  700 FEL
Proposed Depth/Form:7950 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: 3N68W
Wellbore Completed
Completion Date:7/27/2008
Spud Date:7/22/2008Spud Date Is:ACTUAL
Measured TD:7989 ft.Measured PB depth:7952 ft.
True Vertical TD:7879 ft.True Vertical PB depth:7842 ft.
Top PZ Location:Sec:34 Twp: 3N 68WFootage: 1893 FSL  700 FEL
Bottom Hole Location:Sec:34 Twp: 3N 68WFootage: 1893 FSL  700 FEL
Log Types:CBL; P/E; CNLD-AILC-ML
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 902 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 560, Top: 0 ft., Bottom: 902 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 7982 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 3336 ft., Bottom: 7982 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3780 ft.3880 ft.NN
SUSSEX4112 ft.4280 ft.NN
SHANNON4630 ft.4668 ft.NN
NIOBRARA7108 ft.NN
FORT HAYS7356 ft.NN
CODELL7378 ft.NN
J SAND7819 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 12/22/2023                Interval Top: 7832 ft.    Interval Bottom: 7854 ft.

 Completed Information for Formation J SAND
1st Production Date:11/15/2010Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/8/2010
Treatment Summary:Frac JSND w/ 163,548 gal SW & 115,640# 40/70 sand & 4,000# SB Excel.
Tubing Size:2.375 in.Tubing Setting Depth:7795 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/18/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 6
BTU_GAS 1304
CALC_BBLS_OIL 6
CALC_GOR 21833
CALC_MCF_GAS 131
CASING_PRESS 1217
GRAVITY_OIL 53
MCF_GAS 131
TUBING_PRESS 1102
Perforation Data:
Interval Top:7832 ft.# Of Holes:66
Interval Bottom:7854 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/22/2010                Interval Top: 7379 ft.    Interval Bottom: 7399 ft.

 Completed Information for Formation CODELL
1st Production Date:12/11/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/14/2009
Treatment Summary:168,725 GAL FLUID & 115,700 LBS 30/50 SAND & 4,000 LBS 20/40 R/C SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7379 ft.# Of Holes:60
Interval Bottom:7399 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/22/2023                Interval Top: 7119 ft.    Interval Bottom: 7399 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/11/2008Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/15/2010
Treatment Summary:NBRR Perf 7119-7253 Holes 64 Size 0.42 CODL Perf 7379-7399 Holes 60 Size 0.38 No additional treatment.
Formation Treatment
Treatment Date:2/5/2009
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7795 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/18/2010Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 6
BTU_GAS 1304
CALC_BBLS_H2O 0
CALC_BBLS_OIL 6
CALC_GOR 21833
CALC_MCF_GAS 131
CASING_PRESS 1217
GRAVITY_OIL 53
MCF_GAS 131
TUBING_PRESS 1102
Perforation Data:
Interval Top:7119 ft.# Of Holes:124
Interval Bottom:7399 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/22/2010                Interval Top: 7119 ft.    Interval Bottom: 7253 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:12/11/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/21/2008
Treatment Summary:1000 GAL ACID & 171,721 GAL FLUID & 252,540 LBS 30/50 SAND & 4,000 LBS 20/40 R/C SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7119 ft.# Of Holes:64
Interval Bottom:7253 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/22/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
