COGIS - WELL SCOUT CARD

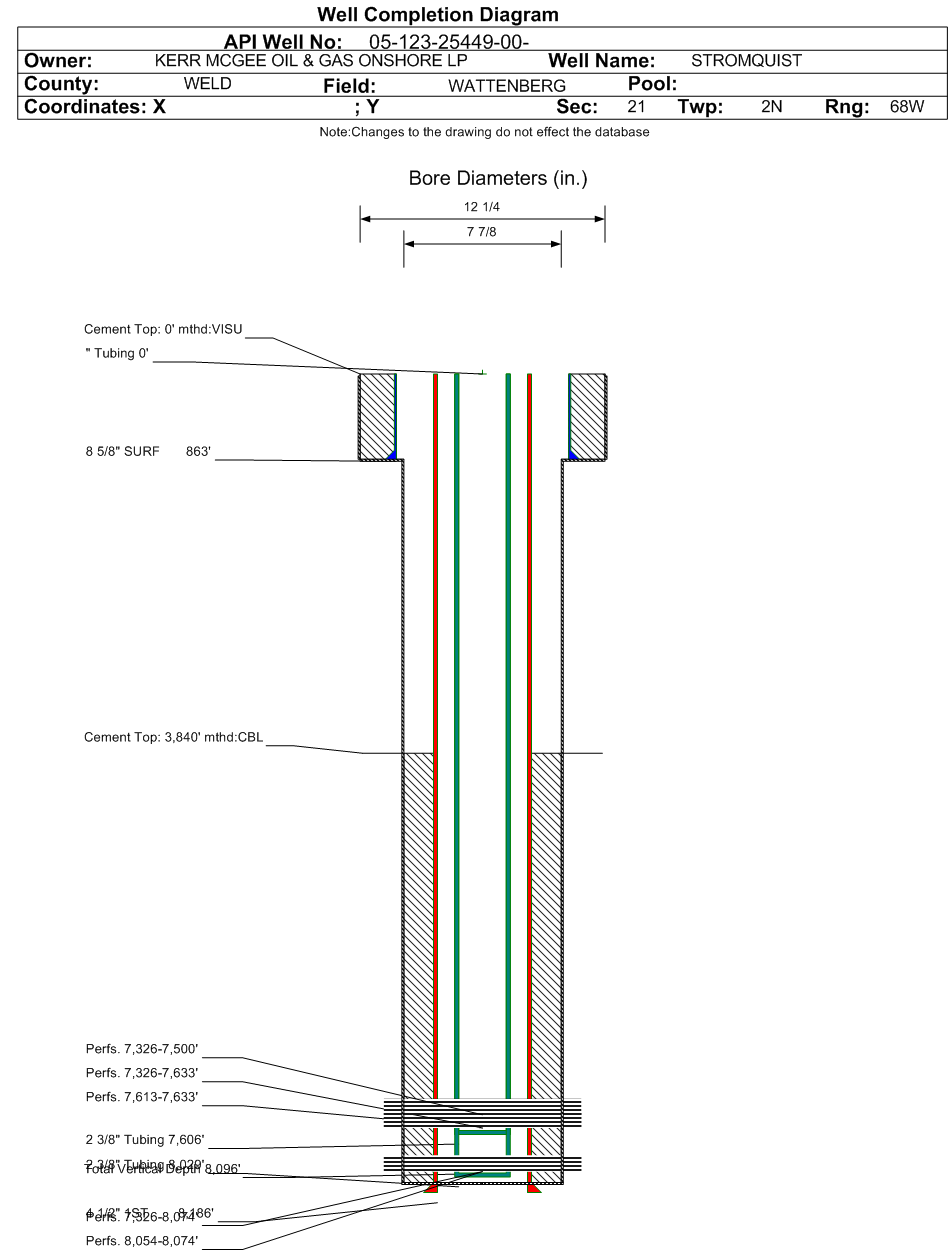

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-25449		Well Classification: OW Status: PA - 7/16/2020
Well Name/No:STROMQUIST #23-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/16/2020
FacilityID:320LocationID:336292
Municipality/County:FREDERICK / WELD #123Location:SESW 21 2N68W 6
Field:WATTENBERG - #90750Elevation:4896 ft.
Basin:DENVER (DJ) BASIN
Planned Location:636FSL  2052 FWLLat/Long: 40.118600 / -105.010400Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.118600 / -105.010400Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 4/7/2011
End Date: 4/7/2011
Reported: 5/25/2011
Prior to rule 205A.b.(2)(A)
Days to report: 48
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 7/16/2020             Measured TD: 8195 ft.    Vertical TD: 8096 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 7/16/2020
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:9/1/2012
Proposed Top PZ Location:Sec:21 Twp: 2N 68W Footage: 1398 FSL  2587 FWL
Bottom Hole Location:Sec:21 Twp: 2N 68W Footage: 1411 FSL  2589 FWL
Proposed Depth/Form:8195 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 863 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 540, Top: 0 ft., Bottom: 863 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8186 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 690, Top: 3840 ft., Bottom: 8186 ft.
Wellbore Completed
Completion Date:12/13/2008
Spud Date:12/8/2008Spud Date Is:ACTUAL
Measured TD:8195 ft.Measured PB depth:8156 ft.
True Vertical TD:8096 ft.True Vertical PB depth:8057 ft.
Top PZ Location:Sec:21 Twp: 2N 68WFootage: 1398 FSL  2587 FWL
Bottom Hole Location:Sec:21 Twp: 2N 68WFootage: 1398 FSL  2587 FWL
Log Types:CBL, P/E AILC-CNLD-ML
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 863 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 540, Top: 0 ft., Bottom: 863 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8186 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 690, Top: 3840 ft., Bottom: 8186 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3900 ft.4100 ft.NN
SUSSEX4450 ft.4650 ft.NN
SHANNON4918 ft.4942 ft.NN
TEEPEE BUTTES5064 ft.5068 ft.NN
NIOBRARA7327 ft.NN
FORT HAYS7592 ft.NN
CODELL7612 ft.NN
J SAND8042 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  AB - 7/16/2020                 Interval Top: 8054 ft.    Interval Bottom: 8074 ft.

 Completed Information for Formation J SAND
1st Production Date:4/15/2011Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/7/2011
Treatment Summary:Frac J-Sand down 4-1/2" Csg w/ 153,678 gal Slickwater w/ 115,040# 30/50, 4,000# SuperLC.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:8054 ft.# Of Holes:60
Interval Bottom:8074 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 6/10/2011                 Interval Top: 7613 ft.    Interval Bottom: 7633 ft.

 Completed Information for Formation CODELL
1st Production Date:2/4/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/16/2009
Treatment Summary:169,056 GALS FLUID & 116,520# 30/50 SAND & 4,000# 20/40 R/C
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7613 ft.# Of Holes:60
Interval Bottom:7633 ft.Hole Size:0.38 in.

Formation JNBCD                   Formation Classification:  OW                   Status:  CM - 4/27/2011                 Interval Top: 7326 ft.    Interval Bottom: 8074 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:4/15/2011Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/7/2011
Treatment Summary:JSND RECOMPLETE
Tubing Size:2.375 in.Tubing Setting Depth:8029 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/27/2011Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 10
BTU_GAS 1240
CALC_BBLS_OIL 10
CALC_GOR 31000
CALC_MCF_GAS 131
CASING_PRESS 1218
GRAVITY_OIL 52
MCF_GAS 131
TUBING_PRESS 927
Perforation Data:
Interval Top:7326 ft.# Of Holes:240
Interval Bottom:8074 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 7/16/2020                 Interval Top: 7326 ft.    Interval Bottom: 7633 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/4/2009Choke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/13/2008
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7606 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/23/2009Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1313
CALC_BBLS_H2O 0
CALC_BBLS_OIL 32
CALC_GOR 2750
CALC_MCF_GAS 88
CASING_PRESS 1900
GRAVITY_OIL 51
TUBING_PRESS 1800
Perforation Data:
Interval Top:7326 ft.# Of Holes:180
Interval Bottom:7633 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 6/10/2011                 Interval Top: 7326 ft.    Interval Bottom: 7500 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:2/4/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/19/2009
Treatment Summary:1500 GALS ACID & 252,937 GALS FLUID & 376,760# 20/40 SAND & 8,000# 20/40 R/C
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7326 ft.# Of Holes:120
Interval Bottom:7500 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/16/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
