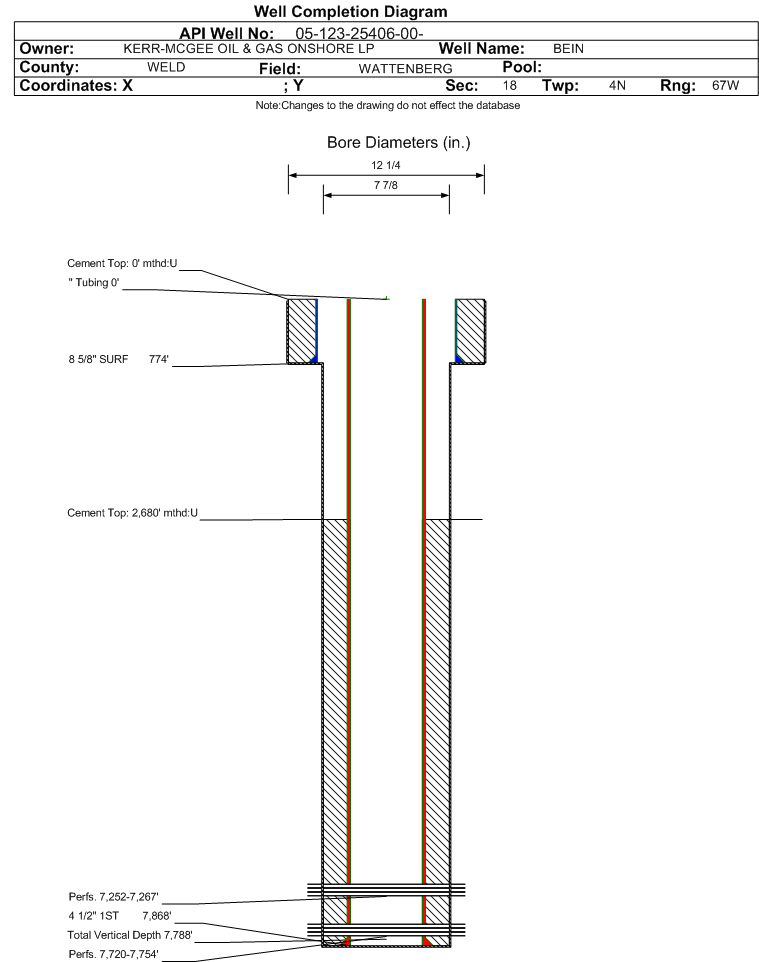

Wellbore #00 Wellbore Classification: GW Status: AB - 1/6/2025 Measured TD: 7880 ft. Vertical TD: 7788 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 1/6/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/10/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2570 FNL 1415 FWL | | Bottom Hole Location: | Sec:18 Twp: 4N 67W | Footage: 2570 FNL 1415 FWL | | Proposed Depth/Form: | 7880 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: GWA | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: S/2NW4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 774 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 350, Top: 0 ft., Bottom: 774 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7880 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 740, Top: 2680 ft., Bottom: 7880 ft. |
| | |
| Wellbore Completed | | Completion Date: | 3/10/2008 | | Spud Date: | 3/4/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 7880 ft. | Measured PB depth: | 7838 ft. | | True Vertical TD: | 7788 ft. | True Vertical PB depth: | 7746 ft. | | Top PZ Location: | Sec:18 Twp: 4N 67W | Footage: 2596 FNL 1424 FWL | | Bottom Hole Location: | Sec:18 Twp: 4N 67W | Footage: 2596 FNL 1424 FWL | | Log Types: | CBL, PNN/GR/CCL, P/E AILC-CNLD-ML | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 773 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 0 ft., Bottom: 773 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7868 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 740, Top: 2600 ft., Bottom: 7868 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2379 ft. | | N | N | | PARKMAN | 3574 ft. | | N | N | | NIOBRARA | 6929 ft. | | N | N | | FORT HAYS | 7231 ft. | | N | N | | CODELL | 7250 ft. | | N | N | | J SAND | 7714 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 1/6/2025 Interval Top: 7720 ft. Interval Bottom: 7754 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 1/28/2010 | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/22/2010 | | Treatment Summary: | 162918 GAL SW WITH 115400# 30/50 & 4000# 20/40 SUPER LC. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/5/2010 | Test Method: | FLOWING | | Hours Tested: | | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1320 | | GRAVITY_OIL | 50 |
| | Perforation Data: | | Interval Top: | 7720 ft. | # Of Holes: | 46 | | Interval Bottom: | 7754 ft. | Hole Size: | 0.38 in. |
|
Formation CODL Formation Classification: GW Status: AB - 1/6/2025 Interval Top: 7252 ft. Interval Bottom: 7267 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 1/28/2010 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/31/2008 | | Treatment Summary: | NO ADDITIONAL TREATMENT. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/5/2010 | Test Method: | FLOWING | | Hours Tested: | | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1320 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 12 | | CALC_GOR | 27250 | | CALC_MCF_GAS | 327 | | CASING_PRESS | 865 | | GRAVITY_OIL | 50 |
| | Perforation Data: | | Interval Top: | 7252 ft. | # Of Holes: | 60 | | Interval Bottom: | 7267 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 01/06/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
