Wellbore #00 Wellbore Classification: GW Status: PA - 8/4/2021 Measured TD: 8906 ft. Vertical TD: 8667 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 8/4/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20087544 | Expiration Date: | 12/22/2009 | | Proposed Top PZ Location: | Sec:28 Twp: 1N 68W | Footage: 2008 FSL 1926 FWL | | Bottom Hole Location: | Sec:28 Twp: 1N 68W | Footage: 2008 FSL 1926 FWL | | Proposed Depth/Form: | 8956 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E2SW | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: S2 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 80, Drill Unit: E2SW |
| | |

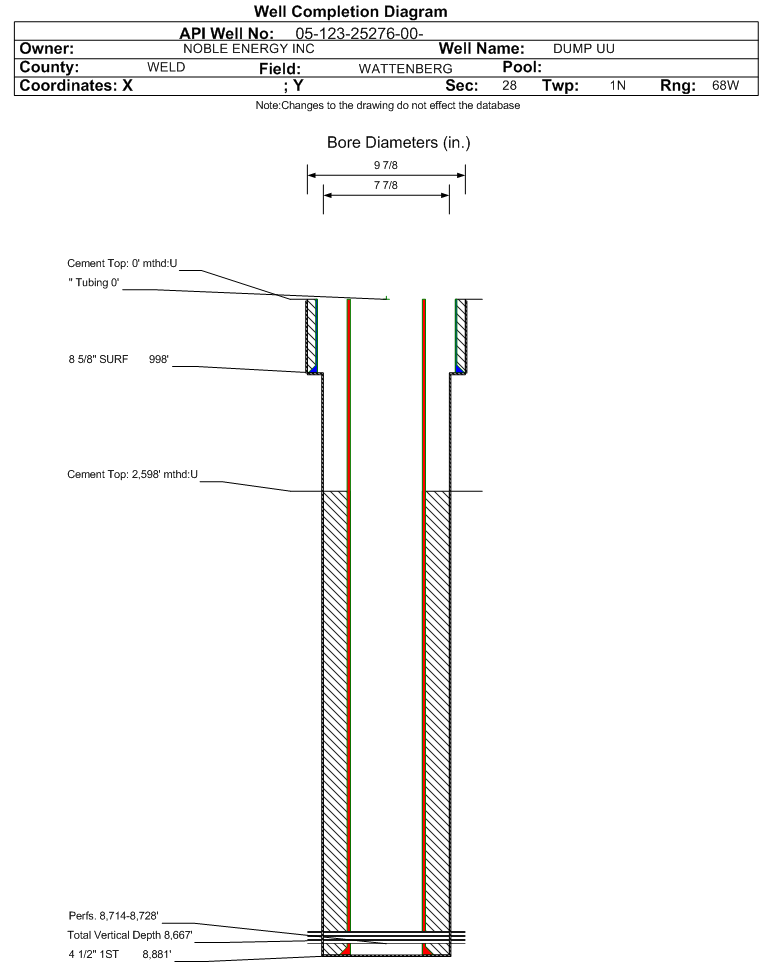

| Wellbore Completed | | Completion Date: | 4/12/2009 | | Spud Date: | 4/4/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 8906 ft. | Measured PB depth: | 8864 ft. | | True Vertical TD: | 8667 ft. | True Vertical PB depth: | 8625 ft. | | Top PZ Location: | Sec:28 Twp: 1N 68W | Footage: 2008 FSL 1926 FWL | | Bottom Hole Location: | Sec:28 Twp: 1N 68W | Footage: 2008 FSL 1926 FWL | | Log Types: | CBL/GR/CCL, ACRL/SDDSNL | | Casing: | String Type: SURF, Hole Size: 9.875 in., Size: 8.625 in., Top: 0 ft., Depth: 998 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 285, Top: 0 ft., Bottom: 998 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8881 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1010, Top: 2440 ft., Bottom: 8881 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 7863 ft. | | N | N | | FORT HAYS | 8274 ft. | | N | N | | CODELL | 8298 ft. | | N | N | | GREENHORN | 8417 ft. | | N | N | | J SAND | 8714 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 8/4/2021 Interval Top: 8714 ft. Interval Bottom: 8728 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 8/6/2009 | Choke Size: | 0.500 in. | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/29/2009 | | Treatment Summary: | FRAC'D J-SAND W/ 181356 GALS OF SILVERSTIM AND SLICK WATER WITH 334000 #'S OF OTTAWA SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/11/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 7 | | BTU_GAS | 1188 | | CALC_BBLS_H2O | 7 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 17 | | CASING_PRESS | 850 | | GRAVITY_OIL | 77 | | MCF_GAS | 17 | | TUBING_PRESS | 711 |
| | Perforation Data: | | Interval Top: | 8714 ft. | # Of Holes: | 56 | | Interval Bottom: | 8728 ft. | Hole Size: | 0.41 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 08/04/2021 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
