COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-25187		Well Classification: GW Status: PA - 3/15/2017
Well Name/No:MOSER H #28-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/15/2017
FacilityID:290639LocationID:306747
County:WELD #123Location:NENE 28 3N65W 6
Field:WATTENBERG - #90750Elevation:4810 ft.
Basin:DENVER (DJ) BASIN
Planned Location:472FNL  506 FELLat/Long: 40.202390 / -104.661070Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.202378 / -104.661047Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

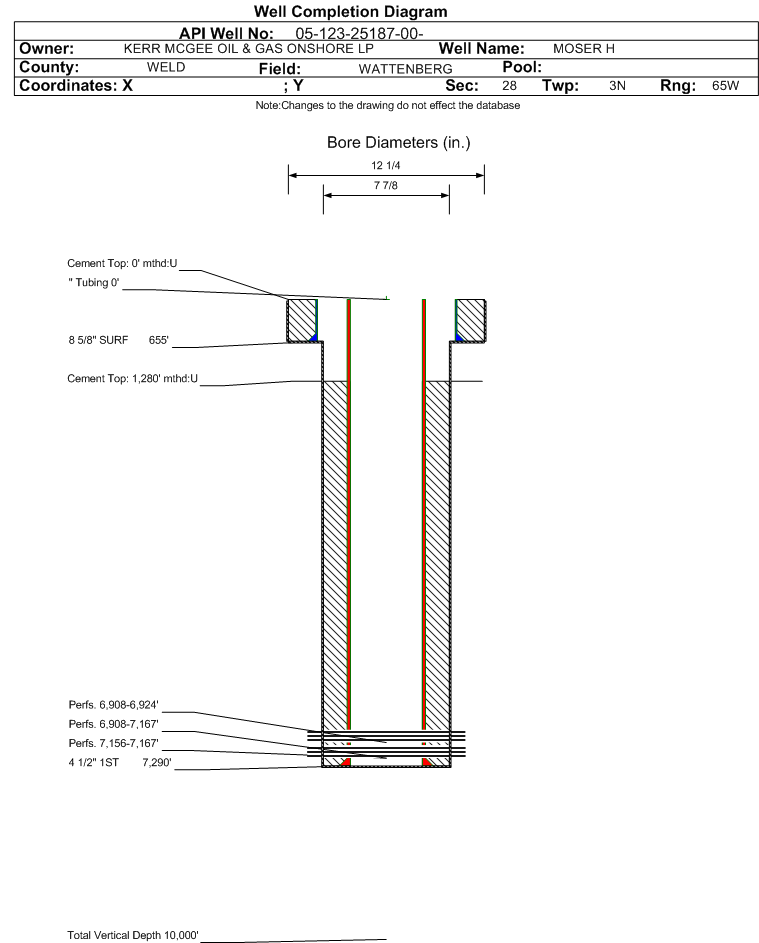

Wellbore #00             Wellbore Classification: GW             Status: PA - 3/15/2017             Measured TD: 7302 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 3/15/2017
Wellbore PermitDRIFTED
Permit #:20071929 Expiration Date:5/17/2008
Proposed Depth/Form:7425 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: N2NE4
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 80, Drill Unit: N2NE4
Wellbore Completed
Completion Date:7/31/2007
Spud Date:7/28/2007Spud Date Is:ACTUAL
Measured TD:7302 ft.Measured PB depth:7273 ft.
True Vertical TD:True Vertical PB depth:
Log Types:GR/CCL/CBL, CDL/CNL/ML, DIL/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 655 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 304, Top: 0 ft., Bottom: 655 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7290 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1010, Top: 1280 ft., Bottom: 7290 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3812 ft.NN
SUSSEX4374 ft.NN
SHANNON5176 ft.NN
NIOBRARA6863 ft.NN
FORT HAYS7132 ft.NN
CODELL7156 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 10/11/2007                Interval Top: 7156 ft.    Interval Bottom: 7167 ft.

 Completed Information for Formation CODELL
1st Production Date:9/27/2007Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/23/2007
Treatment Summary:CODELL WAS FRAC'D WITH 127,974 GAL OF SILVERSTIM W/32# GEL LOADING AND 270,620# 20/40 OTTAWA SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7156 ft.# Of Holes:44
Interval Bottom:7167 ft.Hole Size:0.41 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 3/15/2017                 Interval Top: 6908 ft.    Interval Bottom: 7167 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:7/31/2007
Treatment Summary:COMMINGLED CODELL/NIOBRARA; CODELL PRODUCING THROUGH CAST IRON FRAC PLUG.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 45
BTU_GAS 1246
CALC_GOR 8000
CASING_PRESS 900
GRAVITY_OIL 49
MCF_GAS 360
TUBING_PRESS 900
Perforation Data:
Interval Top:6908 ft.# Of Holes:108
Interval Bottom:7167 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 10/11/2007                Interval Top: 6908 ft.    Interval Bottom: 6924 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:9/27/2007Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/23/2007
Treatment Summary:NIOBRARA WAS FRAC'D W/70,056 GAL SLICKWATER, 99,750 GAL SILVERSTIM W/28# GEL LOADING AND 251,400 #30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6908 ft.# Of Holes:64
Interval Bottom:6924 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/15/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
