COGIS - WELL SCOUT CARD

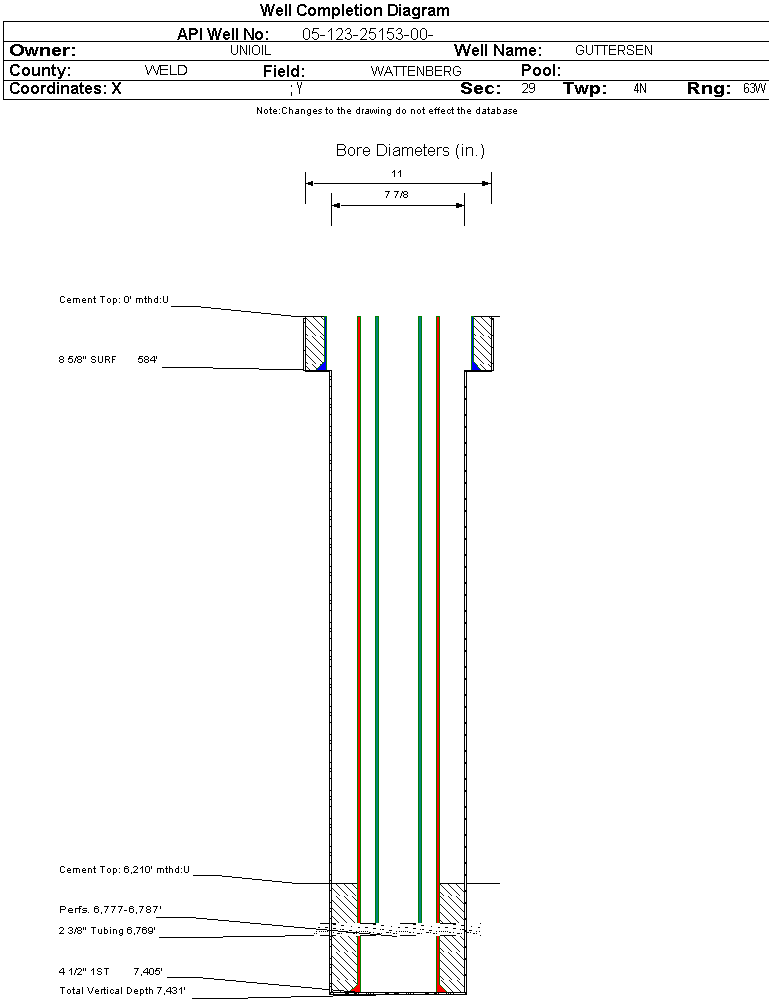

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-25153		Well Classification: OW Status: PA - 12/20/2022
Well Name/No:GUTTERSEN #14-29U
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/20/2022
FacilityID:290595LocationID:306716
County:WELD #123Location:SWSW 29 4N63W 6
Field:WATTENBERG - #90750Elevation:4770 ft.
Basin:DENVER (DJ) BASIN
Planned Location:656FSL  652 FWLLat/Long: 40.277830 / -104.468720Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.277860 / -104.468750Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 12/20/2022             Measured TD: 7431 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 12/20/2022
Wellbore PermitDRIFTED
Permit #:20071799 Expiration Date:5/14/2008
Proposed Depth/Form:7410 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: W2SW
Wellbore Completed
Completion Date:6/23/2007
Spud Date:6/17/2007Spud Date Is:ACTUAL
Measured TD:7431 ft.Measured PB depth:7368 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL, CNL/CDL, DUAL INDUCTION
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 584 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 410, Top: 0 ft., Bottom: 584 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7405 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 6210 ft., Bottom: 7405 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6609 ft.NN
CODELL6674 ft.NN
FORT HAYS6750 ft.NN
J SAND7236 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  AB - 12/20/2022                Interval Top: 6777 ft.    Interval Bottom: 6787 ft.

 Completed Information for Formation CODELL
1st Production Date:8/21/2007Choke Size:0.000 in.
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/10/2007
Treatment Summary:FRAC'D CODELL WITH 2597 BBLS OF VISTAR 20# FLUID SYSTEM, 220.660 LBS OF 20/40 WHITE SAND AND 8000 LBS OF SUPER LC 20/40 RESIN COATED PROPPANT.
Tubing Size:2.375 in.Tubing Setting Depth:6769 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/1/2007Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 62
BTU_GAS 1297
CALC_BBLS_H2O 15
CALC_BBLS_OIL 62
CALC_GOR 823
CALC_MCF_GAS 51
CASING_PRESS 875
GRAVITY_OIL 47
MCF_GAS 51
TUBING_PRESS 625
Perforation Data:
Interval Top:6777 ft.# Of Holes:30
Interval Bottom:6787 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/20/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
