COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-25141		Well Classification: OW Status: PA - 8/8/2017
Well Name/No:CARMA #34-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/8/2017
FacilityID:290565LocationID:336155
Municipality/County:FIRESTONE / WELD #123Location:SWSW 35 3N68W 6
Field:WATTENBERG - #90750Elevation:4825 ft.
Planned Location:988FSL  966 FWLLat/Long: 40.177720 / -104.976060Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.177730 / -104.976040Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 8/8/2017             Measured TD: 7690 ft.    Vertical TD: 7476 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 8/8/2017
Wellbore PermitDIRECTIONAL
Permit #:20083247 Expiration Date:5/15/2009
Proposed Top PZ Location:Sec:35 Twp: 3N 68W Footage: 54 FSL  33 FWL
Bottom Hole Location:Sec:35 Twp: 3N 68W Footage: 54 FSL  33 FWL
Proposed Depth/Form:7665 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:6/1/2008
Spud Date:5/27/2008Spud Date Is:ACTUAL
Measured TD:7690 ft.Measured PB depth:7645 ft.
True Vertical TD:7476 ft.True Vertical PB depth:7431 ft.
Top PZ Location:Sec:35 Twp: 3N 68WFootage: 54 FSL  33 FWL
Bottom Hole Location:Sec:35 Twp: 3N 68WFootage: 54 FSL  33 FWL
Log Types:CBL, P/E AILC-CNLD-ML

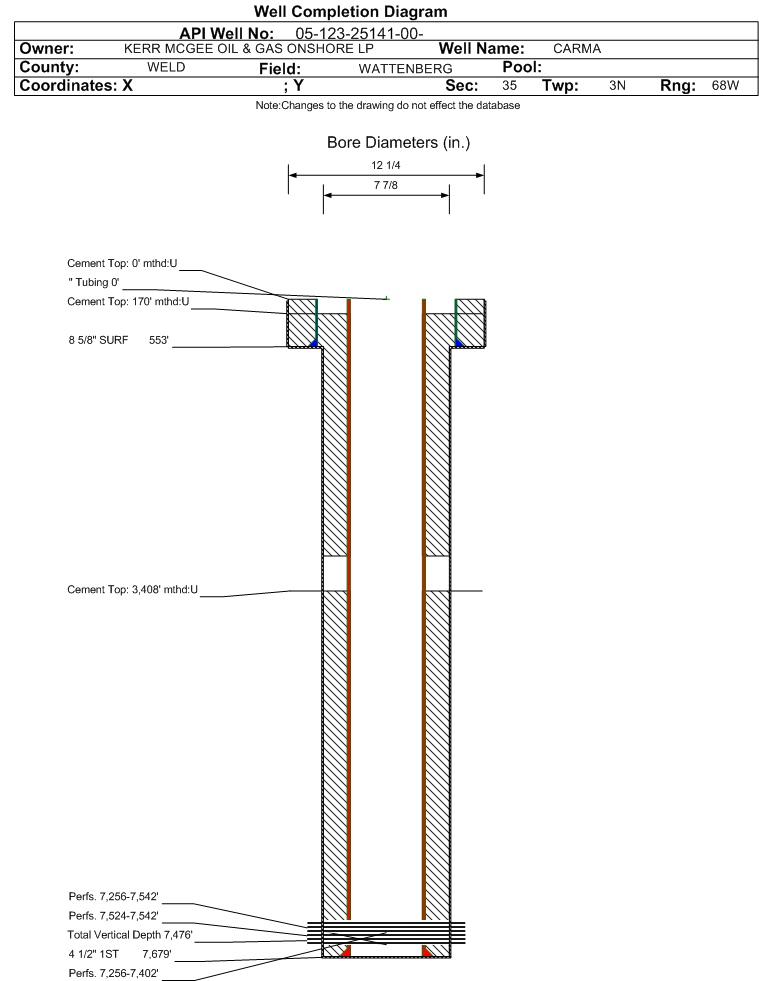

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 553 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 0 ft., Bottom: 553 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7679 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 630, Top: 3408 ft., Bottom: 7679 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 2830 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 118, Top: 170 ft., Bottom: 3000 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
PARKMAN3708 ft.3915 ft.NN
SUSSEX4292 ft.4410 ft.NN
SHANNON4761 ft.4800 ft.NN
NIOBRARA7246 ft.NN
FORT HAYS7505 ft.NN
CODELL7527 ft.7548 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/14/2008                Interval Top: 7524 ft.    Interval Bottom: 7542 ft.

 Completed Information for Formation CODELL
1st Production Date:10/23/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/23/2008
Treatment Summary:130,863 GALS FLUID & 220,820 LBS 30/50 SAND & 4000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7524 ft.# Of Holes:54
Interval Bottom:7542 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 8/8/2017                  Interval Top: 7256 ft.    Interval Bottom: 7542 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/23/2008Choke Size:0.156 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/1/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/14/2008Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1254
CALC_BBLS_H2O 0
CALC_BBLS_OIL 116
CALC_GOR 1449
CALC_MCF_GAS 168
CASING_PRESS 1200
GRAVITY_OIL 52
Perforation Data:
Interval Top:7256 ft.# Of Holes:174
Interval Bottom:7542 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/14/2008                Interval Top: 7256 ft.    Interval Bottom: 7402 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/23/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/23/2008
Treatment Summary:1500 GALS ACID & 327,716 GALS FLUID & 254,960 LBS 30/50 SAND & 8000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7256 ft.# Of Holes:120
Interval Bottom:7402 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/08/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
