Wellbore #00 Wellbore Classification: OW Status: AB - 7/20/2023 Measured TD: 7333 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 7/20/2023 | | Wellbore Permit | DRIFTED | | Permit #: | 20071372 | Expiration Date: | 4/17/2008 | | Proposed Depth/Form: | 7750 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: 499-15 , Unit Acreage: 320, Drill Unit: W2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: W2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2NW |
| | |

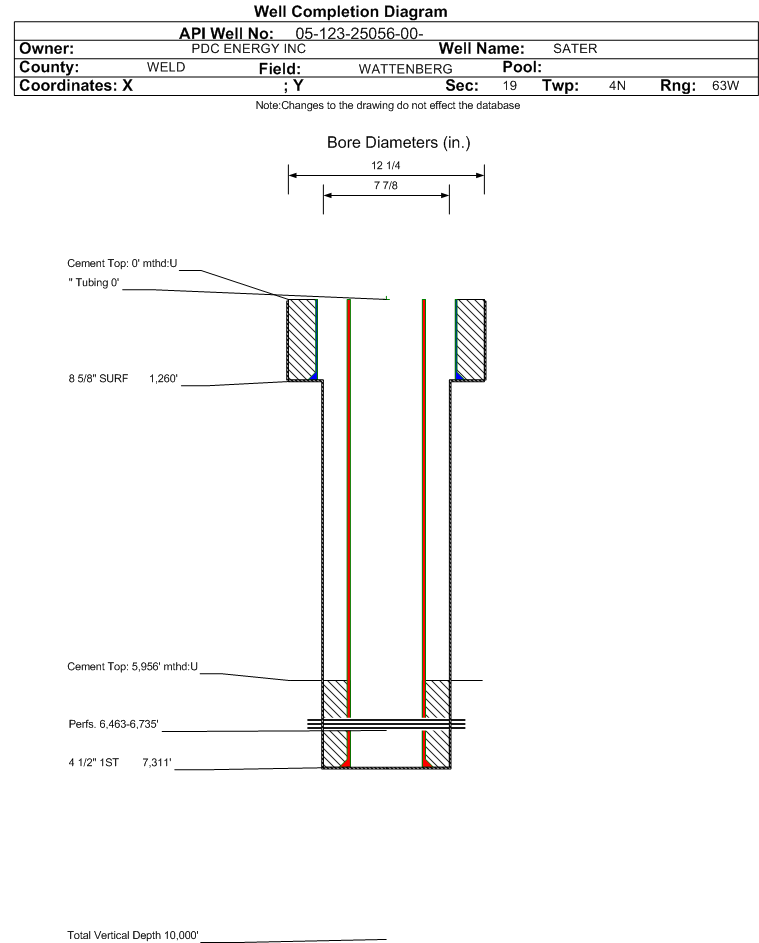

| Wellbore Completed | | Completion Date: | 4/28/2007 | | Spud Date: | 4/22/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7333 ft. | Measured PB depth: | 7271 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL, CNL/CDL, DUAL INDUCTION | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1260 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 890, Top: 0 ft., Bottom: 1260 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7311 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 220, Top: 5956 ft., Bottom: 7311 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3785 ft. | | N | N | | SUSSEX | 4147 ft. | | N | N | | NIOBRARA | 6454 ft. | | N | N | | FORT HAYS | 6700 ft. | | N | N | | CODELL | 6723 ft. | | N | N | | J SAND | 7186 ft. | | N | N |
Formation NB-CD Formation Classification: OW Status: AB - 7/20/2023 Interval Top: 6463 ft. Interval Bottom: 6735 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 8/23/2007 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/30/2007 | | Treatment Summary: | NBRR "A"6463'-6465'(2 SHOTS)NBRR "B"6534'-6542'(8 SHOTS) & CODL PERFS 6726'-6735'(18 HOLES) FRAC NB-CD W/5000 GAL 15% HCL,976 BBLS SLICKWATER PAD, 2993 BBLS VISTAR 20# FLUID SYSTEM 337,420# 20/40 WHITE SAND & 16,000# SUPER LC 20/40 RESIN COATED PROPAPPANT |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 22 | | BBLS_OIL | 53 | | BTU_GAS | 1298 | | CALC_BBLS_H2O | 22 | | CALC_BBLS_OIL | 53 | | CALC_GOR | 2434 | | CALC_MCF_GAS | 129 | | CASING_PRESS | 1300 | | GRAVITY_OIL | 49 | | MCF_GAS | 129 | | TUBING_PRESS | 1000 |
| | Perforation Data: | | Interval Top: | 6463 ft. | # Of Holes: | 28 | | Interval Bottom: | 6735 ft. | Hole Size: | 0.39 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/20/2023 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
