COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-25036		Well Classification: OW Status: PA - 10/25/2023
Well Name/No:CHEWY B #23-24
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/25/2023
FacilityID:290279LocationID:336624
County:WELD #123Location:NWSE 23 5N64W 6
Field:WATTENBERG - #90750Elevation:4593 ft.
Planned Location:2346FSL  2317 FELLat/Long: 40.383960 / -104.516070Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.383970 / -104.516080Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 10/25/2023             Measured TD: 7089 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 10/25/2023
Wellbore PermitDIRECTIONAL
Permit #:20071298 Expiration Date:4/17/2008
Proposed Top PZ Location:Sec:23 Twp: 5N 64W Footage: 1202 FSL  2675 FEL
Bottom Hole Location:Sec:23 Twp: 5N 64W Footage: 1202 FSL  2675 FEL
Proposed Depth/Form:7300 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:5/26/2007
Spud Date:5/21/2007Spud Date Is:ACTUAL
Measured TD:7089 ft.Measured PB depth:7056 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec:23 Twp: 5N 64WFootage: 1202 FSL  2675 FEL
Bottom Hole Location:Sec:23 Twp: 5N 64WFootage: 1202 S  2675 E
Log Types:GR/CCL/CBL,CDL/CNL/ML.,DIL/GR

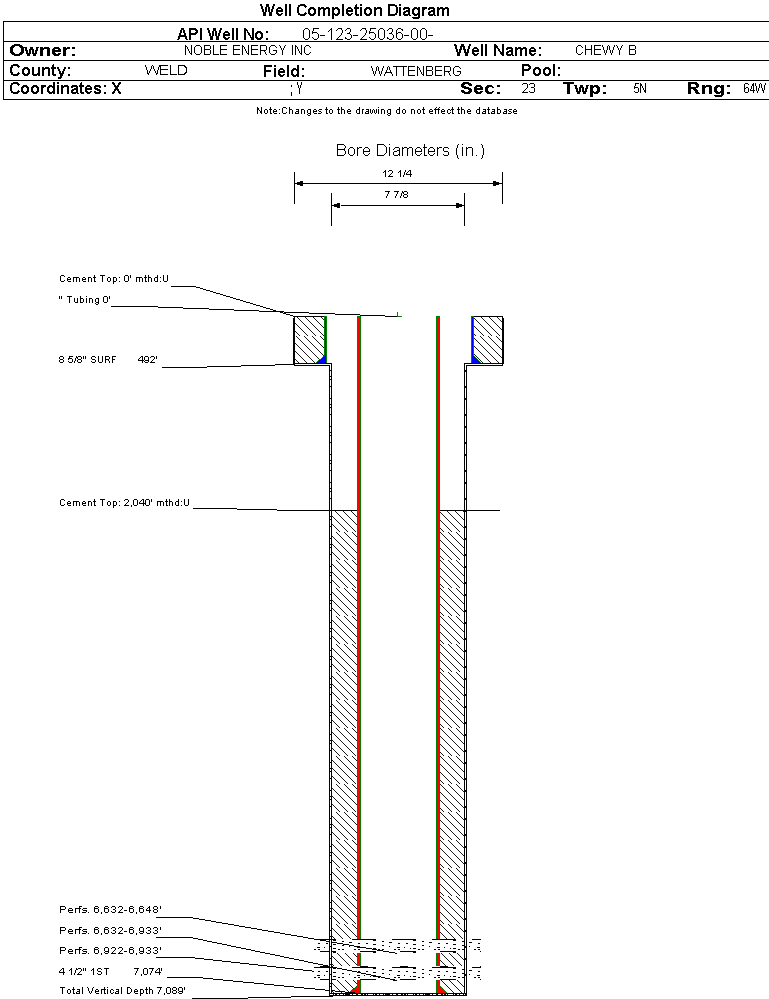

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 510 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 0 ft., Bottom: 510 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7089 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 660, Top: 2036 ft., Bottom: 7089 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3500 ft.NN
SUSSEX4308 ft.NN
SHANNON4858 ft.NN
NIOBRARA6625 ft.NN
FORT HAYS6896 ft.NN
CODELL6921 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 5/6/2022                  Interval Top: 6922 ft.    Interval Bottom: 6933 ft.

 Completed Information for Formation CODELL
1st Production Date:7/16/2007Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/18/2007
Treatment Summary:FRAC'D CODELL W/128,843 GALS OF SILVERSTIM WITH 32# GEL LOADING AND 270,900#'S OF 20/40 OTTAWA SAND. CODELL PRODUCING THROUGH FLOW PLUG.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:6922 ft.# Of Holes:40
Interval Bottom:6933 ft.Hole Size:0.41 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 10/25/2023                Interval Top: 6632 ft.    Interval Bottom: 6933 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/16/2007Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/26/2007
Treatment Summary:COMMINGLE CODELL AND NIOBRARA
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 13
BBLS_OIL 60
BTU_GAS 1299
CALC_GOR 3666
CASING_PRESS 480
GRAVITY_OIL 52
MCF_GAS 220
Perforation Data:
Interval Top:6632 ft.# Of Holes:104
Interval Bottom:6933 ft.Hole Size:

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 5/6/2022                  Interval Top: 6632 ft.    Interval Bottom: 6648 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/16/2007Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/18/2007
Treatment Summary:FRAC'D NIOBRARA W/70,056 GALS OF SLICKWATER 99,515 GALS OF SILVERSTIM WITH 28# LOADING AND 250,680#'S 30/50 PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6632 ft.# Of Holes:64
Interval Bottom:6648 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/25/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2024 - December 2024i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
