Wellbore #00 Wellbore Classification: OW Status: PA - 11/28/2016 Measured TD: 7590 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 11/28/2016 | | Wellbore Permit | DRIFTED | | Permit #: | 20071144 | Expiration Date: | 4/8/2008 | | Proposed Depth/Form: | 7590 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S2NE4 |
| | |

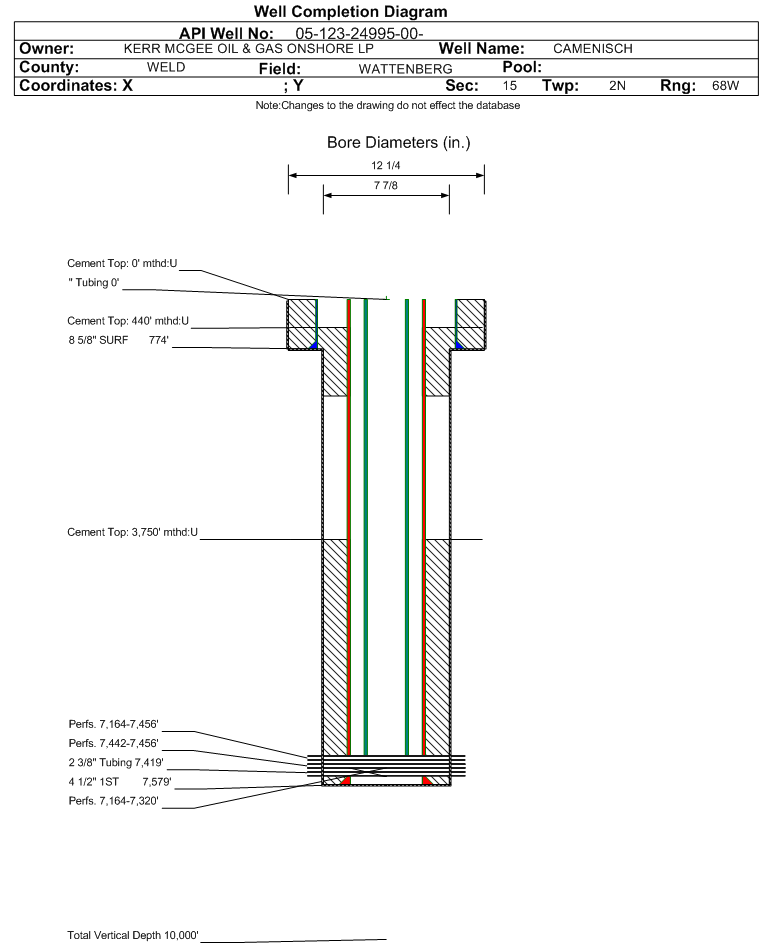

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 3/10/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 7590 ft. | Measured PB depth: | 7549 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL, P/E AILC-CNLD-ML | | Log Types: | | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 774 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 342, Top: 0 ft., Bottom: 774 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7579 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 670, Top: 3750 ft., Bottom: 7590 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7579 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 212, Top: 440 ft., Bottom: 1510 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 458 ft., Depth: 1500 ft., Bottom: 1508 ft., Sacks: 212, Method: PERF & PUMP | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3778 ft. | 3966 ft. | N | N | | SUSSEX | 4314 ft. | 4422 ft. | N | N | | SHANNON | 4748 ft. | 4790 ft. | N | N | | NIOBRARA | 7138 ft. | | N | N | | FORT HAYS | 7421 ft. | | N | N | | CODELL | 7443 ft. | | N | N |
Formation CODL Formation Classification: OG Status: CM - 7/26/2011 Interval Top: 7442 ft. Interval Bottom: 7456 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 10/28/2008 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/7/2010 | | Treatment Summary: | CD PERF 7442-7456 HOLES 56 SIZE 0.38
6/7/10 released RBP over CD to commingle CD w/ NB.
6/15/10 commingled NB/CD production | | Formation Treatment | | Treatment Date: | 2/3/2010 | | Treatment Summary: | SET RPB @ 7390 W/ 2 SACKS OF SAND OVER FOR MECHANICAL INTEGRITY. OUR INTENT IS TO REMOVE THE RBP AND SAND TO COMINGLE WELL IN THE NEXT SIX MONTHS. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BTU_GAS | 1236 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 171 | | CALC_GOR | 912 | | CALC_MCF_GAS | 156 | | CASING_PRESS | 2500 | | GRAVITY_OIL | 51 |
| | Perforation Data: | | Interval Top: | 7442 ft. | # Of Holes: | 56 | | Interval Bottom: | 7456 ft. | Hole Size: | 0.38 in. |
|
Formation NB-CD Formation Classification: OG Status: AB - 11/28/2016 Interval Top: 7164 ft. Interval Bottom: 7456 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 6/15/2010 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/7/2010 | | Treatment Summary: | NB PERF 7164-7320 HOLES 60 SIZE 0.42
CD PERF 7442-7456 HOLES 56 SIZE 0.38
6/7/10 released RBP over CD to commingle CD w/ NB.
6/15/10 commingled NB/CD production |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7419 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/15/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 10 | | BTU_GAS | 1302 | | CALC_BBLS_OIL | 10 | | CALC_GOR | 4000 | | CALC_MCF_GAS | 40 | | CASING_PRESS | 1200 | | GRAVITY_OIL | 50 | | MCF_GAS | 40 | | TUBING_PRESS | 1000 |
| | Perforation Data: | | Interval Top: | 7164 ft. | # Of Holes: | 116 | | Interval Bottom: | 7456 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: OG Status: CM - 7/26/2011 Interval Top: 7164 ft. Interval Bottom: 7320 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 2/22/2010 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/15/2010 | | Treatment Summary: | NB PERF 7164-7320 HOLES 60 SIZE 0.42
6/7/10 released RBP over CD to commingle CD w/ NB.
6/15/10 commingled NB/CD production | | Formation Treatment | | Treatment Date: | 2/9/2010 | | Treatment Summary: | FRAC NBRR W/233,789 GAL SW & 200,660# 30/50 SAND & 4,000# 20/40 SB EXCEL. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BTU_GAS | 1302 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 14 | | CALC_GOR | 4183 | | CALC_MCF_GAS | 58 | | CASING_PRESS | 200 | | GRAVITY_OIL | 51 |
| | Perforation Data: | | Interval Top: | 7164 ft. | # Of Holes: | 60 | | Interval Bottom: | 7320 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 11/28/2016 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
