COGIS - WELL SCOUT CARD

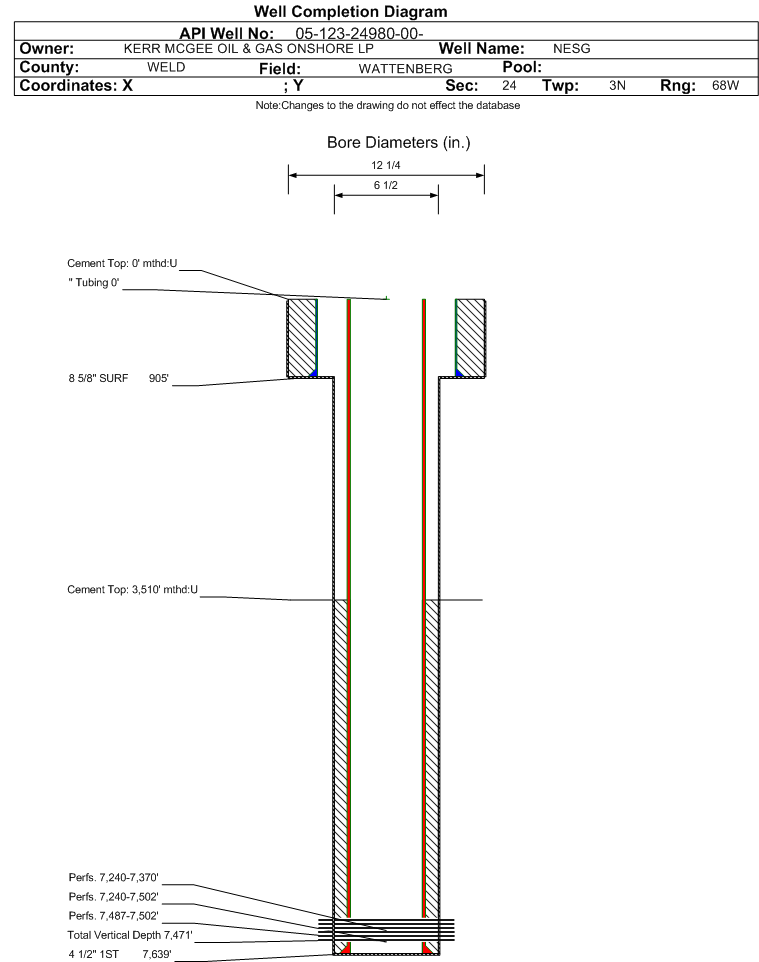

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24980		Well Classification: OW Status: PA - 4/25/2017
Well Name/No:NESG #35-24
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/25/2017
FacilityID:290010LocationID:336371
Municipality/County:MEAD / WELD #123Location:SWSW 24 3N68W 6
Field:WATTENBERG - #90750Elevation:4950 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1162FSL  863 FWLLat/Long: 40.207580 / -104.957590Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.207580 / -104.957570Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 4/25/2017             Measured TD: 7650 ft.    Vertical TD: 7471 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 4/25/2017
Wellbore PermitDIRECTIONAL
Permit #:20071068 Expiration Date:4/3/2008
Proposed Top PZ Location:Sec:24 Twp: 3N 68W Footage: 51 FSL  1325 FWL
Bottom Hole Location:Sec:24 Twp: 3N 68W Footage: 37 FSL  1324 FWL
Proposed Depth/Form:7622 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318A , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:2/29/2008
Spud Date:2/20/2008Spud Date Is:ACTUAL
Measured TD:7650 ft.Measured PB depth:7605 ft.
True Vertical TD:7471 ft.True Vertical PB depth:7426 ft.
Top PZ Location:Sec:24 Twp: 3N 68WFootage: 51 FSL  1325 FWL
Bottom Hole Location:Sec:24 Twp: 3N 68WFootage: 37 FSL  1324 FWL
Log Types:CBL, P/E AICL-CNLD-ML
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 905 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 430, Top: 0 ft., Bottom: 905 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.5 in., Size: 4.5 in., Top: 0 ft., Depth: 7639 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 311, Top: 3510 ft., Bottom: 7639 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1426 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 75, Top: 862 ft., Bottom: 1436 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 862 ft., Depth: 1427 ft., Bottom: 1434 ft., Sacks: 75, Method: DV TOOL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4052 ft.5808 ft.NN
SUSSEX4267 ft.4424 ft.NN
SHANNON4806 ft.4836 ft.NN
NIOBRARA7232 ft.NN
FORT HAYS7464 ft.NN
CODELL7486 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 12/22/2008                Interval Top: 7487 ft.    Interval Bottom: 7502 ft.

 Completed Information for Formation CODELL
1st Production Date:6/26/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/10/2008
Treatment Summary:162,078 GALS FLUID & 115,920# 40/70 SAND & 4000# 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7487 ft.# Of Holes:60
Interval Bottom:7502 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 4/25/2017                 Interval Top: 7240 ft.    Interval Bottom: 7502 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:6/26/2008Choke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/29/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/23/2008Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1233
CALC_BBLS_OIL 175
CALC_GOR 1640
CALC_MCF_GAS 287
CASING_PRESS 2100
GRAVITY_OIL 51
Perforation Data:
Interval Top:7240 ft.# Of Holes:142
Interval Bottom:7502 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 12/22/2008                Interval Top: 7240 ft.    Interval Bottom: 7370 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:6/26/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/10/2008
Treatment Summary:249,564 GALS FLUID & 1000 GALS ACID & 200,860# 40/70 SAND & 4000# 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7240 ft.# Of Holes:82
Interval Bottom:7370 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/25/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
