COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24979		Well Classification: GW Status: PA - 2/3/2020
Well Name/No:NESG #39-23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/3/2020
FacilityID:290008LocationID:336371
Municipality/County:MEAD / WELD #123Location:SWSW 24 3N68W 6
Field:WATTENBERG - #90750Elevation:4950 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1185FSL  882 FWLLat/Long: 40.207640 / -104.957530Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.207620 / -104.957500Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 2/3/2020             Measured TD: 7590 ft.    Vertical TD: 7481 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 2/3/2020
Wellbore PermitDIRECTIONAL
Permit #:20071066 Expiration Date:4/3/2008
Proposed Top PZ Location:Sec:23 Twp: 3N 68W Footage: 1336 FSL  71 FEL
Bottom Hole Location:Sec:23 Twp: 3N 68W Footage: 1336 FSL  71 FEL
Proposed Depth/Form:7573 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:3/7/2008
Spud Date:3/1/2008Spud Date Is:ACTUAL
Measured TD:7590 ft.Measured PB depth:7547 ft.
True Vertical TD:7481 ft.True Vertical PB depth:7438 ft.
Top PZ Location:Sec:23 Twp: 3N 68WFootage: 1336 FSL  71 FEL
Bottom Hole Location:Sec:23 Twp: 3N 68WFootage: 1336 FSL  71 FEL
Log Types:CBL, P/E AILC-CNLD-ML
Log Types:

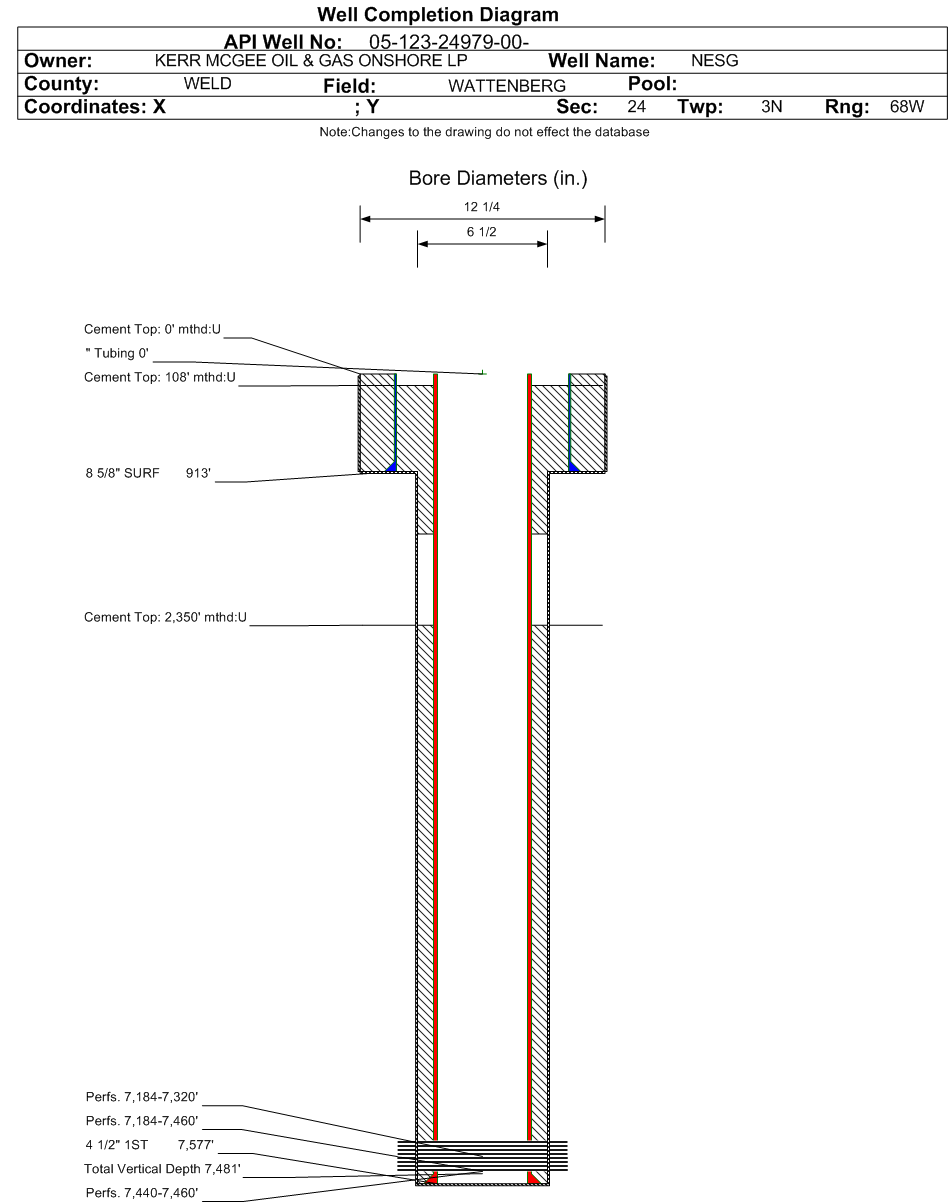

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 913 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 430, Top: 0 ft., Bottom: 913 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.5 in., Size: 4.5 in., Top: 0 ft., Depth: 7577 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 291, Top: 2350 ft., Bottom: 7577 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1500 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 108 ft., Bottom: 1498 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3740 ft.3960 ft.NN
SUSSEX4216 ft.4400 ft.NN
SHANNON4750 ft.4900 ft.NN
NIOBRARA7159 ft.7365 ft.NN
FORT HAYS7418 ft.7438 ft.NN
CODELL7438 ft.7462 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 7/16/2008                 Interval Top: 7440 ft.    Interval Bottom: 7460 ft.

 Completed Information for Formation CODELL
1st Production Date:6/30/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/11/2008
Treatment Summary:170,100 GALS FLUID & 117,000# 30/50 SAND & 4000# 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7440 ft.# Of Holes:80
Interval Bottom:7460 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 2/3/2020                  Interval Top: 7184 ft.    Interval Bottom: 7460 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:6/30/2008Choke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/7/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/16/2008Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1232
CALC_BBLS_H2O 0
CALC_BBLS_OIL 19
CALC_GOR 6737
CALC_MCF_GAS 128
CASING_PRESS 2600
GRAVITY_OIL 51
Perforation Data:
Interval Top:7184 ft.# Of Holes:176
Interval Bottom:7460 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 7/16/2008                 Interval Top: 7184 ft.    Interval Bottom: 7320 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:6/30/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/14/2008
Treatment Summary:247,000 GALS FLUID & 200,100# 30/50 SAND & 4000# 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7184 ft.# Of Holes:96
Interval Bottom:7320 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/03/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
