COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24978		Well Classification: GW Status: PA - 8/31/2020
Well Name/No:NESG #12-24
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/31/2020
FacilityID:290009LocationID:336371
Municipality/County:MEAD / WELD #123Location:SWSW 24 3N68W 6
Field:WATTENBERG - #90750Elevation:4950 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1196FSL  891 FWLLat/Long: 40.207680 / -104.957470Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.207678 / -104.957475Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 8/31/2020             Measured TD: 7585 ft.    Vertical TD: 7503 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/31/2020
Wellbore PermitDIRECTIONAL
Permit #:20071070 Expiration Date:4/3/2008
Proposed Top PZ Location:Sec:24 Twp: 3N 68W Footage: 2006 FSL  669 FWL
Bottom Hole Location:Sec:24 Twp: 3N 68W Footage: 2006 FSL  669 FWL
Proposed Depth/Form:7545 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: W/2SW
Wellbore Completed
Completion Date:3/14/2008
Spud Date:3/7/2008Spud Date Is:ACTUAL
Measured TD:7585 ft.Measured PB depth:7553 ft.
True Vertical TD:7503 ft.True Vertical PB depth:7470 ft.
Top PZ Location:Sec:24 Twp: 3N 68WFootage: 2006 FSL  669 FWL
Bottom Hole Location:Sec:24 Twp: 3N 68WFootage: 2006 FSL  669 FWL
Log Types:SBL, P/E AILC-CNLD-ML
Log Types:

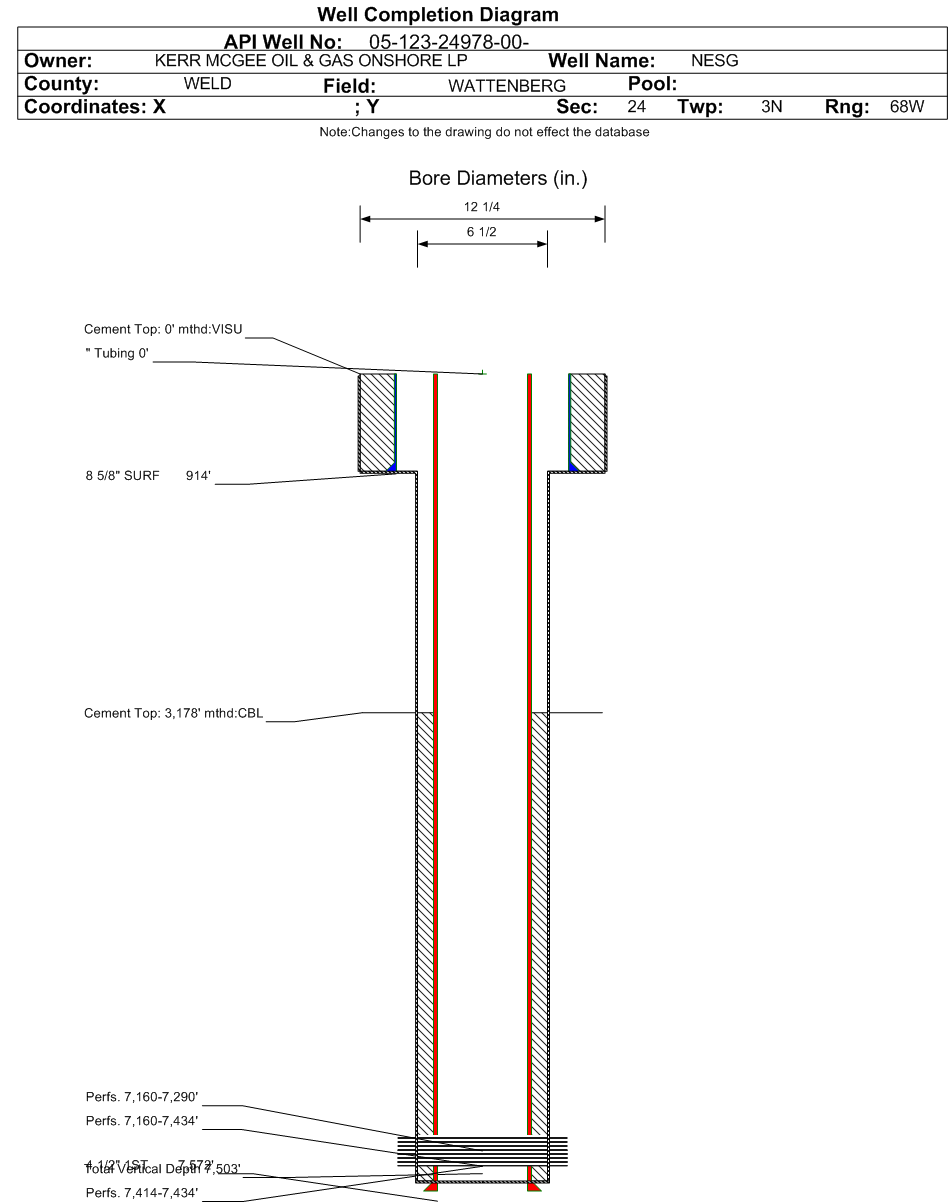

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 914 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 914 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.5 in., Size: 4.5 in., Top: 0 ft., Depth: 7572 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 257, Top: 3178 ft., Bottom: 7572 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1332 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 65, Top: 825 ft., Bottom: 1335 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 825 ft., Depth: 1334 ft., Bottom: 1335 ft., Sacks: 65, Method: DV TOOL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3735 ft.3985 ft.NN
SUSSEX4185 ft.4385 ft.NN
SHANNON4724 ft.4828 ft.NN
NIOBRARA7144 ft.NN
FORT HAYS7391 ft.NN
CODELL7411 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 8/1/2008                  Interval Top: 7414 ft.    Interval Bottom: 7434 ft.

 Completed Information for Formation CODELL
1st Production Date:6/30/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/7/2008
Treatment Summary:173,724 GALS FLUID & 119,399# 40/70 SAND & 4000# 20/40 R/C SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7414 ft.# Of Holes:80
Interval Bottom:7434 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 8/31/2020                 Interval Top: 7160 ft.    Interval Bottom: 7434 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:6/30/2008Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/14/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BTU_GAS 1233
CALC_BBLS_OIL 5
CALC_GOR 50400
CALC_MCF_GAS 252
CASING_PRESS 2600
GRAVITY_OIL 51
Perforation Data:
Interval Top:7160 ft.# Of Holes:158
Interval Bottom:7434 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 8/1/2008                  Interval Top: 7160 ft.    Interval Bottom: 7290 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:6/30/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/7/2008
Treatment Summary:250,752 GALS FLUID & 199,648# 40/70 SAND & 4000# 20/40 R/C SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7160 ft.# Of Holes:78
Interval Bottom:7290 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/31/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
