COGIS - WELL SCOUT CARD

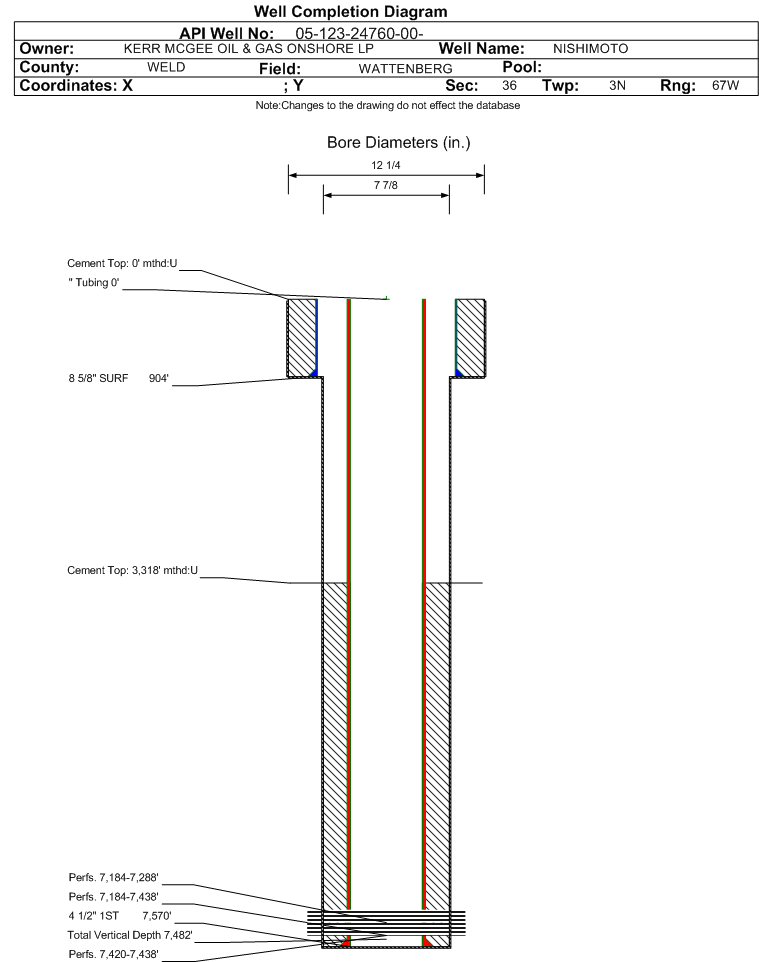

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24760		Well Classification: OW Status: TA - 9/1/2025
Well Name/No:NISHIMOTO #25-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:TAStatus Date9/1/2025
FacilityID:289200LocationID:336281
County:WELD #123Location:NWSE 36 3N67W 6
Field:WATTENBERG - #90750Elevation:4817 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2138FSL  1982 FELLat/Long: 40.179960 / -104.836710Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.180006 / -104.836711Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: TA - 9/1/2025             Measured TD: 7580 ft.    Vertical TD: 7482 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        TA - 9/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20070006 Expiration Date:2/4/2008
Proposed Top PZ Location:Sec:36 Twp: 3N 67W Footage: 2393 FSL  2435 FWL
Bottom Hole Location:Sec:36 Twp: 3N 67W Footage: 2393 FSL  2435 FWL
Proposed Depth/Form:7565 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:N/A
Spud Date:4/19/2007Spud Date Is:ACTUAL
Measured TD:7580 ft.Measured PB depth:7536 ft.
True Vertical TD:7482 ft.True Vertical PB depth:7438 ft.
Top PZ Location:Sec:36 Twp: 3N 67WFootage: 2393 FSL  2435 FWL
Bottom Hole Location:Sec:36 Twp: 3N 67WFootage: 2393 FSL  2435 FWL
Log Types:ML-CDL-CNL-CBL-IEL
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 904 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 0 ft., Bottom: 904 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7570 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 3330 ft., Bottom: 7570 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 90 ft., Depth: 3300 ft., Bottom: 3306 ft., Sacks: 780, Method: 1 INCH
FormationInterval TopLog BottomCoredDSTs
PARKMAN3846 ft.NN
SUSSEX4280 ft.NN
SHANNON4888 ft.NN
NIOBRARA7182 ft.NN
FORT HAYS7397 ft.NN
CODELL7418 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 8/10/2007                 Interval Top: 7420 ft.    Interval Bottom: 7438 ft.

 Completed Information for Formation CODELL
1st Production Date:7/31/2007Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/14/2007
Treatment Summary:130,224 GALS FLUID & 221,880 LBS 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7420 ft.# Of Holes:54
Interval Bottom:7438 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 2/26/2025                 Interval Top: 7184 ft.    Interval Bottom: 7438 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/31/2007Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:4/26/2007
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BTU_GAS 1232
CALC_BBLS_H2O 0
CALC_BBLS_OIL 23
CALC_GOR 15830
CALC_MCF_GAS 364
CASING_PRESS 800
GRAVITY_OIL 53
Perforation Data:
Interval Top:7184 ft.# Of Holes:126
Interval Bottom:7438 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 8/10/2007                 Interval Top: 7184 ft.    Interval Bottom: 7288 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/31/2007Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/14/2007
Treatment Summary:246,716 GALS FLUID & 200,040 LBS 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7184 ft.# Of Holes:72
Interval Bottom:7288 ft.Hole Size:0.42 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (TA )YDefined Inactive
04/16/2025
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
