Wellbore #00 Wellbore Classification: GW Status: AB - 12/6/2023 Measured TD: 7900 ft. Vertical TD: 7830 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 12/6/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20066248 | Expiration Date: | 1/14/2008 | | Proposed Top PZ Location: | Sec:30 Twp: 3N 66W | Footage: 82 FSL 2394 FEL | | Bottom Hole Location: | Sec:30 Twp: 3N 66W | Footage: 82 FSL 2394 FEL | | Proposed Depth/Form: | 7875 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 318A , Unit Acreage: 160, Drill Unit: ALL | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318A , Unit Acreage: 160, Drill Unit: ALL |
| | |

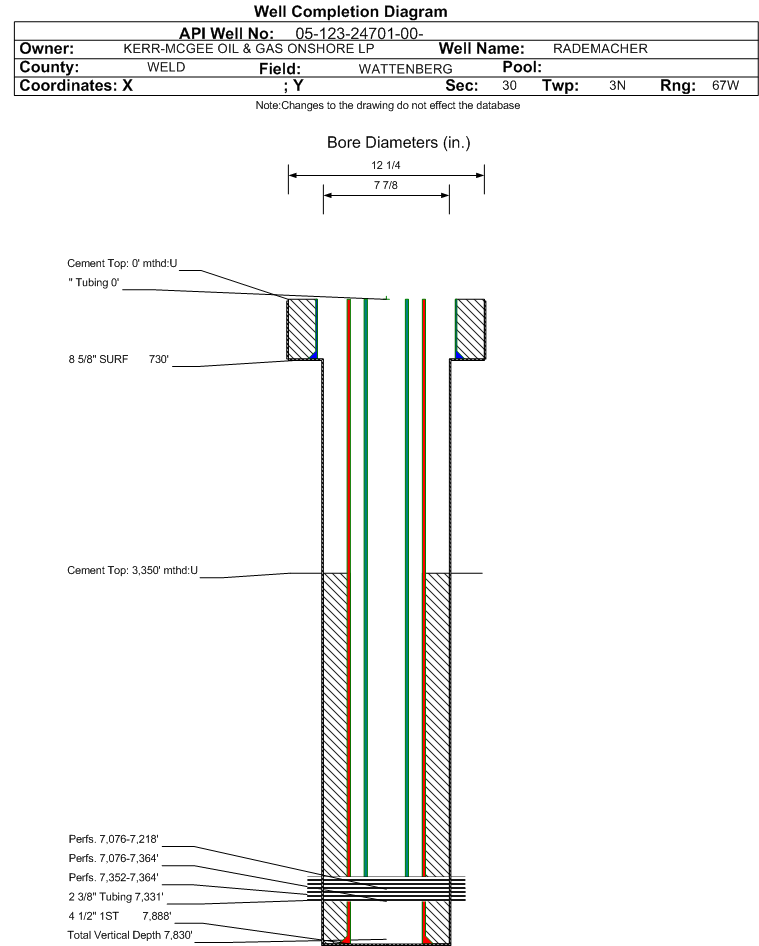

| Wellbore Completed | | Completion Date: | 12/6/2007 | | Spud Date: | 11/30/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7900 ft. | Measured PB depth: | 7859 ft. | | True Vertical TD: | 7830 ft. | True Vertical PB depth: | 7789 ft. | | Top PZ Location: | Sec:30 Twp: 3N 66W | Footage: 82 FSL 2394 FEL | | Bottom Hole Location: | Sec:30 Twp: 3N 66W | Footage: 82 FSL 2394 FEL | | Log Types: | CBL, PNL/GR/CCL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 730 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 730 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7888 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 610, Top: 3350 ft., Bottom: 7888 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3740 ft. | | N | N | | SUSSEX | 4190 ft. | | N | N | | SHANNON | 4677 ft. | | N | N | | NIOBRARA | 7124 ft. | | N | N | | FORT HAYS | 7332 ft. | | N | N | | CODELL | 7352 ft. | | N | N |
Formation CODL Formation Classification: OW Status: CM - 11/21/2011 Interval Top: 7352 ft. Interval Bottom: 7364 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 2/26/2008 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/24/2011 | | Treatment Summary: | 1/24/11 -Drill CIBP & push to 7840'
1/27/11 -Commingle with NBRR production | | Formation Treatment | | Treatment Date: | 11/12/2010 | | Treatment Summary: | Sand plug set at 7278' w/fill to 7274' | | Formation Treatment | | Treatment Date: | 1/18/2008 | | Treatment Summary: | 152,370 GALS FLUID; 115,000 LBS 30/50 SAND; 4,000 LBS 20/40 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BTU_GAS | 1283 | | CALC_BBLS_OIL | 34 | | CALC_GOR | 120 | | CALC_MCF_GAS | 4 | | CASING_PRESS | 125 | | GRAVITY_OIL | 51 |
| | Perforation Data: | | Interval Top: | 7352 ft. | # Of Holes: | 48 | | Interval Bottom: | 7364 ft. | Hole Size: | 0.42 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 12/6/2023 Interval Top: 7076 ft. Interval Bottom: 7364 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 1/27/2011 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/24/2011 | | Treatment Summary: | NB PERF 7076-7218 HOLES 66 SIZE 0.38 CD PERF 7352-7364 HOLES 48 SIZE 0.42
1/24/11 -Drill CIBP & push to 7840'
1/27/11 -Commingle with NB-CD production |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7331 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/27/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 10 | | BTU_GAS | 1237 | | CALC_BBLS_OIL | 10 | | CALC_GOR | 10000 | | CALC_MCF_GAS | 100 | | CASING_PRESS | 800 | | GRAVITY_OIL | 49 | | MCF_GAS | 100 | | TUBING_PRESS | 800 |
| | Perforation Data: | | Interval Top: | 7076 ft. | # Of Holes: | 114 | | Interval Bottom: | 7364 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: GW Status: CM - 11/21/2011 Interval Top: 7076 ft. Interval Bottom: 7218 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/13/2010 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/7/2010 | | Treatment Summary: | 12/7/10 -Frac Niobrara w/ 250 gal 15% HCl & 252,422 gal Slickwater w/ 100,453# 40/70, 4,000# SB Excel
12/13/10 -NBRR PRODUCING ONLY
1/24/11 -Drill CIBP & push to 7840'
1/27/11 -Commingle with NB-CD production |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 4 | | BTU_GAS | 1233 | | CALC_BBLS_OIL | 4 | | CALC_GOR | 17750 | | CALC_MCF_GAS | 71 | | CASING_PRESS | 540 | | GRAVITY_OIL | 49 | | MCF_GAS | 71 |
| | Perforation Data: | | Interval Top: | 7076 ft. | # Of Holes: | 66 | | Interval Bottom: | 7218 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 12/06/2023 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
