Wellbore #00 Wellbore Classification: OW Status: PA - 6/24/2022 Measured TD: 7550 ft. Vertical TD: 7422 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 6/24/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20066249 | Expiration Date: | 1/14/2008 | | Proposed Top PZ Location: | Sec:30 Twp: 3N 67W | Footage: 76 FSL 1145 FWL | | Bottom Hole Location: | Sec:30 Twp: 3N 67W | Footage: 76 FSL 1145 FWL | | Proposed Depth/Form: | 7473 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318A , Unit Acreage: 160, Drill Unit: GWA |
| | |

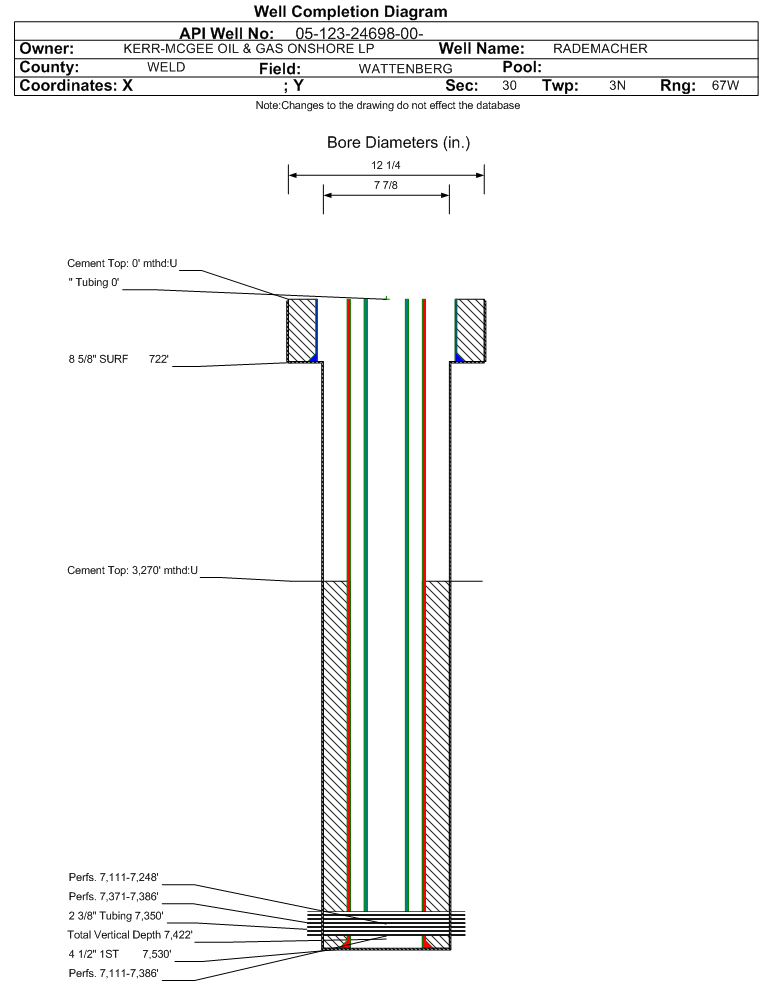

| Wellbore Completed | | Completion Date: | 11/29/2007 | | Spud Date: | 11/23/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7550 ft. | Measured PB depth: | 7496 ft. | | True Vertical TD: | 7422 ft. | True Vertical PB depth: | 7368 ft. | | Top PZ Location: | Sec:30 Twp: 3N 67W | Footage: 76 FSL 1145 FWL | | Bottom Hole Location: | Sec:30 Twp: 3N 67W | Footage: 76 FSL 1145 FWL | | Log Types: | CBL, DIL/GL/GR, CDL/CNL/ML | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 722 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 722 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7530 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 530, Top: 3280 ft., Bottom: 7530 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3703 ft. | | N | N | | SUSSEX | 4156 ft. | | N | N | | SHANNON | 4704 ft. | | N | N | | TEEPEE BUTTES | 6245 ft. | | N | N | | NIOBRARA | 7093 ft. | | N | N | | FORT HAYS | 7348 ft. | | N | N | | CODELL | 7370 ft. | | N | N |
Formation CODL Formation Classification: OW Status: CM - 11/18/2011 Interval Top: 7371 ft. Interval Bottom: 7386 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 2/21/2008 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/20/2011 | | Treatment Summary: | CD PERF 7371-7386 HOLES 60 SIZE 0.42
1/20/11 -DRILL & CIRC SAND TO CIBP. DRILL CIBP & PUSH TO 7458'
1/27/11 -COMMINGLE NB-CD PRODUCTION | | Formation Treatment | | Treatment Date: | 11/10/2010 | | Treatment Summary: | Sand plug set at 7322' w/fill to 7318' | | Formation Treatment | | Treatment Date: | 1/18/2008 | | Treatment Summary: | 163,700 GALS FLUID & 4000# 20/40 SAND & 150,800# 30/50 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BTU_GAS | 1282 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 45 | | CALC_GOR | 2533 | | CALC_MCF_GAS | 114 | | CASING_PRESS | 280 | | GRAVITY_OIL | 53 |
| | Perforation Data: | | Interval Top: | 7371 ft. | # Of Holes: | 60 | | Interval Bottom: | 7386 ft. | Hole Size: | 0.42 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 6/24/2022 Interval Top: 7111 ft. Interval Bottom: 7386 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 1/27/2011 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/20/2011 | | Treatment Summary: | NB PERF 7111-7248 HOLES 66 SIZE 0.38 CD PERF 7371-7386 HOLES 60 SIZE 0.42
1/20/11 -DRILL & CIRC SAND TO CIBP. DRILL CIBP & PUSH TO 7458'
1/27/11 -COMMINGLE NB-CD PRODUCTION |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7350 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/27/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 10 | | BTU_GAS | 1237 | | CALC_BBLS_OIL | 10 | | CALC_GOR | 10000 | | CALC_MCF_GAS | 100 | | CASING_PRESS | 1150 | | GRAVITY_OIL | 49 | | MCF_GAS | 100 | | TUBING_PRESS | 1150 |
| | Perforation Data: | | Interval Top: | 7111 ft. | # Of Holes: | 126 | | Interval Bottom: | 7386 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: OG Status: CM - 11/18/2011 Interval Top: 7111 ft. Interval Bottom: 7248 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/13/2010 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/20/2011 | | Treatment Summary: | NB PERF 7111-7248 HOLES 66 SIZE 0.38
1/20/11 -DRILL & CIRC SAND TO CIBP. DRILL CIBP & PUSH TO 7458'
1/27/11 -COMMINGLE NB-CD PRODUCTION | | Formation Treatment | | Treatment Date: | 12/7/2010 | | Treatment Summary: | NB Perf: 7111-7248 Holes: 66 Size: .38
Frac NB w/ 250 gal 15% HCl & 247,926 gal Slickwater w/ 200,440# 40/70 sand, 4,000# SB Excel sand |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 11 | | BTU_GAS | 1233 | | CALC_BBLS_OIL | 11 | | CALC_GOR | 5454 | | CALC_MCF_GAS | 60 | | CASING_PRESS | 350 | | MCF_GAS | 60 |
| | Perforation Data: | | Interval Top: | 7111 ft. | # Of Holes: | 66 | | Interval Bottom: | 7248 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 06/24/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
