COGIS - WELL SCOUT CARD

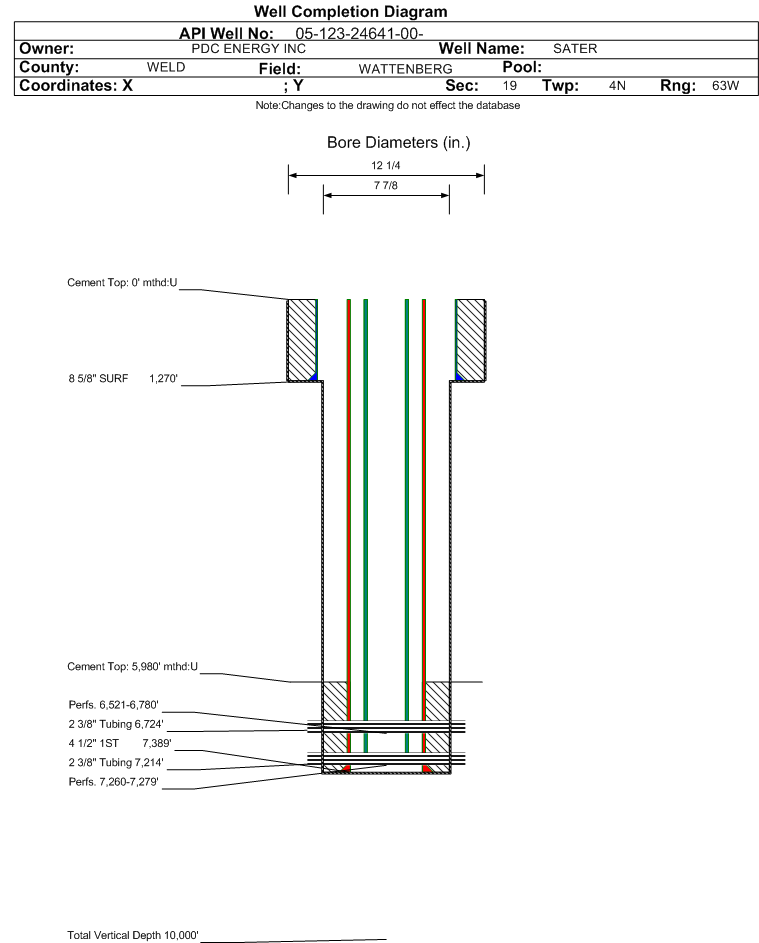

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24641		Well Classification: OW Status: PA - 8/2/2023
Well Name/No:SATER #24-19U
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/2/2023
FacilityID:288747LocationID:306434
County:WELD #123Location:SESW 19 4N63W 6
Field:WATTENBERG - #90750Elevation:4730 ft.
Basin:DENVER (DJ) BASIN
Planned Location:611FSL  1937 FWLLat/Long: 40.292170 / -104.482780Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.292170 / -104.482830Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 8/2/2023             Measured TD: 7395 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 8/2/2023
Wellbore PermitDRIFTED
Permit #:20065809 Expiration Date:1/3/2008
Proposed Depth/Form:7770 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: 499-15 , Unit Acreage: 320, Drill Unit: W2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: W2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2SW
Wellbore Completed
Completion Date:4/8/2007
Spud Date:4/3/2007Spud Date Is:ACTUAL
Measured TD:7395 ft.Measured PB depth:7367 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL, CNL/CDL. DUAL INDUCTION
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1270 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 890, Top: 0 ft., Bottom: 1270 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7389 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 5980 ft., Bottom: 7389 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6511 ft.NN
FORT HAYS6747 ft.NN
CODELL6770 ft.NN
J SAND7237 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 8/2/2023                  Interval Top: 7260 ft.    Interval Bottom: 7279 ft.

 Completed Information for Formation J SAND
1st Production Date:6/12/2007Choke Size:0.313 in.
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/16/2007
Treatment Summary:FRAC'D W/1655 BBLS OF VISTAR 24 # FLUID SYSTEM, 144,800 LBS OF 30/50 WHITE SAND AND 8000 LBS OF SB EXCEL 12/20 PROPPANT. PERFORATED J SAND INTERVALS 7260-7264' (3SPF) AND 7274-7279' (3SPF).
Tubing Size:2.375 in.Tubing Setting Depth:7214 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/31/2007Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 22
BBLS_OIL 5
BTU_GAS 1060
CALC_BBLS_H2O 22
CALC_BBLS_OIL 5
CALC_GOR 16600
CALC_MCF_GAS 83
CASING_PRESS 1780
GRAVITY_OIL 50
MCF_GAS 83
TUBING_PRESS 1780
Perforation Data:
Interval Top:7260 ft.# Of Holes:27
Interval Bottom:7279 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 8/2/2023                  Interval Top: 6521 ft.    Interval Bottom: 6780 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:9/20/2007Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/13/2007
Treatment Summary:Niobrara perfs 6521-6590 and Codell perfs 6772-6780 Total Fluid: 3356 bbls Vistar 20# 500 gal (15.87 bbls) 15% HCl Acid 995 bbls Slickwater Total Proppant: 337,660 lbs 20/40 White Sand 16,000 lbs SB Exel 20/40
Tubing Size:2.375 in.Tubing Setting Depth:6724 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6521 ft.# Of Holes:24
Interval Bottom:6780 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/02/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2029
Inactive ExceptionN
Noticed InactiveYNoticed Date
12/06/2022
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
