Wellbore #00 Wellbore Classification: OW Status: PA - 3/25/2023 Measured TD: 7090 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 3/25/2023 | | Wellbore Permit | DRIFTED | | Permit #: | 20065842 | Expiration Date: | 12/26/2007 | | Proposed Depth/Form: | 7150 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: NW4 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: NW4 |
| | |

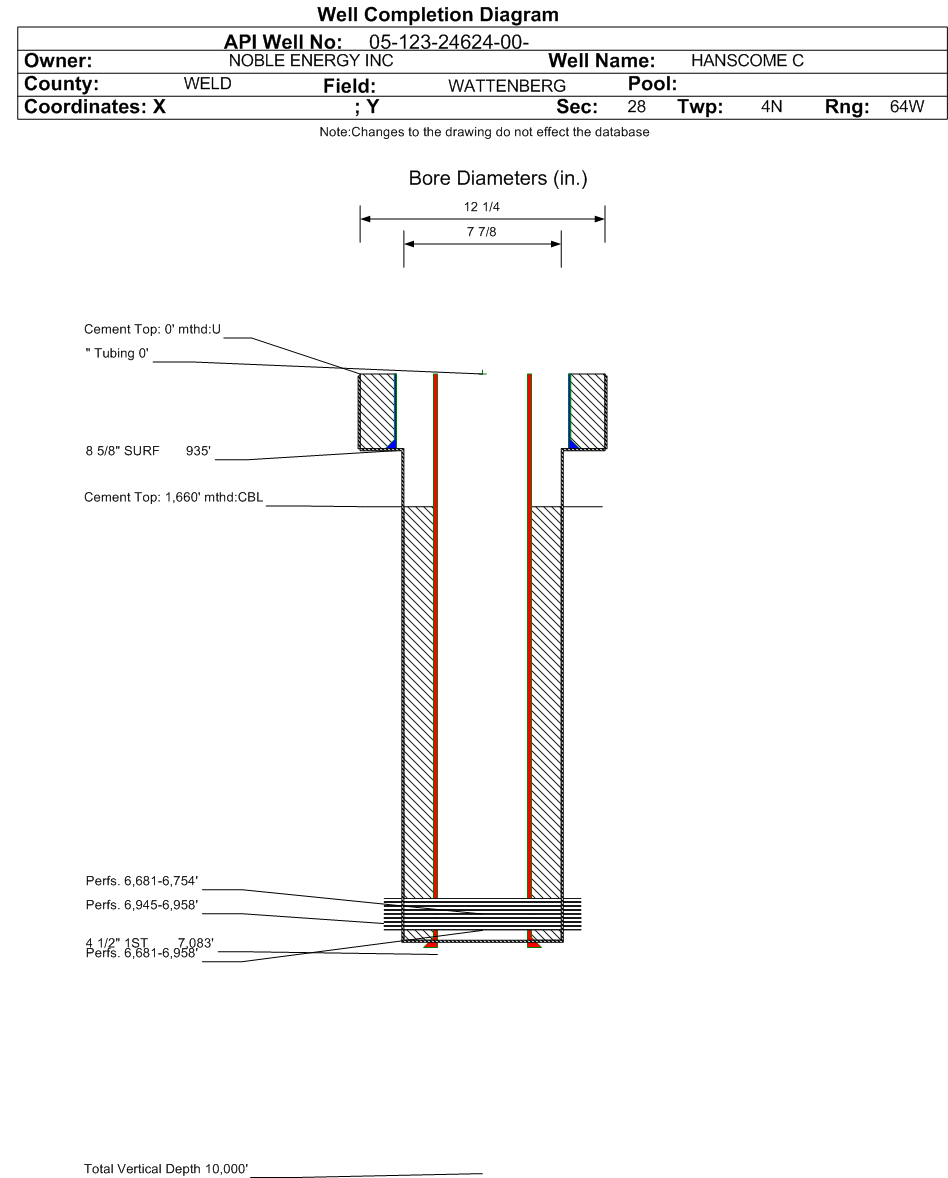

| Wellbore Completed | | Completion Date: | 3/19/2007 | | Spud Date: | 3/15/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7090 ft. | Measured PB depth: | 7024 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | GR/CCL/CBL. CDL/CNL/ML, DIL/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 935 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 660, Top: 0 ft., Bottom: 935 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7083 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1040, Top: 1660 ft., Bottom: 7083 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3610 ft. | | N | N | | SUSSEX | 4267 ft. | | N | N | | SHANNON | 4886 ft. | | N | N | | NIOBRARA | 6682 ft. | | N | N | | FORT HAYS | 6921 ft. | | N | N | | CODELL | 6944 ft. | | N | N |
Formation CODL Formation Classification: OW Status: CM - 7/19/2019 Interval Top: 6945 ft. Interval Bottom: 6958 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 4/12/2007 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 11/7/2019 | Treatment End Date: | N/A | | Treatment Summary: | 5/7/2007: remove CIFTP | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 4/12/2007 | | Treatment Summary: | FRAC'D CODL W/128,814 GALS OF SILVERSTIM WITH 34# GEL LOADING AND 271,840#'S OF 20/40 OTTAWA SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 6945 ft. | # Of Holes: | 52 | | Interval Bottom: | 6958 ft. | Hole Size: | 0.42 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 3/25/2023 Interval Top: 6681 ft. Interval Bottom: 6958 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 4/16/2007 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/19/2007 | | Treatment Summary: | COMMINGLE NBRR AND CODL. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BBLS_OIL | 21 | | BTU_GAS | 1307 | | CALC_GOR | 7524 | | CASING_PRESS | 160 | | GRAVITY_OIL | 55 | | MCF_GAS | 158 |
| | Perforation Data: | | Interval Top: | 6681 ft. | # Of Holes: | 180 | | Interval Bottom: | 6958 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: OW Status: CM - 7/19/2019 Interval Top: 6681 ft. Interval Bottom: 6754 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 4/16/2007 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/12/2007 | | Treatment Summary: | FRAC'D NBRR W/70,056 GALS OF SLICKWATER 98,784 GALS OF SILVERSTIM WITH 28# GEL LOADING AND 250,120#'S OF 30/50 PROPPANT. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6681 ft. | # Of Holes: | 128 | | Interval Bottom: | 6754 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 03/25/2023 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
