COGIS - WELL SCOUT CARD

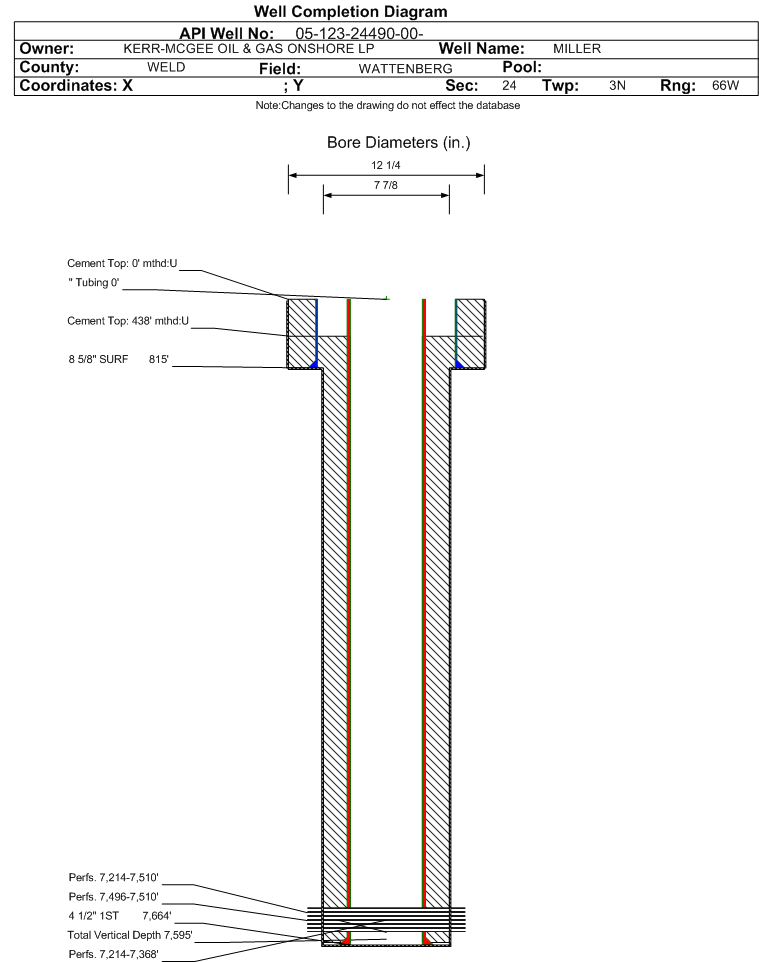

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24490		Well Classification: GW Status: SI - 11/1/2020
Well Name/No:MILLER #32-24
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date11/1/2020
FacilityID:288029LocationID:336061
County:WELD #123Location:SWNW 24 3N66W 6
Field:WATTENBERG - #90750Elevation:4990 ft.
Planned Location:1839FNL  481 FWLLat/Long: 40.212920 / -104.732960Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.212870 / -104.733120Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 11/1/2020             Measured TD: 7679 ft.    Vertical TD: 7595 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 11/1/2020
Wellbore PermitDIRECTIONAL
Permit #:20065175 Expiration Date:11/20/2007
Proposed Top PZ Location:Sec: Twp: Footage: 2550 FNL  50 FWL
Bottom Hole Location:Sec:24 Twp: 3N 66W Footage: 2250 FNL  50 FWL
Proposed Depth/Form:7670 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318A , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:7/13/2007
Spud Date:7/8/2007Spud Date Is:ACTUAL
Measured TD:7679 ft.Measured PB depth:7631 ft.
True Vertical TD:7595 ft.True Vertical PB depth:7547 ft.
Top PZ Location:Sec:24 Twp: 3N 66WFootage: 2555 FNL  70 FWL
Bottom Hole Location:Sec:24 Twp: 3N 66WFootage: 2555 FNL  70 FWL
Log Types:CBL, DIL/GL/GR,CDL,CNL,ML
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 815 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 815 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7664 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 556, Top: 438 ft., Bottom: 7664 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4020 ft.NN
SUSSEX4700 ft.NN
NIOBRARA7208 ft.NN
FORT HAYS7471 ft.NN
CODELL7494 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/12/2007                Interval Top: 7496 ft.    Interval Bottom: 7510 ft.

 Completed Information for Formation CODELL
1st Production Date:9/26/2007Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/31/2007
Treatment Summary:162,157 GALS FLUID & 115,360 LBS 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7496 ft.# Of Holes:56
Interval Bottom:7510 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 11/1/2020                 Interval Top: 7214 ft.    Interval Bottom: 7510 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:9/26/2007Choke Size:0.156 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/13/2007
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/12/2007Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1212
CALC_BBLS_OIL 35
CALC_GOR 9514
CALC_MCF_GAS 333
CASING_PRESS 1617
GRAVITY_OIL 52
Perforation Data:
Interval Top:7214 ft.# Of Holes:120
Interval Bottom:7510 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/12/2007                Interval Top: 7214 ft.    Interval Bottom: 7368 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:9/26/2007Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/31/2007
Treatment Summary:228,918 GALS FLUID & 200,080 LBS 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7214 ft.# Of Holes:64
Interval Bottom:7368 ft.Hole Size:0.42 in.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY06/11/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
10/31/2020
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
