COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24489		Well Classification: GW Status: SI - 8/1/2020
Well Name/No:MILLER #29-24
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date8/1/2020
FacilityID:288030LocationID:336108
County:WELD #123Location:NWNW 24 3N66W 6
Field:WATTENBERG - #90750Elevation:5010 ft.
Planned Location:709FNL  541 FWLLat/Long: 40.216020 / -104.732920Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.215818 / -104.732902Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 8/1/2020             Measured TD: 8159 ft.    Vertical TD: 8030 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 8/1/2020
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:11/29/2010
Proposed Top PZ Location:Sec:24 Twp: 3N 66W Footage: 96 FNL  1314 FWL
Bottom Hole Location:Sec:24 Twp: 3N 66W Footage: 99 FNL  1316 FWL
Proposed Depth/Form:8159 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318A , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:N/A
Spud Date:7/14/2007Spud Date Is:ACTUAL
Measured TD:8159 ft.Measured PB depth:8120 ft.
True Vertical TD:8030 ft.True Vertical PB depth:7991 ft.
Top PZ Location:Sec:24 Twp: 3N 66WFootage: 96 FNL  1314 FWL
Bottom Hole Location:Sec:24 Twp: 3N 66WFootage: 96 FNL  1314 FWL
Log Types:CBL, MUD, P/E AILC-TVD, CNLD-ML
Log Types:

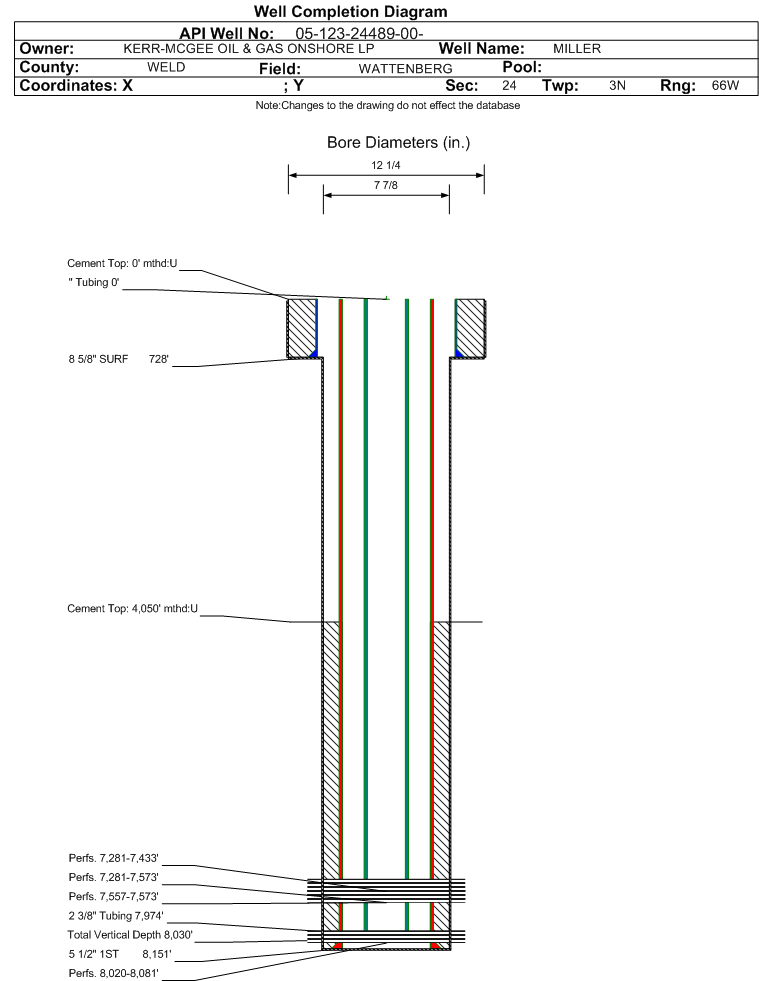

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 728 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 355, Top: 0 ft., Bottom: 728 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8150 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 556, Top: 4050 ft., Bottom: 8150 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4030 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 672, Top: 1020 ft., Bottom: 4030 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4126 ft.NN
SUSSEX4614 ft.NN
NIOBRARA7269 ft.NN
FORT HAYS7534 ft.NN
CODELL7557 ft.NN
J SAND8012 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  SI - 8/1/2020                  Interval Top: 8020 ft.    Interval Bottom: 8081 ft.

 Completed Information for Formation J SAND
1st Production Date:4/10/2010Choke Size:0.250 in.
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/30/2010
Treatment Summary:FRAC WITH 161070 GAL SW WITH 115600# 30/50 AND 4000# 20/40 SB EXCEL.
Tubing Size:2.375 in.Tubing Setting Depth:7974 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/21/2010Test Method:FLOWING
Hours Tested:Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1263
CALC_BBLS_OIL 3
CALC_GOR 7333
CALC_MCF_GAS 22
CASING_PRESS 1736
GRAVITY_OIL 59
TUBING_PRESS 1779
Perforation Data:
Interval Top:8020 ft.# Of Holes:57
Interval Bottom:8081 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 4/21/2010                 Interval Top: 7557 ft.    Interval Bottom: 7573 ft.

 Completed Information for Formation CODELL
1st Production Date:9/26/2007Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/31/2007
Treatment Summary:162,157 GALS FLUID & 115,360 # 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7557 ft.# Of Holes:80
Interval Bottom:7573 ft.Hole Size:0.375 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 8/1/2020                  Interval Top: 7281 ft.    Interval Bottom: 7573 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:9/26/2007Choke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/30/2010
Treatment Summary:NB PERF 7281-7433 HOLES 96 SIZE 0.42. CD PERF 7557-7573 HOLES 80 SIZE 0.38. NO ADDITIONAL TREATMENT.
Tubing Size:2.375 in.Tubing Setting Depth:7974 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/21/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BTU_GAS 1263
CALC_BBLS_H2O 0
CALC_BBLS_OIL 3
CALC_GOR 7333
CALC_MCF_GAS 22
CASING_PRESS 1736
GRAVITY_OIL 59
TUBING_PRESS 1779
Perforation Data:
Interval Top:7281 ft.# Of Holes:176
Interval Bottom:7573 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 4/21/2010                 Interval Top: 7281 ft.    Interval Bottom: 7433 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:9/26/2007Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/31/2007
Treatment Summary:228,918 GALS FLUID & 200,000 # 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7281 ft.# Of Holes:96
Interval Bottom:7433 ft.Hole Size:0.421875 in.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY05/30/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
07/31/2020
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
