Wellbore #00 Wellbore Classification: OW Status: AB - 4/15/2025 Measured TD: 7572 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 4/15/2025 | | Wellbore Permit | | | Permit #: | 20065001 | Expiration Date: | 11/8/2007 | | Proposed Depth/Form: | 7575 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: S2NW |
| | |

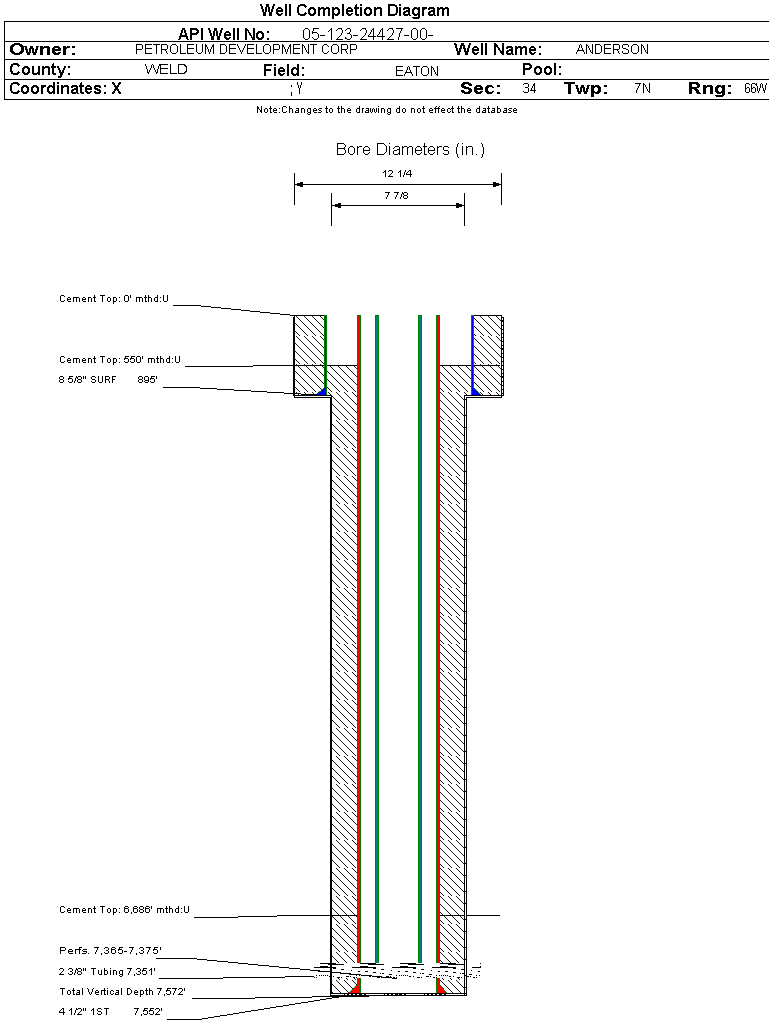

| Wellbore Completed | | Completion Date: | 12/27/2006 | | Spud Date: | 12/18/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7572 ft. | Measured PB depth: | 7527 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL, CNL/CDL/ DUAL INDUCTION | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 895 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 630, Top: 0 ft., Bottom: 895 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7552 ft., Weight: 10.5 , Citings Type: ACTUAL | | Cement: | Sacks: 170, Top: 6686 ft., Bottom: 7552 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 6686 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 510, Top: 550 ft., Bottom: 6686 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 7057 ft. | | N | N | | FORT HAYS | 7325 ft. | | N | N | | CODELL | 7362 ft. | | N | N |
Formation CODL Formation Classification: OW Status: AB - 4/15/2025 Interval Top: 7365 ft. Interval Bottom: 7375 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 4/6/2007 | Choke Size: | 0.313 in. | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/11/2007 | | Treatment Summary: | FRAC'D CODELL W/2540 BBLS OF VISTAR 20# FLUID SYSTEM 217820 LBS OF 20/40 WHITE SAND AND 8000 LBS OF SUPER LC 20/40 RESIN COATED PROPPANT. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7351 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/1/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BBLS_OIL | 46 | | CALC_BBLS_H2O | 1 | | CALC_BBLS_OIL | 46 | | CASING_PRESS | 1350 | | GRAVITY_OIL | 44 | | TUBING_PRESS | 1400 |
| | Perforation Data: | | Interval Top: | 7365 ft. | # Of Holes: | 30 | | Interval Bottom: | 7375 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 04/15/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
12/08/2022 |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
