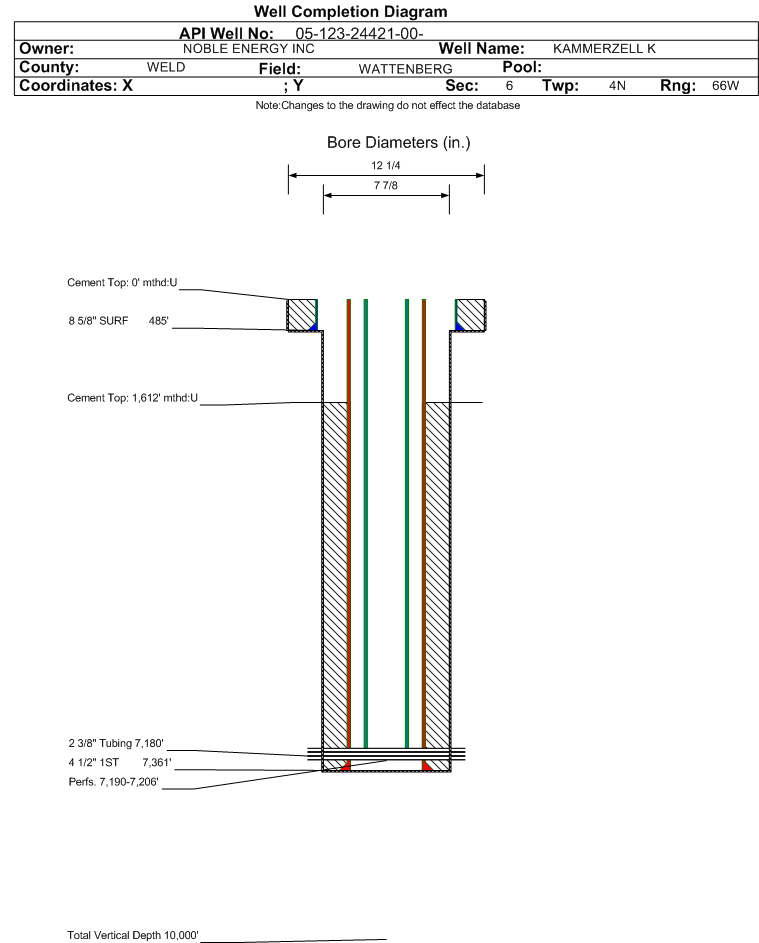

Wellbore #00 Wellbore Classification: OW Status: PA - 3/26/2015 Measured TD: 7361 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 3/26/2015 | | Wellbore Permit | DRIFTED | | Permit #: | 20075683 | Expiration Date: | 12/4/2008 | | Proposed Depth/Form: | 7361 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: W2SE4 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 80, Drill Unit: W2SE4 | | Formation And Spacing: | Code: TPBT , Formation: TEEPEE BUTTES , Order: , Unit Acreage: 80, Drill Unit: W2SE4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 485 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 305, Top: 0 ft., Bottom: 485 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7344 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 970, Top: 1612 ft., Bottom: 7361 ft. |
| | |
| Wellbore Completed | | Completion Date: | 2/20/2007 | | Spud Date: | 2/17/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7361 ft. | Measured PB depth: | 7327 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 485 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 305, Top: 0 ft., Bottom: 485 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7361 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 970, Top: 1612 ft., Bottom: 7361 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3598 ft. | | N | N | | SUSSEX | 4296 ft. | | N | N | | SHANNON | 4681 ft. | | N | N | | NIOBRARA | 6895 ft. | | N | N | | FORT HAYS | 7168 ft. | | N | N | | CODELL | 7190 ft. | | N | N |
Formation CODL Formation Classification: GW Status: AB - 4/6/2015 Interval Top: 7190 ft. Interval Bottom: 7206 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 3/15/2007 | Choke Size: | 0.375 in. | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/20/2007 | | Treatment Summary: | CODELL FRAC'D WITH 128,394 GALS VISTAR (125,874 X-LINK GALS), 22# GEL LOADINGS, AND 273,900# OTTAWA 20/40 SAND FLUSHED TREATMENT WITH 27 7 BBLS WATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7180 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/29/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 5 | | BBLS_OIL | 12 | | BTU_GAS | 1302 | | CALC_GOR | 7500 | | CASING_PRESS | 550 | | GRAVITY_OIL | 59 | | MCF_GAS | 90 | | TUBING_PRESS | 220 |
| | Perforation Data: | | Interval Top: | 7190 ft. | # Of Holes: | 64 | | Interval Bottom: | 7206 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 04/06/2015 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
