COGIS - WELL SCOUT CARD

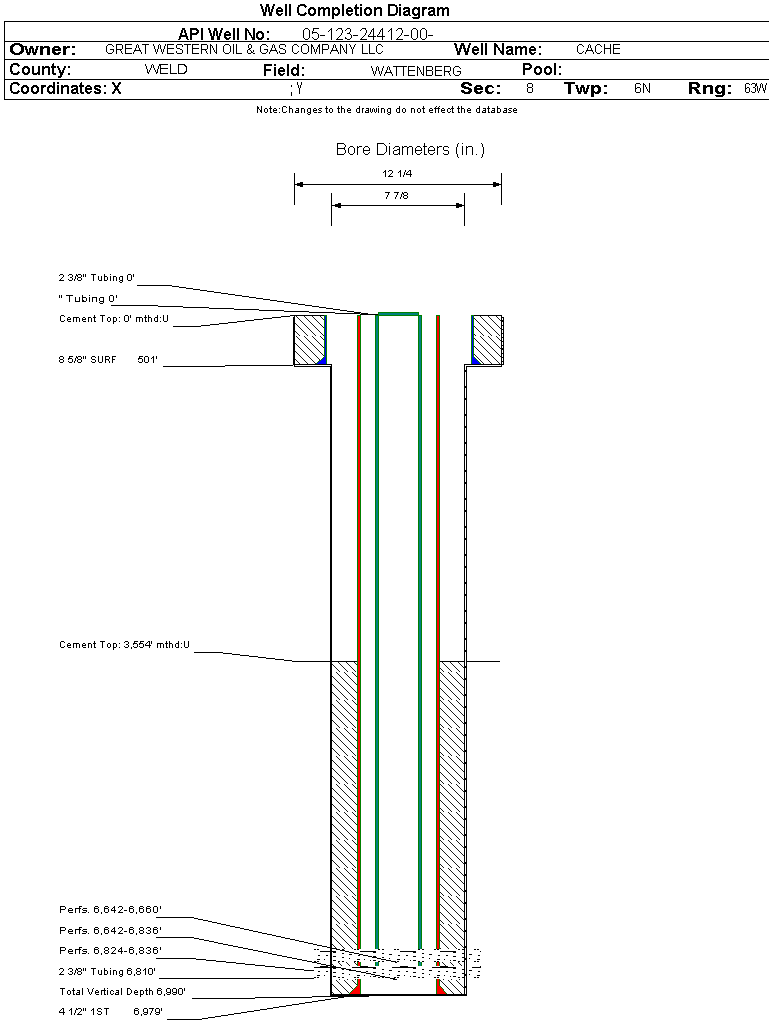

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24412		Well Classification: GW Status: PA - 7/29/2025
Well Name/No:CACHE #8-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/29/2025
FacilityID:287755LocationID:306312
County:WELD #123Location:SWSE 8 6N63W 6
Field:WATTENBERG - #90750Elevation:4700 ft.
Basin:DENVER (DJ) BASIN
Planned Location:662FSL  2160 FELLat/Long: 40.495670 / -104.459190Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.495670 / -104.459170Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 7/29/2025             Measured TD: 6990 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 7/29/2025
Wellbore Permit
Permit #:20064906 Expiration Date:11/6/2007
Proposed Depth/Form:7000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: W2SE4
Wellbore Completed
Completion Date:10/7/2007
Spud Date:10/2/2007Spud Date Is:ACTUAL
Measured TD:6990 ft.Measured PB depth:6964 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMPENSATED DENSITY NEUTRON GAMMA RAY;CEMENT BOND-VD
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 501 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 501 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6979 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 156, Top: 3554 ft., Bottom: 6979 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2814 ft.NN
PARKMAN3572 ft.NN
SUSSEX4284 ft.NN
SHANNON4944 ft.NN
NIOBRARA6534 ft.NN
FORT HAYS6782 ft.NN
CODELL6824 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 2/22/2008                 Interval Top: 6824 ft.    Interval Bottom: 6836 ft.

 Completed Information for Formation CODELL
1st Production Date:1/24/2008Choke Size:0.219 in.
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/16/2008
Treatment Summary:FRAC CODELL W/4115 BBLS FLUID (SLICKWATER) AND 115,000# 30/50 SAND. TREAT @ AN AVERAGE OF 4850# AND 59.6 BMP. MAX PRESSURE 5778#,MAX RATE 60 BPM.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/22/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 85
BTU_GAS 1242
CALC_GOR 1247
CASING_PRESS 400
GRAVITY_OIL 47
MCF_GAS 106
Perforation Data:
Interval Top:6824 ft.# Of Holes:48
Interval Bottom:6836 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 7/29/2025                 Interval Top: 6642 ft.    Interval Bottom: 6836 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/7/2007
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6810 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/23/2008Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 25
BTU_GAS 1242
CALC_GOR 4200
CASING_PRESS 900
GRAVITY_OIL 47
MCF_GAS 105
TUBING_PRESS 800
Perforation Data:
Interval Top:6642 ft.# Of Holes:96
Interval Bottom:6836 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 5/4/2008                  Interval Top: 6642 ft.    Interval Bottom: 6660 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:4/30/2008Choke Size:0.188 in.
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/29/2008
Treatment Summary:FRAC NIOBRARA WITH 4125 BBLS DYNAFLOW 2WR, AND 238000 30/50 SAND, AND 12000 RESIN COATED SAND. SPEARHEAD 24 BBLS ACID AHEAD OF FRAC. TREAT AT AN AVERAGE OF 4189 59.8BPM. MAX. PRESSURE 5453 MAX. RATE 63.5BPM
Tubing Size:2.375 in.Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/4/2008Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 33
BBLS_OIL 105
BTU_GAS 1242
CALC_GOR 2352
CASING_PRESS 350
GRAVITY_OIL 47
MCF_GAS 247
Perforation Data:
Interval Top:6642 ft.# Of Holes:48
Interval Bottom:6660 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/29/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)220
Total Gas Produced (MCF)2739
GOR12450
GOR DeterminationBOE
Average BOE per Day1.909
Average MCFE per Day11.079

 Federal Financial Assurance  i

 Tribal Well  i No
