COGIS - WELL SCOUT CARD

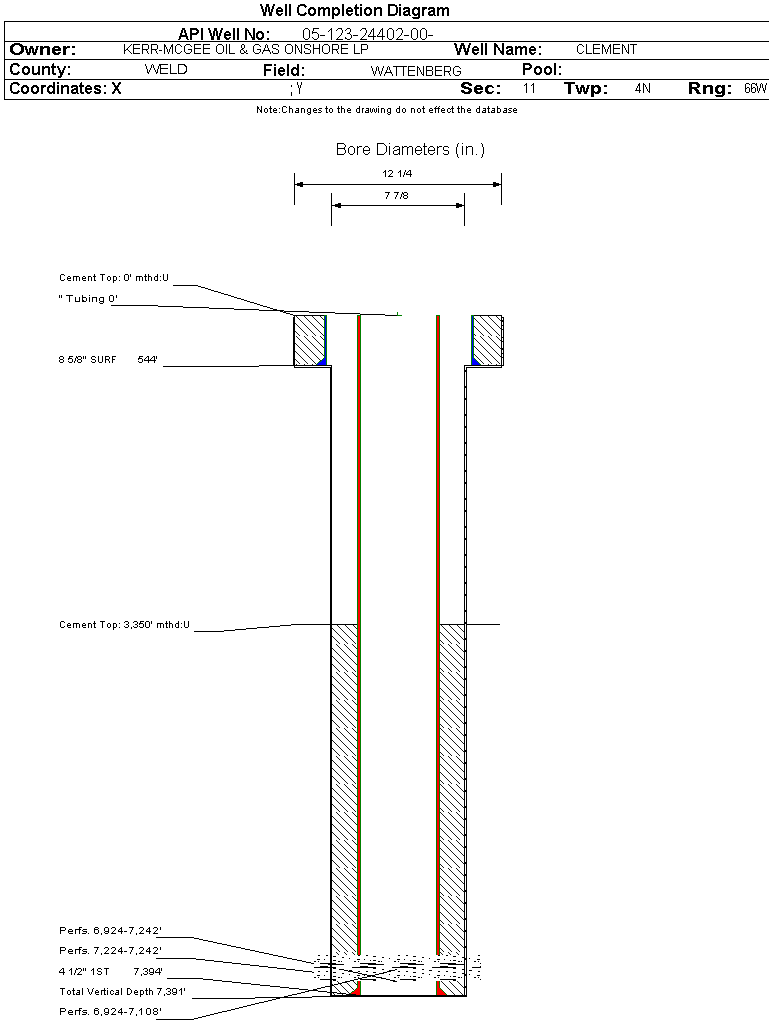

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24402		Well Classification: GW Status: PA - 6/6/2024
Well Name/No:CLEMENT #20-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/6/2024
FacilityID:287765LocationID:332704
County:WELD #123Location:SESE 11 4N66W 6
Field:WATTENBERG - #90750Elevation:4715 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1042FSL  991 FELLat/Long: 40.322080 / -104.738580Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.322058 / -104.738608Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 6/6/2024             Measured TD: 7405 ft.    Vertical TD: 7391 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 6/6/2024
Wellbore PermitDIRECTIONAL
Permit #:20075487 Expiration Date:10/25/2008
Proposed Depth/Form:7380 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: SE/4
Wellbore Completed
Completion Date:12/17/2007
Spud Date:12/11/2007Spud Date Is:ACTUAL
Measured TD:7405 ft.Measured PB depth:7378 ft.
True Vertical TD:7391 ft.True Vertical PB depth:7364 ft.
Top PZ Location:Sec:11 Twp: 4N 66WFootage: 1170 FSL  1319 FEL
Bottom Hole Location:Sec:11 Twp: 4N 66WFootage: 1170 FSL  1319 FEL
Log Types:CBL, CDL/CNL/ML, DIL/GL/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 543 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 295, Top: 0 ft., Bottom: 543 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7394 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 553, Top: 3350 ft., Bottom: 7394 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3678 ft.NN
SUSSEX4320 ft.NN
TEEPEE BUTTES6196 ft.NN
NIOBRARA6910 ft.NN
FORT HAYS7202 ft.NN
CODELL7224 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 4/11/2008                 Interval Top: 7224 ft.    Interval Bottom: 7242 ft.

 Completed Information for Formation CODELL
1st Production Date:2/19/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/24/2008
Treatment Summary:167,000 GALS FLUID & 111,000 LBS 40/70 SAND & 4000 LBS 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7224 ft.# Of Holes:18
Interval Bottom:7242 ft.Hole Size:0.35 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 6/6/2024                  Interval Top: 6924 ft.    Interval Bottom: 7242 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/19/2008Choke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/17/2007
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/11/2008Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1238
CALC_BBLS_OIL 3
CALC_GOR 38333
CALC_MCF_GAS 115
CASING_PRESS 250
GRAVITY_OIL 52
Perforation Data:
Interval Top:6924 ft.# Of Holes:90
Interval Bottom:7242 ft.Hole Size:0.35 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 4/11/2008                 Interval Top: 6924 ft.    Interval Bottom: 7108 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:2/19/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/24/2008
Treatment Summary:395,000 GALS FLUID & 1500 GALS ACID & 299,000 LBS 40/70 SAND & 4000 LBS 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6924 ft.# Of Holes:72
Interval Bottom:7108 ft.Hole Size:0.32 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/06/2024
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
