 Surface Location
 API# 05-123-24309		Well Classification: OW Status: PA - 1/6/2015
Well Name/No:PEPPLER #17-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/6/2015
FacilityID:287394LocationID:306258
County:WELD #123Location:SWSW 17 6N63W 6
Field:WATTENBERG - #90750Elevation:4665 ft.
Basin:DENVER (DJ) BASIN
Planned Location:478FSL  466 FWLLat/Long: 40.480580 / -104.468650Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.480580 / -104.468630Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 1/6/2015             Measured TD: 6936 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 1/6/2015
Wellbore PermitDRIFTED
Permit #:20075793 Expiration Date:11/18/2008
Proposed Depth/Form:7000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: W2SW4
Wellbore Completed
Completion Date:11/27/2008
Spud Date:11/18/2008Spud Date Is:ACTUAL
Measured TD:6936 ft.Measured PB depth:6854 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CEMENT BOND/GR, COMPENSATED DENSITY & NEUTORN/FR, DUAL INDUCTION/GR

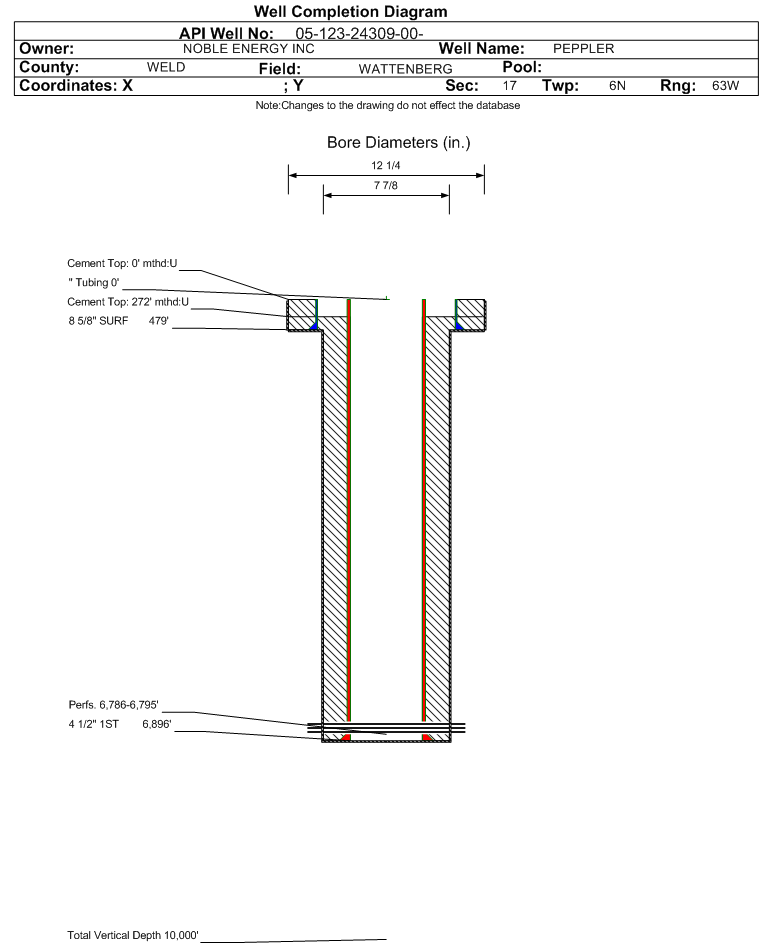

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 479 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: 479 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6896 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1330, Top: 272 ft., Bottom: 6896 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3492 ft.3874 ft.NN
SUSSEX4249 ft.4469 ft.NN
SHANNON4891 ft.5073 ft.NN
NIOBRARA6539 ft.6737 ft.NN
CODELL6784 ft.6797 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  AB - 1/6/2015                  Interval Top: 6786 ft.    Interval Bottom: 6795 ft.

 Completed Information for Formation CODELL
1st Production Date:1/15/2009Choke Size:0.188 in.
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/17/2008
Treatment Summary:FRAC'D CODELL W/ 338700 20/40 SAND AND 12000 SB EXCEL SAND USING 129150 GAL SUPER LPH-Z
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/18/2009Test Method:FLOWING
Hours Tested:12Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 48
BTU_GAS 1319
CALC_GOR 1667
CASING_PRESS 510
GRAVITY_OIL 44
MCF_GAS 80
Perforation Data:
Interval Top:6786 ft.# Of Holes:36
Interval Bottom:6795 ft.Hole Size:0.39 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/06/2015
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
