Wellbore #00 Wellbore Classification: GW Status: SI - 9/1/2021 Measured TD: 7909 ft. Vertical TD: 7822 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 9/1/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062986 | Expiration Date: | 9/11/2007 | | Proposed Top PZ Location: | Sec:32 Twp: 3N 67W | Footage: 55 FNL 1320 FWL | | Bottom Hole Location: | Sec:32 Twp: 3N 67W | Footage: 55 FNL 1320 FWL | | Proposed Depth/Form: | 7914 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: GWA |
| | |

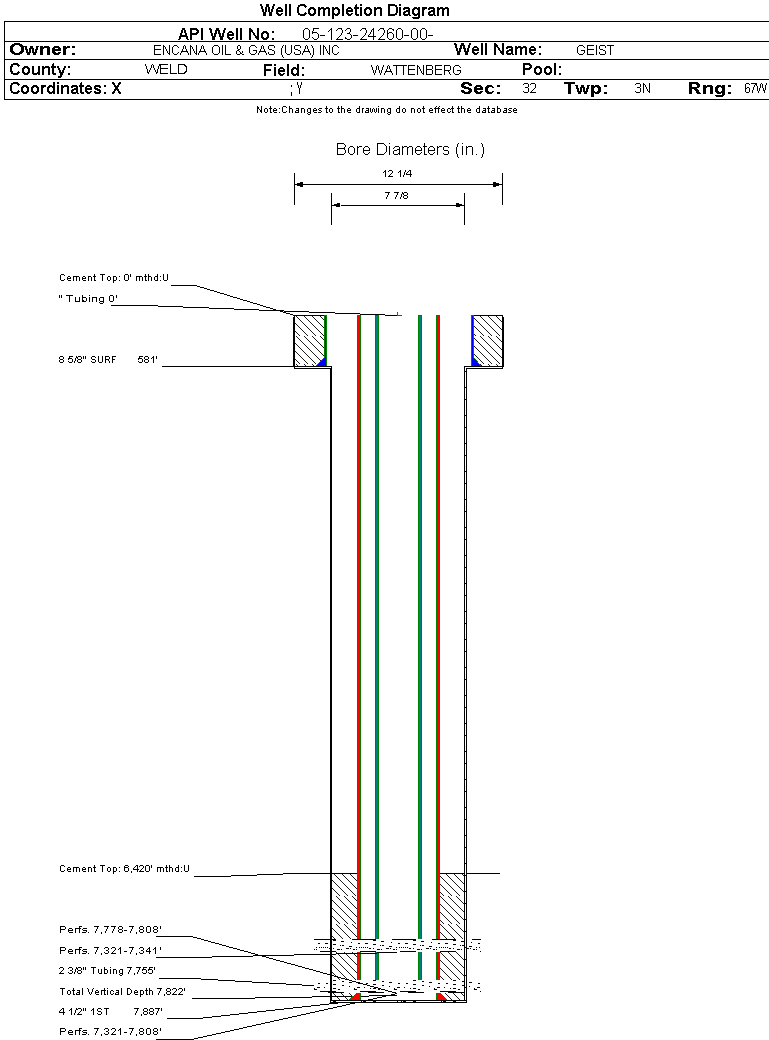

| Wellbore Completed | | Completion Date: | 2/5/2007 | | Spud Date: | 1/27/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7909 ft. | Measured PB depth: | 7884 ft. | | True Vertical TD: | 7822 ft. | True Vertical PB depth: | 7797 ft. | | Top PZ Location: | Sec:32 Twp: 3N 67W | Footage: 55 FNL 1320 FWL | | Bottom Hole Location: | Sec:32 Twp: 3N 67W | Footage: 55 FNL 1320 FWL | | Log Types: | CBL/DUAL IND/COMP DEN/COMPENSATED NEUTRON | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 581 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 260, Top: 0 ft., Bottom: 581 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7887 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 6420 ft., Bottom: 7887 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4188 ft. | | N | N | | SHANNON | 4728 ft. | | N | N | | NIOBRARA | 7160 ft. | | N | N | | CODELL | 7320 ft. | | N | N | | J SAND | 7764 ft. | | N | N |
Formation JSND Formation Classification: GW Status: SI - 9/1/2021 Interval Top: 7778 ft. Interval Bottom: 7808 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/16/2007 | | Treatment Summary: | JSND COMPLETION FRAC'D THE J SAND WITH 171,528 GAL FRAC FLUID AND 250,620# SAND. 2/16/07 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | Perforation Data: | | Interval Top: | 7778 ft. | # Of Holes: | 60 | | Interval Bottom: | 7808 ft. | Hole Size: | 0.41 in. |
|
Formation CODL Formation Classification: GW Status: SI - 9/1/2021 Interval Top: 7321 ft. Interval Bottom: 7341 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/16/2007 | | Treatment Summary: | CODELL RECOMPLETION SET CFP@7450', 2/16/07 FRAC'D THE CODELL WITH 108,640 GAL FRAC FLUID AND 250,660# SAND. 2/16/07 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7321 ft. | # Of Holes: | 80 | | Interval Bottom: | 7341 ft. | Hole Size: | 0.42 in. |
|
Formation J-CDL Formation Classification: GW Status: CM - 2/26/2007 Interval Top: 7321 ft. Interval Bottom: 7808 ft.| Completed Information for Formation J-CODELL | | 1st Production Date: | 2/24/2007 | Choke Size: | | | Formation Name: | J-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/5/2007 | | Treatment Summary: | COMMINGLE DRILLED UP CFP @ 7450' TO COMMINGLE THE JSND-CDL. 2/20/07 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7755 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/26/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 228 | | BBLS_OIL | 40 | | BTU_GAS | 1226 | | CALC_BBLS_H2O | 228 | | CALC_BBLS_OIL | 40 | | CALC_GOR | 6450 | | CALC_MCF_GAS | 258 | | CASING_PRESS | 1884 | | MCF_GAS | 258 | | TUBING_PRESS | 473 |
| | Perforation Data: | | Interval Top: | 7321 ft. | # Of Holes: | 140 | | Interval Bottom: | 7808 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
08/31/2021 |
| Low Producing | Y | Production Period
05/2024 - 04/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
