COGIS - WELL SCOUT CARD

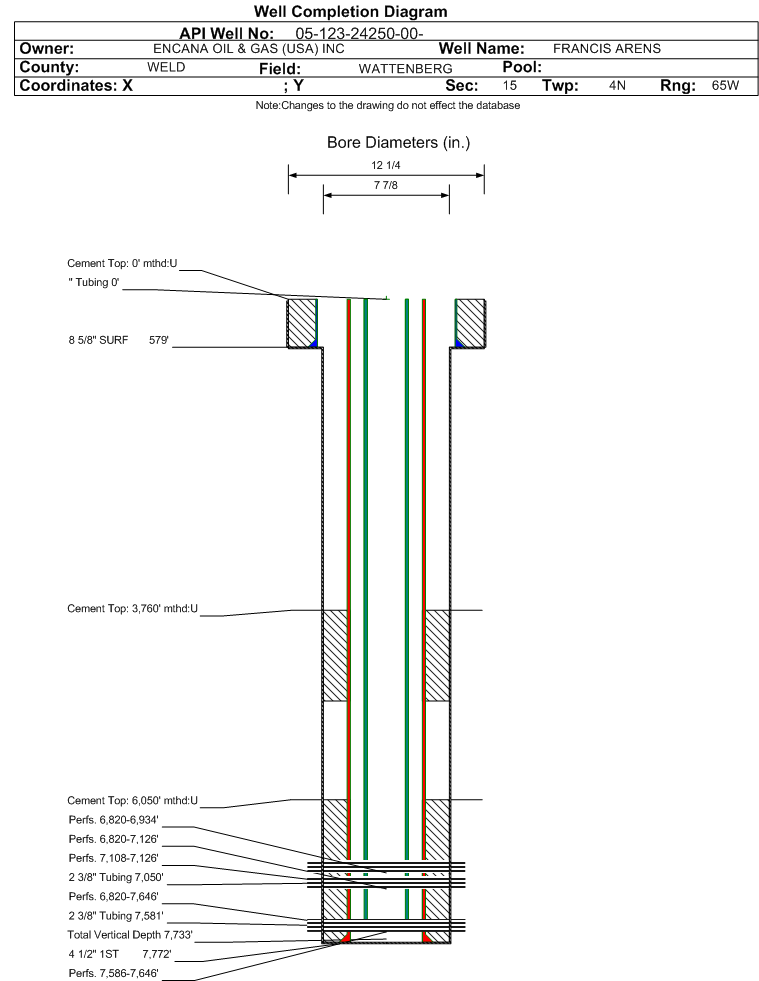

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24250		Well Classification: GW Status: PA - 11/8/2022
Well Name/No:FRANCIS ARENS #4-6-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/8/2022
FacilityID:286620LocationID:332680
County:WELD #123Location:SWSE 15 4N65W 6
Field:WATTENBERG - #90750Elevation:4712 ft.
Basin:DENVER (DJ) BASIN
Planned Location:554FSL  2028 FELLat/Long: 40.306690 / -104.647000Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.306696 / -104.646999Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 11/26/2011
End Date: 11/26/2011
Reported: 5/15/2012
Prior to rule 205A.b.(2)(A)
Days to report: 171
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/8/2022             Measured TD: 7785 ft.    Vertical TD: 7733 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/8/2022
Wellbore PermitDIRECTIONAL
Permit #:20063317 Expiration Date:9/6/2007
Proposed Top PZ Location:Sec:15 Twp: 4N 65W Footage: 921 FSL  2597 FEL
Bottom Hole Location:Sec:15 Twp: 4N 65W Footage: 921 FSL  2597 FEL
Proposed Depth/Form:7705 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5135 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 240, Top: 4115 ft., Bottom: 5135 ft.
Wellbore Completed
Completion Date:11/28/2006
Spud Date:11/21/2006Spud Date Is:ACTUAL
Measured TD:7785 ft.Measured PB depth:7739 ft.
True Vertical TD:7733 ft.True Vertical PB depth:7687 ft.
Top PZ Location:Sec:15 Twp: 4N 65WFootage: 921 FSL  2597 FEL
Bottom Hole Location:Sec:15 Twp: 4N 65WFootage: 921 FSL  2597 FEL
Log Types:CBL, DUAL IND/COMP.DENSITY/COMP.NEUTRON
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 579 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 0 ft., Bottom: 579 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7772 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 280, Top: 6050 ft., Bottom: 7772 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4856 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 3760 ft., Bottom: 4856 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4856 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 3850 ft., Bottom: 4890 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4326 ft.NN
NIOBRARA6820 ft.NN
CODELL7108 ft.NN
J SAND7584 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  AB - 11/8/2022                 Interval Top: 7586 ft.    Interval Bottom: 7646 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/26/2011
Treatment Summary:CIBP set @ 7180’ on 11-26-11 to refrac and test the NBRR-CDL.
Formation Treatment
Treatment Date:12/15/2006
Treatment Summary:JSND COMPLETION. FRAC'D THE J SAND W/161,498 GALS FRAC FLUID & 250,040# SAND. 12/10/06
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7586 ft.# Of Holes:80
Interval Bottom:7646 ft.Hole Size:0.41 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 4/16/2012                 Interval Top: 7108 ft.    Interval Bottom: 7126 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/26/2011
Treatment Summary:Frac’d 7108’ – 7126’ w/ 113,168 gal frac fluid and 220,000# sand. CIBP set @ 7180 11/26/11.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7108 ft.# Of Holes:72
Interval Bottom:7126 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 2/21/2007                 Interval Top: 6820 ft.    Interval Bottom: 7646 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:2/19/2007Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/28/2006
Treatment Summary:JSND-NBRR-CDL COMMINGLE. DRILLED OUT CFP @ 7000' & 7210' TO COMMINGLE THE JSND-NBRR-CDL. 2/5/07
Tubing Size:2.375 in.Tubing Setting Depth:7581 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/21/2007Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 60
BBLS_OIL 40
CALC_BBLS_H2O 60
CALC_BBLS_OIL 40
CALC_GOR 12775
CALC_MCF_GAS 511
CASING_PRESS 840
MCF_GAS 511
TUBING_PRESS 510
Perforation Data:
Interval Top:6820 ft.# Of Holes:212
Interval Bottom:7646 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 11/8/2022                 Interval Top: 6820 ft.    Interval Bottom: 7126 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/26/2011
Treatment Summary:Frac’d 7108’ – 7126 Frac’d 6820’-6836’, 6920’-6934’
Formation Treatment
Treatment Date:12/15/2006
Treatment Summary:NBRR-CDL RECOMPLETION. SET CFP @ 7210'. FRAC'D CODELL W/114,114 GAL FRAC FLUID & 250,120# SAND.12/15/06. SET CFP@ 7000'. FRAC'D NBRR W/ 147.250 GAL FRAC FLUID & 250,200# SAND. 12/15/06
Tubing Size:2.375 in.Tubing Setting Depth:7050 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/8/2012Test Method:flowing
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 30
BBLS_OIL 27
BTU_GAS 1
CALC_BBLS_H2O 30
CALC_BBLS_OIL 27
CALC_MCF_GAS 304
CASING_PRESS 372
GRAVITY_OIL 64
MCF_GAS 304
Perforation Data:
Interval Top:6820 ft.# Of Holes:132
Interval Bottom:7126 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 4/16/2012                 Interval Top: 6820 ft.    Interval Bottom: 6934 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/26/2011
Treatment Summary:Frac’d 6820’-6836’, 6920’-6934’ w/ 182,404 gal frac fluid and 249,480# sand. CFP set @ 6990 on 11/26/11 and drilled out 1/3/12.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6820 ft.# Of Holes:60
Interval Bottom:6934 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/08/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
