COGIS - WELL SCOUT CARD

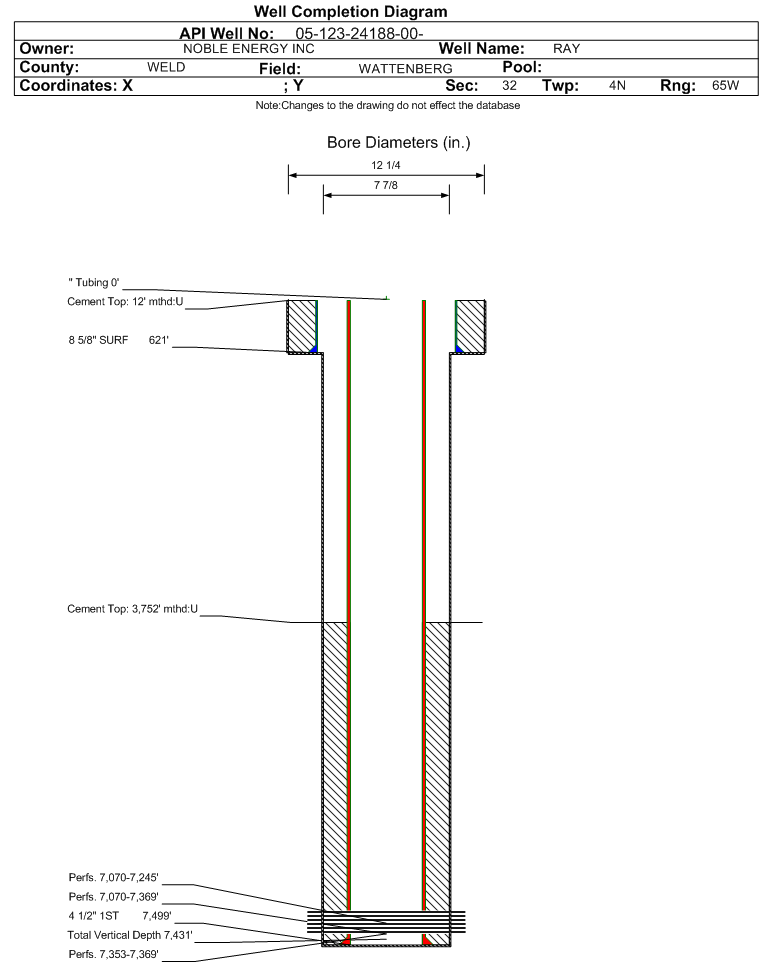

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24188		Well Classification: GW Status: PA - 11/13/2018
Well Name/No:RAY #23-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/13/2018
FacilityID:286415LocationID:332646
County:WELD #123Location:SWSE 32 4N65W 6
Field:WATTENBERG - #90750Elevation:4890 ft.
Basin:DENVER (DJ) BASIN
Planned Location:520FSL  2197 FELLat/Long: 40.263080 / -104.685570Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.262950 / -104.685550Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/13/2018             Measured TD: 7512 ft.    Vertical TD: 7431 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/13/2018
Wellbore PermitDIRECTIONAL
Permit #:20063253 Expiration Date:8/27/2007
Proposed Top PZ Location:Sec:32 Twp: 4N 65W Footage: 1128 FSL  2613 FEL
Bottom Hole Location:Sec:32 Twp: 4N 65W Footage: 1128 FSL  2613 FEL
Proposed Depth/Form:7521 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:10/9/2006
Spud Date:10/4/2006Spud Date Is:ACTUAL
Measured TD:7512 ft.Measured PB depth:7487 ft.
True Vertical TD:7431 ft.True Vertical PB depth:7406 ft.
Top PZ Location:Sec:32 Twp: 4N 65WFootage: 1128 FSL  2613 FEL
Bottom Hole Location:Sec:32 Twp: 4N 65WFootage: 1128 FSL  2613 FEL
Log Types:CBL, P/E AILC-CNLD-ML, MUD
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 12 ft., Depth: 621 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 470, Top: 12 ft., Bottom: 621 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 12 ft., Depth: 7499 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 445, Top: 3752 ft., Bottom: 7499 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3900 ft.NN
SUSSEX4480 ft.NN
NIOBRARA7070 ft.NN
FORT HAYS7330 ft.NN
CODELL7353 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 12/12/2006                Interval Top: 7353 ft.    Interval Bottom: 7369 ft.

 Completed Information for Formation CODELL
1st Production Date:11/7/2006Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/31/2006
Treatment Summary:151,191 GALS FLUID & 98,000 LBS 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7353 ft.# Of Holes:64
Interval Bottom:7369 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/13/2018                Interval Top: 7070 ft.    Interval Bottom: 7369 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/7/2006Choke Size:0.219 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/9/2006
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/12/2006Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 17
BTU_GAS 1217
CALC_BBLS_H2O 0
CALC_BBLS_OIL 17
CALC_GOR 17353
CALC_MCF_GAS 295
CASING_PRESS 500
GRAVITY_OIL 52
MCF_GAS 295
Perforation Data:
Interval Top:7070 ft.# Of Holes:180
Interval Bottom:7369 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 12/12/2006                Interval Top: 7070 ft.    Interval Bottom: 7245 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:11/7/2006Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/31/2006
Treatment Summary:170,646 GALS FLUID & 262,926 LBS 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7070 ft.# Of Holes:116
Interval Bottom:7245 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/13/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
