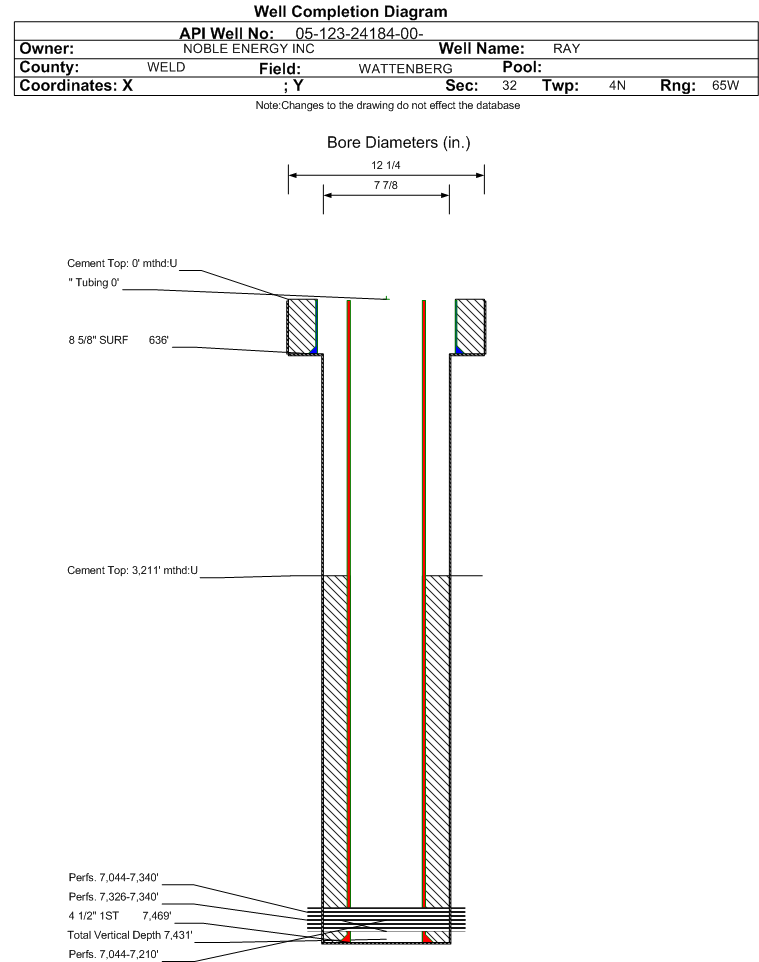

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24184		Well Classification: GW Status: PA - 11/13/2018
Well Name/No:RAY #36-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/13/2018
FacilityID:286391LocationID:332646
County:WELD #123Location:SWSE 32 4N65W 6
Field:WATTENBERG - #90750Elevation:4890 ft.
Basin:DENVER (DJ) BASIN
Planned Location:470FSL  2190 FELLat/Long: 40.262940 / -104.685560Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.263070 / -104.685590Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/13/2018             Measured TD: 7482 ft.    Vertical TD: 7431 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/13/2018
Wellbore PermitDIRECTIONAL
Permit #:20063252 Expiration Date:8/23/2007
Proposed Top PZ Location:Sec:32 Twp: 4N 65W Footage: 147 FSL  2614 FEL
Bottom Hole Location:Sec:32 Twp: 4N 65W Footage: 147 FSL  2614 FEL
Proposed Depth/Form:7447 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:10/15/2006
Spud Date:10/10/2006Spud Date Is:ACTUAL
Measured TD:7482 ft.Measured PB depth:7442 ft.
True Vertical TD:7431 ft.True Vertical PB depth:7391 ft.
Top PZ Location:Sec:32 Twp: 4N 65WFootage: 147 FSL  2614 FEL
Bottom Hole Location:Sec:32 Twp: 4N 65WFootage: 147 FSL  2614 FEL
Log Types:P/E AILC, CAL, CNLD, CBL/GR/CCL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 12 ft., Depth: 636 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 0 ft., Bottom: 636 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 12 ft., Depth: 7469 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 445, Top: 3211 ft., Bottom: 7469 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3880 ft.NN
SUSSEX4328 ft.NN
NIOBRARA7040 ft.NN
FORT HAYS7302 ft.NN
CODELL7324 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 9/17/2018                 Interval Top: 7326 ft.    Interval Bottom: 7340 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/23/2006
Treatment Summary:135,068 GALS FLUID & 94,038# 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7326 ft.# Of Holes:56
Interval Bottom:7340 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/13/2018                Interval Top: 7044 ft.    Interval Bottom: 7340 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/11/2010
Treatment Summary:NBRR Perf 7044-7210 Holes 110 Size 0.42 CODL Perf 7326-7340 Holes 56 Size 0.38 Refrac NBRR w/ 252 gal 15% HCl & 229,954 gal SW & 201,480# 40/70 sand & 4,280# 20/40 SB Excel. Refrac CODL w/ 165,858 gal SW & 115,960# 40/70 sand & 4,040# 20/40 SB Excel.
Formation Treatment
Treatment Date:10/15/2006
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 1
BTU_GAS 1217
CALC_BBLS_H2O 0
CALC_BBLS_OIL 1
CALC_GOR 399000
CALC_MCF_GAS 399
CASING_PRESS 1800
GRAVITY_OIL 40
MCF_GAS 399
Perforation Data:
Interval Top:7044 ft.# Of Holes:166
Interval Bottom:7340 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 9/17/2018                 Interval Top: 7044 ft.    Interval Bottom: 7210 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/23/2006
Treatment Summary:258,787 GALS FLUID & 179,494# 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7044 ft.# Of Holes:110
Interval Bottom:7210 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/13/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000
