Wellbore #00 Wellbore Classification: GW Status: SI - 6/1/2025 Measured TD: 7925 ft. Vertical TD: 7819 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 6/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062987 | Expiration Date: | 8/14/2007 | | Proposed Top PZ Location: | Sec:14 Twp: 4N 66W | Footage: 1322 FSL 51 FEL | | Bottom Hole Location: | Sec:14 Twp: 4N 66W | Footage: 1322 FSL 51 FEL | | Proposed Depth/Form: | 7930 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5175 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: , Bottom: 5175 ft. |
| | |

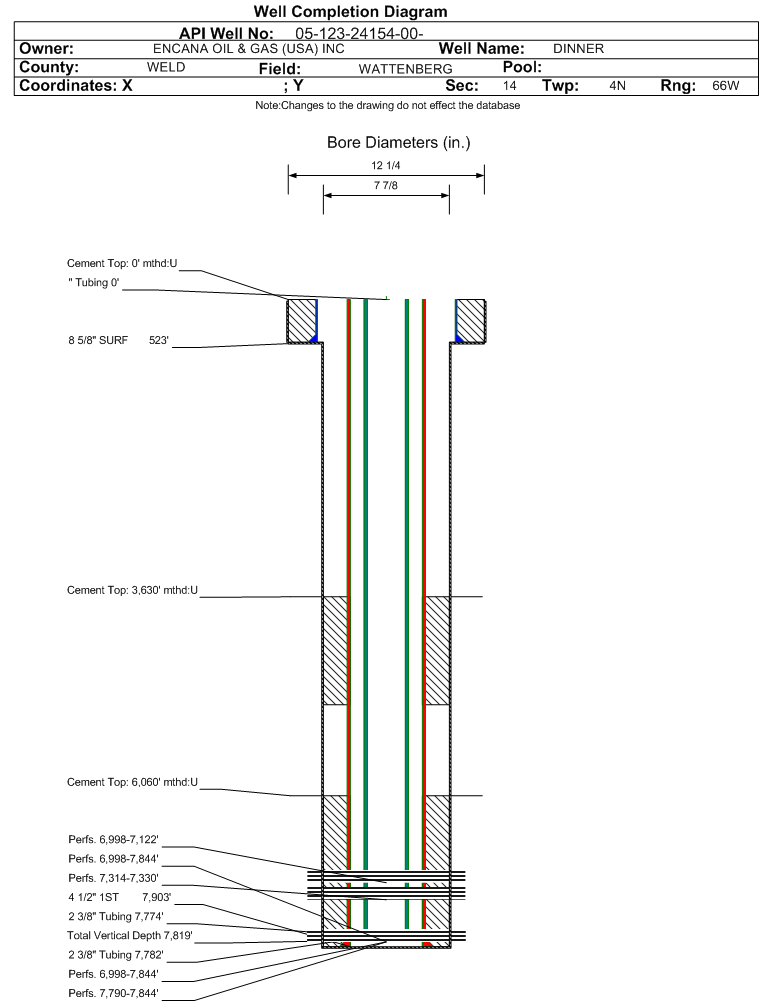

| Wellbore Completed | | Completion Date: | 2/13/2007 | | Spud Date: | 2/6/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7925 ft. | Measured PB depth: | 7873 ft. | | True Vertical TD: | 7819 ft. | True Vertical PB depth: | 7767 ft. | | Top PZ Location: | Sec:14 Twp: 4N 66W | Footage: 1322 FSL 51 FEL | | Bottom Hole Location: | Sec:14 Twp: 4N 66W | Footage: 1322 FSL 51 FEL | | Log Types: | CBL.DUAL IND/COMP.DENSITY/COMP.NEUTRON | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 523 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 310, Top: 0 ft., Bottom: 524 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7903 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 305, Top: 6060 ft., Bottom: 7903 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4986 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 305, Top: 3630 ft., Bottom: 4950 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4410 ft. | | N | N | | SHANNON | 4926 ft. | | N | N | | NIOBRARA | 6991 ft. | | N | N | | CODELL | 7314 ft. | | N | N | | J SAND | 7778 ft. | | N | N |
Formation JSND Formation Classification: GW Status: SI - 6/1/2025 Interval Top: 7790 ft. Interval Bottom: 7844 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/25/2007 | | Treatment Summary: | JSND COMPLETION. FRAC'D THE J SAND WITH 141,296 GAL FRAC 162,940# 20/40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | Perforation Data: | | Interval Top: | 7790 ft. | # Of Holes: | 88 | | Interval Bottom: | 7844 ft. | Hole Size: | |
|
Formation CODL Formation Classification: GW Status: CM - 7/31/2012 Interval Top: 7314 ft. Interval Bottom: 7330 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 3/21/2007 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 1/10/2012 | | Treatment Summary: | Codell Refrac
Frac Codell, 7314’ – 7330’ with 117,994 gal frac fluid and 250,470# sand. 01-10-12
|
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7314 ft. | # Of Holes: | 64 | | Interval Bottom: | 7330 ft. | Hole Size: | |
|
Formation JNBCD Formation Classification: GW Status: CM - 3/23/2007 Interval Top: 6998 ft. Interval Bottom: 7844 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | 0.313 in. | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/13/2007 | | Treatment Summary: | JSND-NBRR CDL COMMINGLED, DRILLED OUT CFP @ 7220' AND 7430' TO COMMINGLE THE JSND-NBRR-CDL. 3/20/07 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7782 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/23/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 57 | | BBLS_OIL | 10 | | BTU_GAS | 1180 | | CALC_BBLS_H2O | 57 | | CALC_BBLS_OIL | 10 | | CALC_GOR | 80400 | | CALC_MCF_GAS | 804 | | CASING_PRESS | 900 | | MCF_GAS | 804 | | TUBING_PRESS | 700 |
| | Perforation Data: | | Interval Top: | 6998 ft. | # Of Holes: | 220 | | Interval Bottom: | 7844 ft. | Hole Size: | 0.41 in. |
|
Formation NB-CD Formation Classification: GW Status: SI - 6/1/2025 Interval Top: 6998 ft. Interval Bottom: 7844 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 3/21/2007 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 2/27/2012 | | Treatment Summary: | CIBP set @ 7390’ on 01-10-12 to refrac the CD and NBRR. Plug was drilled out 02-27-12, tubing set and the J-Niobrara-Codell commingled.
| | Formation Treatment | | Treatment Date: | 2/25/2007 | | Treatment Summary: | NBRR-CDL RECOMPLETION SET CFP @ 7430' 02-25-07 FRAC'D THE CODELL WITH 142,842 GAL FRAC FLUID AND 250,480# 20/40 SAND 02-25-07 SET CFP @ 7220' 02-25-07 FRAC'D THE NIOBRARA WITH 161,784 GAL FRAC FLUID AND 325,688# 20/40 SAND 02-25-07 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7774 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | Flow | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 18 | | BBLS_OIL | 25 | | BTU_GAS | 1 | | CALC_BBLS_H2O | 18 | | CALC_BBLS_OIL | 25 | | CALC_GOR | 9800 | | CALC_MCF_GAS | 245 | | CASING_PRESS | 510 | | GRAVITY_OIL | 63 | | MCF_GAS | 245 | | TUBING_PRESS | 232 |
| | Perforation Data: | | Interval Top: | 6998 ft. | # Of Holes: | 220 | | Interval Bottom: | 7844 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: GW Status: CM - 7/31/2012 Interval Top: 6998 ft. Interval Bottom: 7122 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/21/2007 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 1/22/2012 | | Treatment Summary: | Niobrara Refrac
Frac Niobrara 6998’ - 7122’ with 133,937 gal frac fluid and 250,130 # sand. 01-22-12
|
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6998 ft. | # Of Holes: | 68 | | Interval Bottom: | 7122 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 150 |
| Total Gas Produced (MCF) | 3614 |
| GOR | 24093 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.142 |
| Average MCFE per Day | 12.425 |
