COGIS - WELL SCOUT CARD

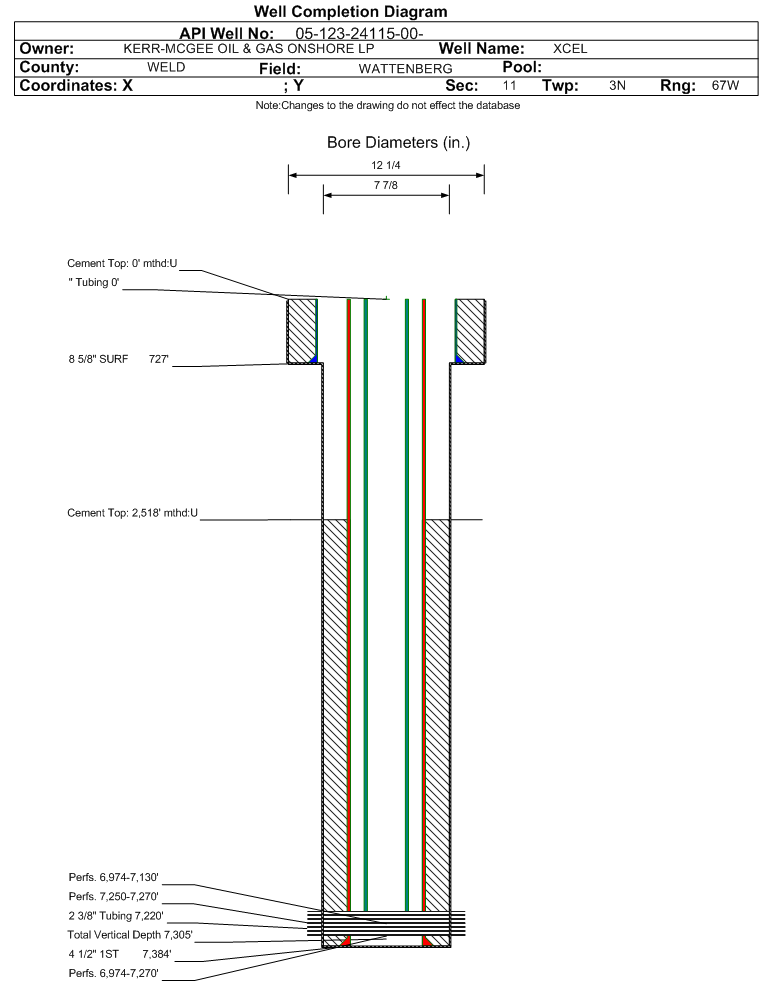

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24115		Well Classification: OW Status: PA - 12/4/2021
Well Name/No:XCEL #23-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/4/2021
FacilityID:286090LocationID:336677
County:WELD #123Location:NWSE 11 3N67W 6
Field:WATTENBERG - #90750Elevation:4770 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1983FSL  2051 FELLat/Long: 40.237920 / -104.856280Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.237900 / -104.856280Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 9/7/2011
End Date: 9/7/2011
Reported: 10/7/2011
Prior to rule 205A.b.(2)(A)
Days to report: 30
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 12/4/2021             Measured TD: 7412 ft.    Vertical TD: 7305 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 12/4/2021
Wellbore PermitDIRECTIONAL
Permit #:20063276 Expiration Date:8/8/2007
Proposed Top PZ Location:Sec:11 Twp: 3N 67W Footage: 1218 FSL  2558 FEL
Bottom Hole Location:Sec:11 Twp: 3N 67W Footage: 1218 FSL  2558 FEL
Proposed Depth/Form:7371 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 318A , Unit Acreage: 160, Drill Unit: E2SW4
Wellbore Completed
Completion Date:8/26/2006
Spud Date:8/14/2006Spud Date Is:ACTUAL
Measured TD:7412 ft.Measured PB depth:7369 ft.
True Vertical TD:7305 ft.True Vertical PB depth:7262 ft.
Top PZ Location:Sec:11 Twp: 3N 67WFootage: 1218 FSL  2558 FEL
Bottom Hole Location:Sec:11 Twp: 3N 67WFootage: 1218 FSL  2558 FEL
Log Types:CNLD, PEML, CBL, AILC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 727 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 310, Top: 0 ft., Bottom: 727 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7384 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 580, Top: 2518 ft., Bottom: 7384 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3720 ft.NN
SUSSEX4160 ft.NN
SHANNON4729 ft.NN
NIOBRARA6948 ft.NN
FORT HAYS7227 ft.NN
CODELL7250 ft.NN
CARLILE7270 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 9/27/2011                 Interval Top: 7250 ft.    Interval Bottom: 7270 ft.

 Completed Information for Formation CODELL
1st Production Date:10/4/2006Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/11/2006
Treatment Summary:110,058 GALS FLUID & 205,800# 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7250 ft.# Of Holes:60
Interval Bottom:7270 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 10/6/2021                 Interval Top: 6974 ft.    Interval Bottom: 7270 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/4/2006Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/7/2011
Treatment Summary:Re-Frac Codell down 4-1/2" Csg w/ 258,216 gal Slickwater w/ 208,040# 40/70, 4,000# SB Excel, 0# .
Formation Treatment
Treatment Date:8/26/2006
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7220 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/24/2011Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 4
BTU_GAS 1188
CALC_BBLS_H2O 0
CALC_BBLS_OIL 4
CALC_GOR 8250
CALC_MCF_GAS 33
CASING_PRESS 1304
GRAVITY_OIL 52
MCF_GAS 33
TUBING_PRESS 1185
Perforation Data:
Interval Top:6974 ft.# Of Holes:170
Interval Bottom:7270 ft.Hole Size:0.41 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 9/27/2011                 Interval Top: 6974 ft.    Interval Bottom: 7130 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/4/2006Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/11/2006
Treatment Summary:172,312 GALS FLUID & 250,660# 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6974 ft.# Of Holes:110
Interval Bottom:7130 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/04/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
