COGIS - WELL SCOUT CARD

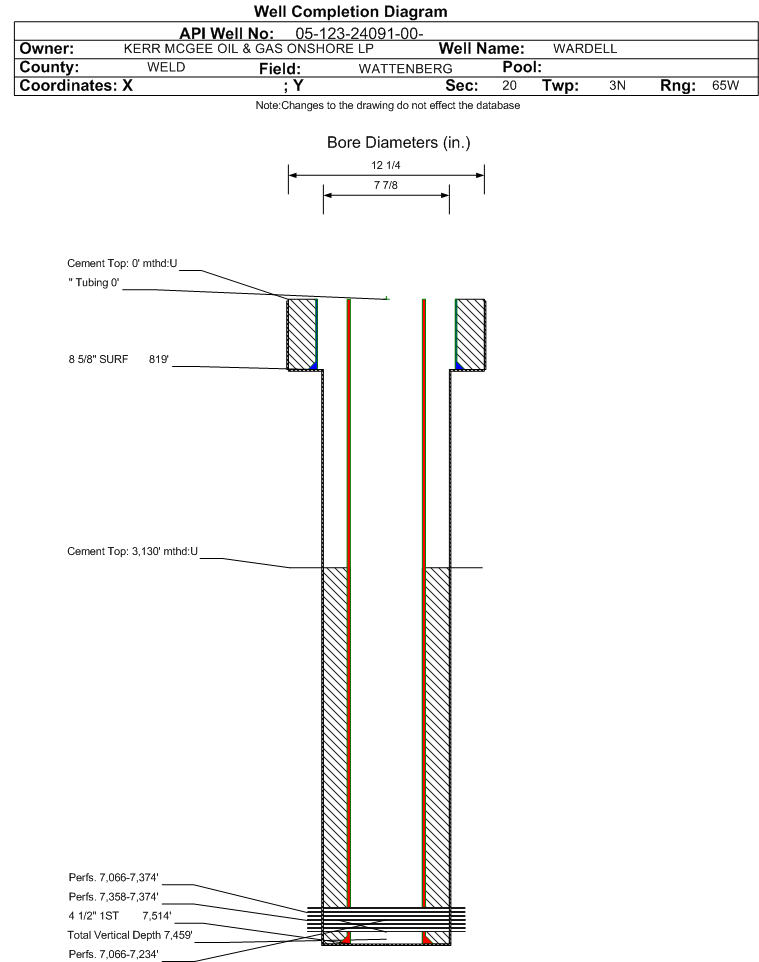

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-24091		Well Classification: GW Status: PA - 9/12/2023
Well Name/No:WARDELL #29-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/12/2023
FacilityID:285955LocationID:336102
County:WELD #123Location:SWSW 20 3N65W 6
Field:WATTENBERG - #90750Elevation:4912 ft.
Planned Location:566FSL  860 FWLLat/Long: 40.205280 / -104.693720Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.205171 / -104.693718Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 9/12/2023             Measured TD: 7525 ft.    Vertical TD: 7459 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 9/12/2023
Wellbore PermitDIRECTIONAL
Permit #:20080716 Expiration Date:4/24/2009
Proposed Top PZ Location:Sec:29 Twp: 3N 65W Footage: 52 FNL  1259 FWL
Bottom Hole Location:Sec:29 Twp: 3N 65W Footage: 52 FNL  1259 FWL
Proposed Depth/Form:7481 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:N/A
Spud Date:7/1/2008Spud Date Is:ACTUAL
Measured TD:7525 ft.Measured PB depth:7496 ft.
True Vertical TD:7459 ft.True Vertical PB depth:7430 ft.
Top PZ Location:Sec:29 Twp: 3N 65WFootage: 52 FNL  1259 FWL
Bottom Hole Location:Sec:29 Twp: 3N 65WFootage: 52 FNL  1259 FWL
Log Types:CBL, CDL/CNL/ML, DIL/GL/GR
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 819 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 819 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7514 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 555, Top: 3140 ft., Bottom: 7514 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7514 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 170, Top: 524 ft., Bottom: 1570 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3940 ft.4128 ft.NN
SUSSEX4363 ft.4658 ft.NN
NIOBRARA7057 ft.NN
FORT HAYS7333 ft.NN
CODELL7356 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/30/2008                Interval Top: 7358 ft.    Interval Bottom: 7374 ft.

 Completed Information for Formation CODELL
1st Production Date:10/28/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/23/2008
Treatment Summary:199,000 GALS FLUID & 111,000# 40/70 SAND & 4000# 20/40 R/C SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7358 ft.# Of Holes:64
Interval Bottom:7374 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 9/12/2023                 Interval Top: 7066 ft.    Interval Bottom: 7374 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/28/2008Choke Size:0.219 in.
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/5/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/30/2008Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1238
CALC_BBLS_H2O 0
CALC_BBLS_OIL 49
CALC_GOR 12367
CALC_MCF_GAS 606
CASING_PRESS 850
GRAVITY_OIL 51
Perforation Data:
Interval Top:7066 ft.# Of Holes:184
Interval Bottom:7374 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/30/2008                Interval Top: 7066 ft.    Interval Bottom: 7234 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/28/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/23/2008
Treatment Summary:341,000 GALS FLUID & 257,000# 40/70 SAND & 8000# 20/40 R/C SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7066 ft.# Of Holes:120
Interval Bottom:7234 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/12/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
