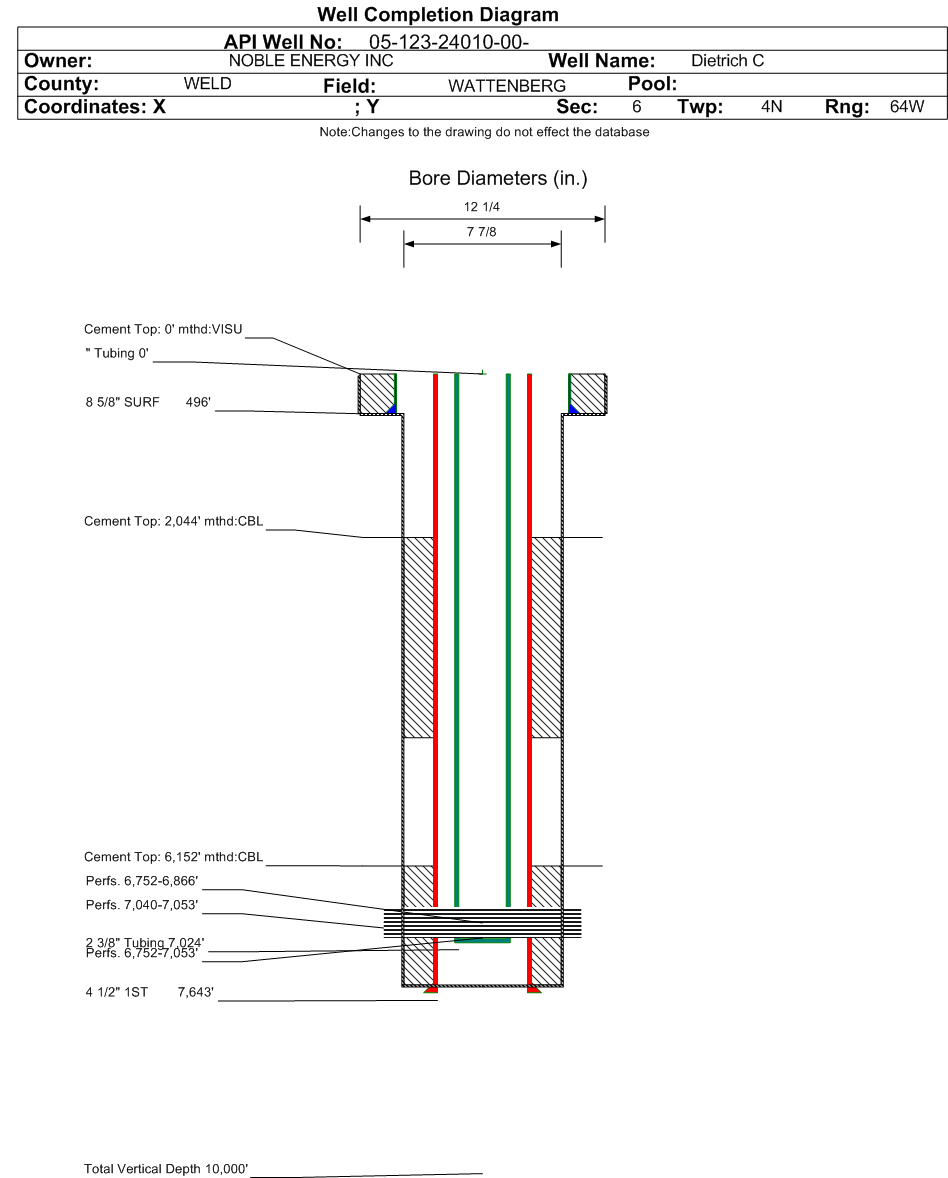

Wellbore #00 Wellbore Classification: GW Status: PA - 8/6/2019 Measured TD: 7667 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 8/6/2019 | | Wellbore Permit | DRIFTED | | Permit #: | | Expiration Date: | 6/28/2013 | | Proposed Depth/Form: | 7667 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: SE4 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: E/2 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: SE4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 496 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 350, Top: 0 ft., Bottom: 496 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7643 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 240, Top: 6152 ft., Bottom: 7643 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5054 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 920, Top: 2050 ft., Bottom: 5054 ft. |
| | |
| Wellbore Completed | | Completion Date: | 8/14/2006 | | Spud Date: | 8/10/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7667 ft. | Measured PB depth: | 7627 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | GR/CBL/CCL,DIL/GR,CDL/CNL/ML | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 496 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 0 ft., Bottom: 496 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7643 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 240, Top: 6152 ft., Bottom: 7643 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5060 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 920, Top: 2044 ft., Bottom: 4550 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3695 ft. | | N | N | | SUSSEX | 4337 ft. | | N | N | | NIOBRARA | 6750 ft. | | N | N | | FORT HAYS | 7015 ft. | | N | N | | CODELL | 7039 ft. | | N | N | | J SAND | 7508 ft. | | N | N |
Formation CODL Formation Classification: GW Status: CM - 6/7/2011 Interval Top: 7040 ft. Interval Bottom: 7053 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 9/10/2006 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/8/2006 | | Treatment Summary: | FRAC CODELL W/128,100 GALS SILVERSTIM W/34# GEL LOADING AND 270,040# IF 20/40 OTTAWA SAND. CODELL PRODUCING THROUGH FLOW PLUG. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7040 ft. | # Of Holes: | 52 | | Interval Bottom: | 7053 ft. | Hole Size: | 0.42 in. |
|
Formation NB-CD Formation Classification: GW Status: AB - 8/6/2019 Interval Top: 6752 ft. Interval Bottom: 7053 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 11/9/2009 | Choke Size: | 0.469 in. | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/21/2009 | | Treatment Summary: | CODL PERFS 7040-7053. RE-FRAC'D CODL W/ 132,499 GALS SLICKWATER & VISTAR 26, 27, & 28; WITH 245,040# OTTAWA SAND. COMMINGLE NBRR & CODL. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7024 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/13/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BBLS_OIL | 10 | | BTU_GAS | 1283 | | CALC_BBLS_H2O | 3 | | CALC_BBLS_OIL | 10 | | CALC_GOR | 8200 | | CALC_MCF_GAS | 82 | | CASING_PRESS | 500 | | GRAVITY_OIL | 59 | | MCF_GAS | 82 | | TUBING_PRESS | 450 |
| | Perforation Data: | | Interval Top: | 6752 ft. | # Of Holes: | 232 | | Interval Bottom: | 7053 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: GW Status: CM - 6/7/2011 Interval Top: 6752 ft. Interval Bottom: 6866 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/21/2009 | | Treatment Summary: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6752 ft. | # Of Holes: | 180 | | Interval Bottom: | 6866 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 08/06/2019 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
