COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-23888		Well Classification: GW Status: PA - 10/3/2024
Well Name/No:LINDSAY C #33-18
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/3/2024
FacilityID:284864LocationID:336593
County:WELD #123Location:SWNE 33 4N64W 6
Field:WATTENBERG - #90750Elevation:4725 ft.
Planned Location:1916FNL  1961 FELLat/Long: 40.270970 / -104.553580Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.270970 / -104.553580Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

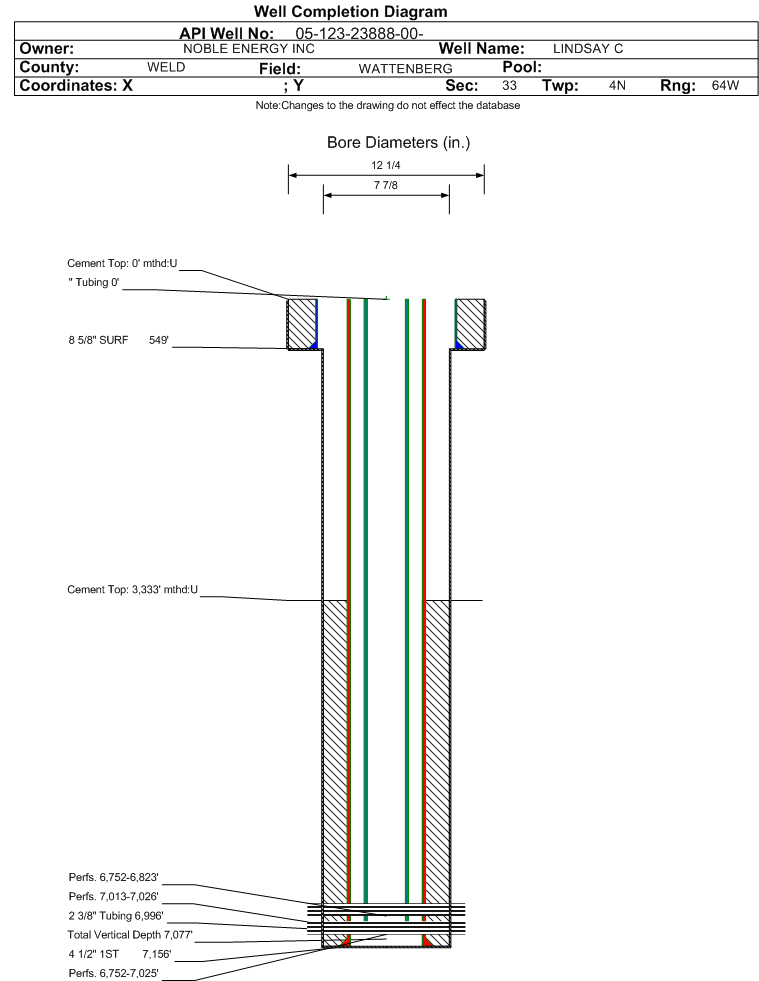

Wellbore #00             Wellbore Classification: GW             Status: AB - 10/3/2024             Measured TD: 7177 ft.    Vertical TD: 7077 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 10/3/2024
Wellbore PermitDIRECTIONAL
Permit #:20061253 Expiration Date:5/24/2007
Proposed Top PZ Location:Sec:33 Twp: 4N 64W Footage: 1315 FNL  2608 FWL
Bottom Hole Location:Sec:33 Twp: 4N 64W Footage: 1315 FNL  2608 FWL
Proposed Depth/Form:7250 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407,318 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407,318 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:8/16/2006
Spud Date:8/12/2006Spud Date Is:ACTUAL
Measured TD:7177 ft.Measured PB depth:7155 ft.
True Vertical TD:7077 ft.True Vertical PB depth:7055 ft.
Top PZ Location:Sec:33 Twp: 4N 64WFootage: 1315 FNL  2608 FWL
Bottom Hole Location:Sec:33 Twp: 4N 64WFootage: 1315 FNL  2608 FWL
Log Types:GR/CCL/CBL, DIL/GR, CDL/CNL/ML
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 549 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 385, Top: 0 ft., Bottom: 549 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7156 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 580, Top: 3333 ft., Bottom: 7156 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3770 ft.NN
SUSSEX4298 ft.NN
SHANNON5035 ft.NN
NIOBRARA6745 ft.NN
FORT HAYS6989 ft.NN
CODELL7011 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 8/11/2022                 Interval Top: 7013 ft.    Interval Bottom: 7025 ft.

 Completed Information for Formation CODELL
1st Production Date:9/14/2006Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/12/2006
Treatment Summary:FRAC'D CODL W/128,058 GALS OF SILVERSTIM WITH 32# GEL LOADINGS AND 271,440#'S OF 20/40 OTTAWA SAND. CODL PRODUCING THROUGH FRAC PLUG.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7013 ft.# Of Holes:48
Interval Bottom:7025 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/3/2024                 Interval Top: 6752 ft.    Interval Bottom: 7025 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:9/14/2006Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/19/2009
Treatment Summary:CODL PERFS 7013-7025./ RE-FRAC CODL W/ 130,326 GALS VISTAR W/ 245,098# OTTAWA SAND. COMMINGLE NBRR & CODL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 7
BTU_GAS 1310
CALC_BBLS_H2O 5
CALC_BBLS_OIL 7
CALC_GOR 14857
CALC_MCF_GAS 104
CASING_PRESS 740
GRAVITY_OIL 60
MCF_GAS 104
TUBING_PRESS 190
Perforation Data:
Interval Top:6752 ft.# Of Holes:216
Interval Bottom:7025 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 8/11/2022                 Interval Top: 6752 ft.    Interval Bottom: 6823 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:9/14/2006Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/19/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6752 ft.# Of Holes:168
Interval Bottom:6823 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/03/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
