COGIS - WELL SCOUT CARD

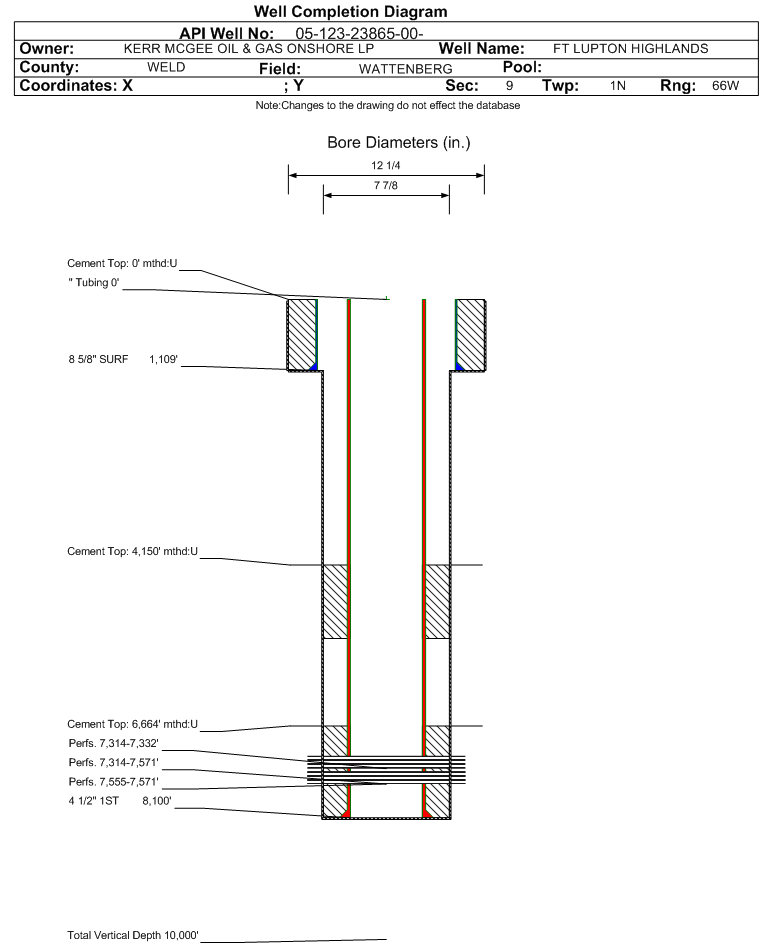

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-23865		Well Classification: GW Status: PA - 10/27/2016
Well Name/No:FT LUPTON HIGHLANDS #42-9
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/27/2016
FacilityID:284708LocationID:306022
County:WELD #123Location:SENE 9 1N66W 6
Field:WATTENBERG - #90750Elevation:5032 ft.
Planned Location:1793FNL  840 FELLat/Long: 40.068100 / -104.775770Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.068110 / -104.775780Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/27/2016             Measured TD: 8115 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/27/2016
Wellbore PermitDRIFTED
Permit #:20061161 Expiration Date:5/9/2007
Proposed Depth/Form:8150 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2NE
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:5/18/2006
Spud Date:5/14/2006Spud Date Is:ACTUAL
Measured TD:8115 ft.Measured PB depth:8083 ft.
True Vertical TD:True Vertical PB depth:
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1109 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 770, Top: 0 ft., Bottom: 1109 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8100 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 6664 ft., Bottom: 8100 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5298 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 4150 ft., Bottom: 5298 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5298 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 4150 ft., Bottom: 5298 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4254 ft.NN
SUSSEX4710 ft.NN
NIOBRARA7258 ft.NN
FORT HAYS7532 ft.NN
CODELL7554 ft.NN
J SAND7980 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 10/28/2008                Interval Top: 7555 ft.    Interval Bottom: 7571 ft.

 Completed Information for Formation CODELL
1st Production Date:7/1/2006Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/29/2006
Treatment Summary:FRAC'D CODELL W/ 127,680 GALS OF SILVERSTIM W/ 28# GEL LOADINGS & 271,260# OF 20/40 OTTAWA SAND. CODELL PRODUCING THROUGH FRAC PLUG.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7555 ft.# Of Holes:64
Interval Bottom:7571 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/27/2016                Interval Top: 7314 ft.    Interval Bottom: 7571 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/1/2006Choke Size:0.125 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/29/2006
Treatment Summary:COMMINGLE CODELL AND NIOBRARA
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/11/2006Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 50
BBLS_OIL 25
CALC_GOR 5240
CASING_PRESS 875
MCF_GAS 131
Perforation Data:
Interval Top:7314 ft.# Of Holes:172
Interval Bottom:7571 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 10/28/2008                Interval Top: 7314 ft.    Interval Bottom: 7332 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/1/2006Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/29/2006
Treatment Summary:FRAC'D NIOBRARA W/ 70,056 GALS OF SLICKWATER, 99,456 GALS OF SILVERSTIM W/28# GEL LOADING & 247,929# OF PROPPANT, 237,929# 30/50 SAND & 12,000# 12/20 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7314 ft.# Of Holes:108
Interval Bottom:7332 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/27/2016
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
