Wellbore #00 Wellbore Classification: GW Status: PA - 11/12/2019 Measured TD: 8640 ft. Vertical TD: 8448 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 11/12/2019 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20060923 | Expiration Date: | 4/18/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1984 FSL 660 FEL | | Bottom Hole Location: | Sec:32 Twp: 1N 67W | Footage: 1984 FSL 660 FEL | | Proposed Depth/Form: | 8621 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-1 , Unit Acreage: 320, Drill Unit: S2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 408.87 , Unit Acreage: 80, Drill Unit: W2SE |
| | |

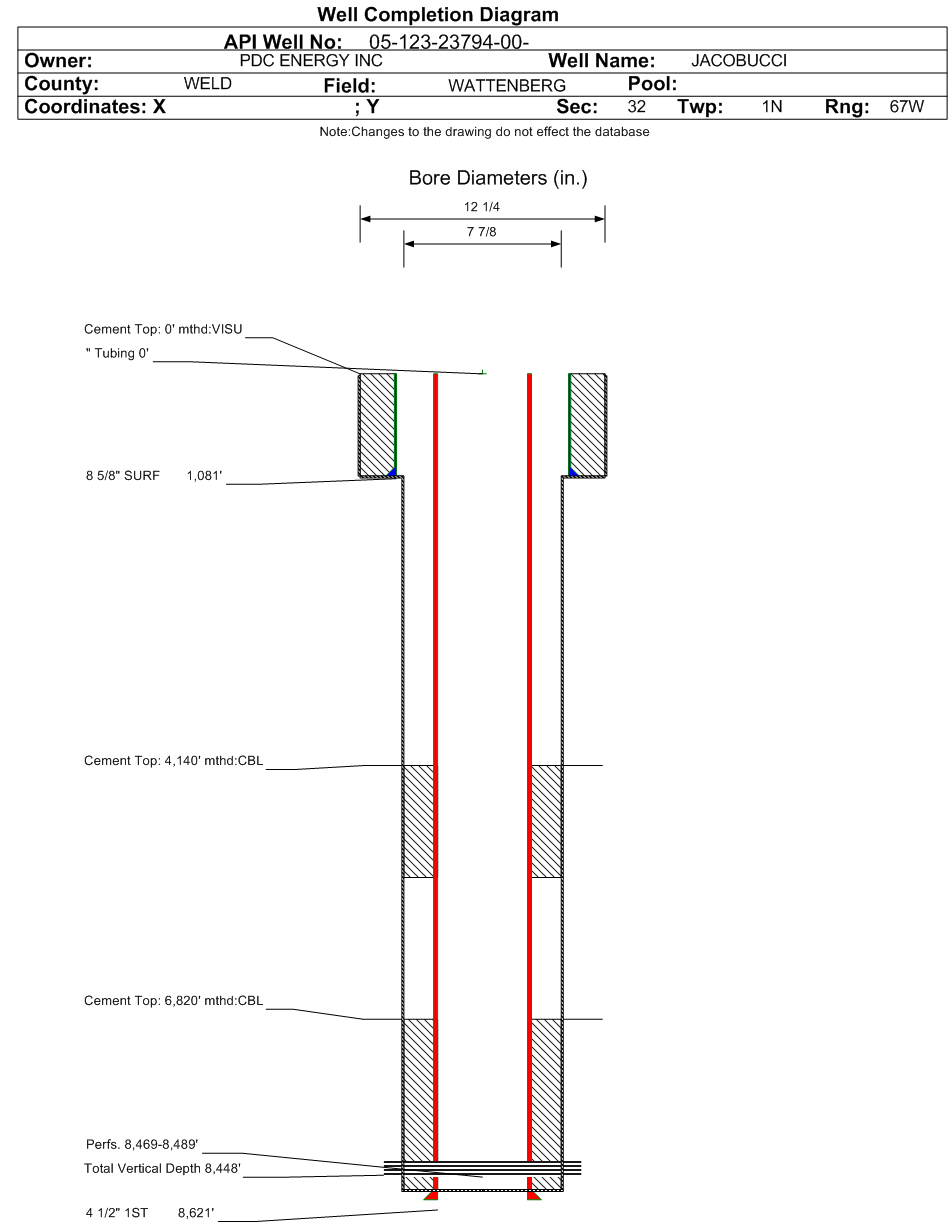

| Wellbore Completed | | Completion Date: | 6/5/2006 | | Spud Date: | 5/27/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8640 ft. | Measured PB depth: | 8619 ft. | | True Vertical TD: | 8448 ft. | True Vertical PB depth: | 8427 ft. | | Top PZ Location: | Sec:32 Twp: 1N 67W | Footage: 1993 FSL 659 FEL | | Bottom Hole Location: | Sec:32 Twp: 1N 67W | Footage: 1993 FSL 659 FEL | | Log Types: | GR / CBL/ CCL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1081 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 785, Top: 0 ft., Bottom: 1081 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8621 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 6820 ft., Bottom: 8621 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5324 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 266, Top: 4140 ft., Bottom: 5324 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5324 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 266, Top: 4140 ft., Bottom: 5324 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4840 ft. | | N | N | | NIOBRARA | 7584 ft. | | N | N | | CODELL | 7890 ft. | | N | N | | J SAND | 8465 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 11/12/2019 Interval Top: 8469 ft. Interval Bottom: 8489 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J SAND | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/19/2006 | | Treatment Summary: | FRAC W/169,091 GALS FRAC FLUID + 228,000# 30/50 SAND & 12,000# ACFRAC 12/20 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BBLS_OIL | 6 | | CALC_GOR | 50500 | | CASING_PRESS | 300 | | MCF_GAS | 303 | | TUBING_PRESS | 160 |
| | Perforation Data: | | Interval Top: | 8469 ft. | # Of Holes: | 120 | | Interval Bottom: | 8489 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 11/12/2019 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
