Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2023 Measured TD: 7911 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2023 | | Wellbore Permit | | | Permit #: | 20060887 | Expiration Date: | 4/10/2007 | | Proposed Top PZ Location: | Sec:24 Twp: 4N 66W | Footage: 1915 FSL 989 FWL | | Bottom Hole Location: | Sec:24 Twp: 4N 66W | Footage: 1915 FSL 989 FWL | | Proposed Depth/Form: | 7834 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: SW/4 | | Formation And Spacing: | Code: GRNHN , Formation: GREENHORN , Order: , Unit Acreage: 160, Drill Unit: SW/4 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: S2 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: SW4 | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5000 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: 4000 ft., Bottom: 5000 ft. |
| | |

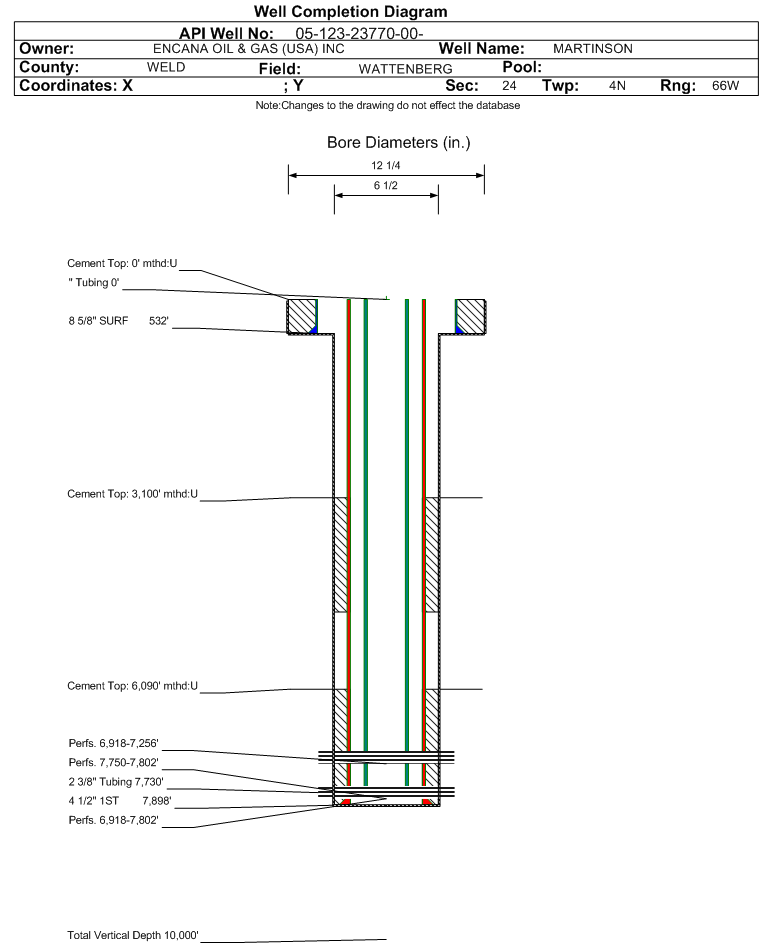

| Wellbore Completed | | Completion Date: | 3/15/2007 | | Spud Date: | 2/28/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7911 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Top PZ Location: | Sec:24 Twp: 4N 66W | Footage: 1915 FSL 989 FWL | | Bottom Hole Location: | Sec:24 Twp: 4N 66W | Footage: 1915 FSL 989 FWL | | Log Types: | CBL, DUAL IN/COMPENSATED DENSITY.COMP.NEUTRON | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 532 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 290, Top: 0 ft., Bottom: 532 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 6.5 in., Size: 4.5 in., Top: 0 ft., Depth: 7898 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 185, Top: 6090 ft., Bottom: 7898 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4886 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 165, Top: 3100 ft., Bottom: 4886 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4450 ft. | | N | N | | SHANNON | 4790 ft. | | N | N | | NIOBRARA | 6920 ft. | | N | N | | CODELL | 7222 ft. | | N | N | | J SAND | 7690 ft. | | N | N |
Formation JSND Formation Classification: GW Status: PR - 6/1/2023 Interval Top: 7750 ft. Interval Bottom: 7802 ft.| Completed Information for Formation J SAND | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/19/2007 | | Treatment Summary: | JSND COMPLETION FRAC'D THE JSAND W/ 12,000# 12/20 SB EXCEL, 250,560# SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | Perforation Data: | | Interval Top: | 7750 ft. | # Of Holes: | 40 | | Interval Bottom: | 7802 ft. | Hole Size: | 0.41 in. |
|
Formation JNBCD Formation Classification: GW Status: CM - 3/24/2007 Interval Top: 6918 ft. Interval Bottom: 7802 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/19/2007 | | Treatment Summary: | J-NB-CD PRODUCTION TUBING INF. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7730 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/24/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 87 | | BBLS_OIL | 55 | | BTU_GAS | 1162 | | CALC_GOR | 18000 | | CASING_PRESS | 4230 | | GRAVITY_OIL | 61 | | MCF_GAS | 990 |
| | Perforation Data: | | Interval Top: | 6918 ft. | # Of Holes: | 172 | | Interval Bottom: | 7802 ft. | Hole Size: | 0.41 in. |
|
Formation NB-CD Formation Classification: GW Status: PR - 6/1/2023 Interval Top: 6918 ft. Interval Bottom: 7256 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/19/2007 | | Treatment Summary: | NBRR-CDL RECOMPLETION SET CFP @ 7350 03/19/07 FRAC'D THE CODELL W/ 250,140# 30/50 SAND 03/19/07 SET CFP @ 7130' 03/19/07 FRAC'D THE NIOBRARA W/ 250,440# 30/50 SAND, 170,080 GAL FRAC FLUID |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 6918 ft. | # Of Holes: | 132 | | Interval Bottom: | 7256 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 340 |
| Total Gas Produced (MCF) | 18452 |
| GOR | 54270 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.627 |
| Average MCFE per Day | 55.853 |
