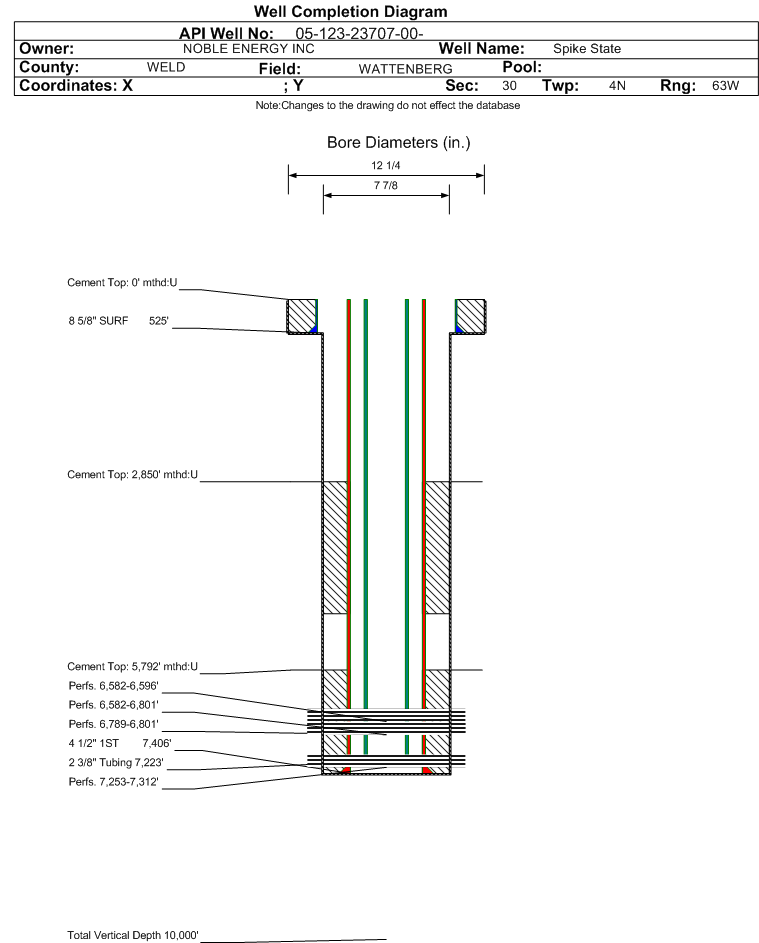

Wellbore #00 Wellbore Classification: OW Status: TA - 2/1/2022 Measured TD: 7421 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW TA - 2/1/2022 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 5/16/2013 | | Proposed Depth/Form: | 7421 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | STATE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: NW4 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: W/2 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: NW4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 525 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 370, Top: 0 ft., Bottom: 525 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7406 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 230, Top: 5792 ft., Bottom: 7406 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4910 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 540, Top: 2850 ft., Bottom: 4910 ft. |
| | |
| Wellbore Completed | | Completion Date: | 7/29/2006 | | Spud Date: | 7/26/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7421 ft. | Measured PB depth: | 7389 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | GR/CCL/CBL, CDL/CNL/ML, DIL/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 7.875 in., Top: 0 ft., Depth: 525 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 370, Top: 10 ft., Bottom: 525 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.625 in., Size: 4.5 in., Top: 0 ft., Depth: 7407 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 5842 ft., Bottom: 7407 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7407 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 540, Top: 2862 ft., Bottom: 4878 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3640 ft. | | N | N | | SUSSEX | 4150 ft. | | N | N | | NIOBRARA | 6532 ft. | | N | N | | FORT HAYS | 6764 ft. | | N | N | | CODELL | 6788 ft. | | N | N | | J SAND | 7254 ft. | | N | N |
Formation JSND Formation Classification: OG Status: TA - 11/1/2021 Interval Top: 7253 ft. Interval Bottom: 7312 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 10/20/2011 | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | Perforation Data: | | Interval Top: | 7253 ft. | # Of Holes: | 12 | | Interval Bottom: | 7312 ft. | Hole Size: | 0.41 in. |
|
Formation CODL Formation Classification: OG Status: CM - 6/29/2021 Interval Top: 6789 ft. Interval Bottom: 6801 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 9/28/2006 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/26/2006 | | Treatment Summary: | FRAC'D CODELL W/127,380 GALS OF SILVERSTIM W/32# GEL LOADING & 271,020# 20/40 OTTAWA SAND. CODELL PRODUCING THROUGH FRAC PLUG @6650. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 6789 ft. | # Of Holes: | 72 | | Interval Bottom: | 6801 ft. | Hole Size: | 0.42 in. |
|
Formation NB-CD Formation Classification: OG Status: TA - 2/1/2022 Interval Top: 6582 ft. Interval Bottom: 6801 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 9/28/2006 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/26/2006 | | Treatment Summary: | COMMINGLE CODELL & NIOBRARA |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 8 | | BBLS_OIL | 57 | | BTU_GAS | 1292 | | CALC_GOR | 4614 | | CASING_PRESS | 360 | | MCF_GAS | 263 |
| | Perforation Data: | | Interval Top: | 6582 ft. | # Of Holes: | 156 | | Interval Bottom: | 6801 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: OG Status: CM - 6/29/2021 Interval Top: 6582 ft. Interval Bottom: 6596 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 9/28/2006 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/26/2006 | | Treatment Summary: | FRACD NBRR W/70,098 GALS SLICKWATER, 100,128 GALS OF SILVERSTIM W/28# GEL LOADING & 250,120# OF PROPPANT. 238,120# 30/50 SAND & 12,000# 12/20 SB EXCEL. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6582 ft. | # Of Holes: | 84 | | Interval Bottom: | 6596 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (TA) | Y | Last Production
10/31/2020 |
| Low Producing | Y | Production Period
01/2025 - 12/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
